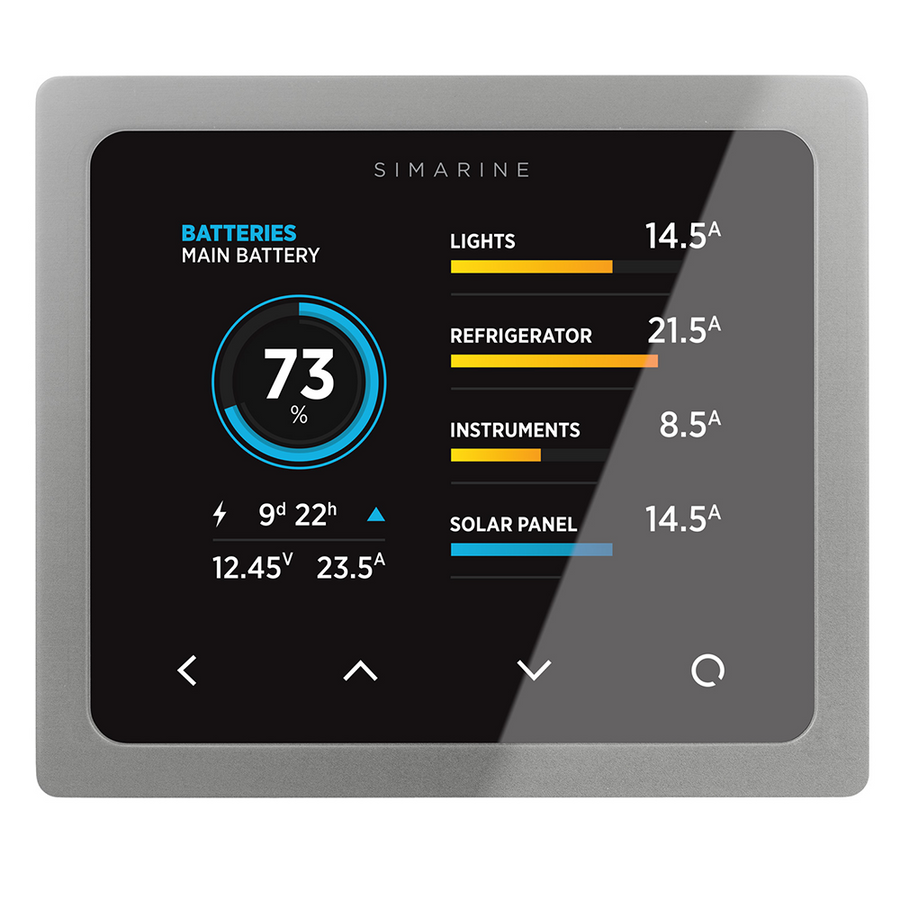

Simarine PICO Battery Monitor - with silver frame

PICO Battery Monitor silver with mounting frame

PICO one is SIMARINE's new entry-level battery monitor with Real-Time Battery Health™ algorithm for precise battery condition measurements.

Paired with a compatible SC302T combi shunt, it is the perfect battery monitoring solution for boats and caravans with one service battery bank up to 300 A at 12 V, 24 V, 48 V, 60 V, and 72 V, one or two engine/reserve battery banks, and up to 2 tanks.

The PICO one display unit features an elegant anodized aluminum casing and thick Gorilla® glass with anti-reflective coating to protect the high-contrast 3.5“ LCD information processing display with Optical Bonding. It is water and dust resistant and can be mounted indoors and outdoors. Screen brightness is automatically adjusted by a light sensor. The device is operated via four waterproof CapSense® touch buttons.

The barograph records precise air pressure values and creates trends and histories.

SIMARINE's entry-level battery monitor, suitable for smaller boats and recreational vehicles. It can connect:

• 1 battery bank
• 2 additional battery voltages
• 2 tank levels (for temperature monitoring).

Free SIMARINE apps for Android and iOS are available to connect your PICO one to your smartphone via Wi-Fi. With the apps, you can monitor all battery and tank data, upload history, edit and restore settings, and even update the firmware to add new functions.

Its expandable architecture allows adding up to 20 SIMARINE shunts and modules to monitor all types of boats, yachts and caravans – from small to superyacht systems with:

• up to 6 battery banks,
• 14 tanks
• 20 independent consumers and generators.

Documents & Downloads

• Manual
