Simarine PICO Battery Monitor - without silver frame

PICO Battery Monitor silver

PICO one is the new entry-level battery monitor from SIMARINE featuring Real-Time Battery Health™ algorithm for precise battery health measurements.

Paired with a compatible shunt SC302T, it is the perfect battery monitoring solution for boats and caravans with one service battery bank up to 300 A at 12 V, 24 V, 48 V, 60 V and 72 V, one or two engine/auxiliary battery banks and up to 2 tanks.

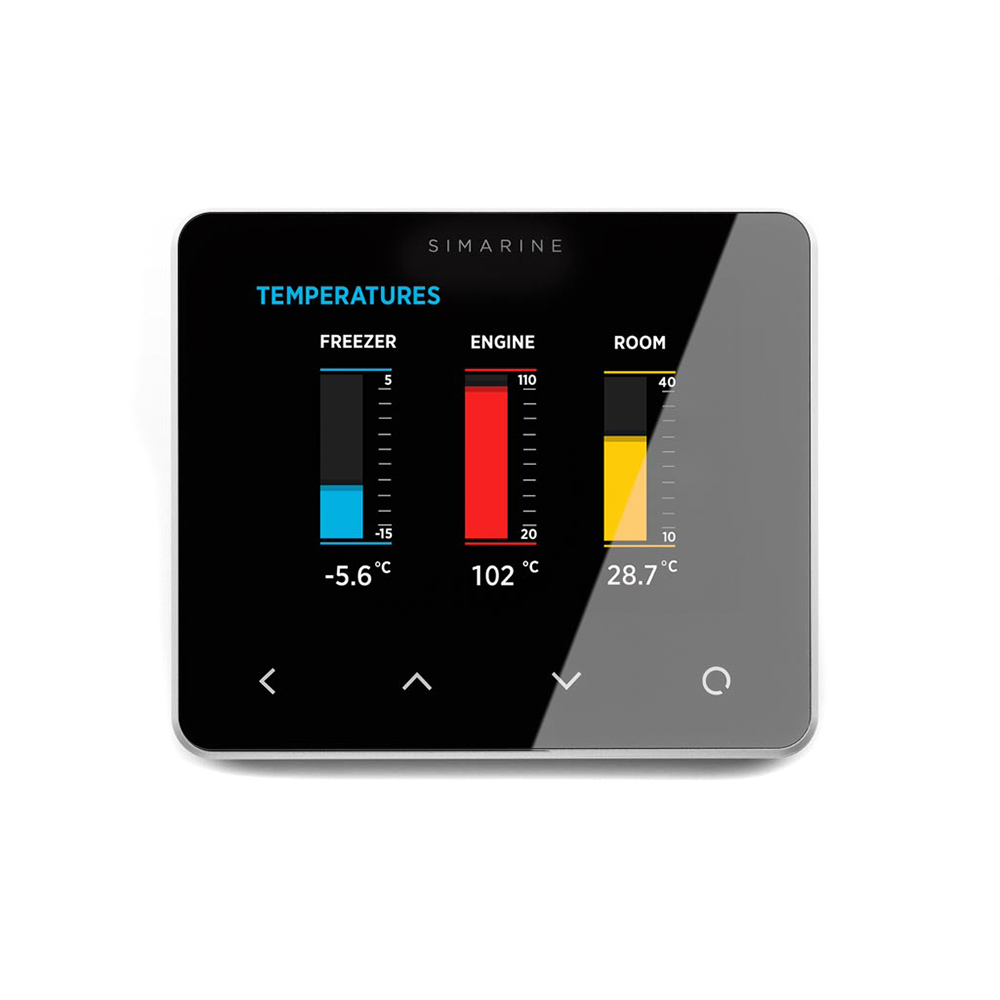

The PICO one display unit features a sleek anodized aluminum casing and thick Gorilla® Glass with anti-reflective coating protecting the high-contrast 3.5” LCD IPS display with Optical Bonding. It is water and dust-proof and can be mounted indoors and outdoors. The screen brightness is automatically adjusted by a light sensor. The device is operated via four waterproof CapSense® touch buttons.

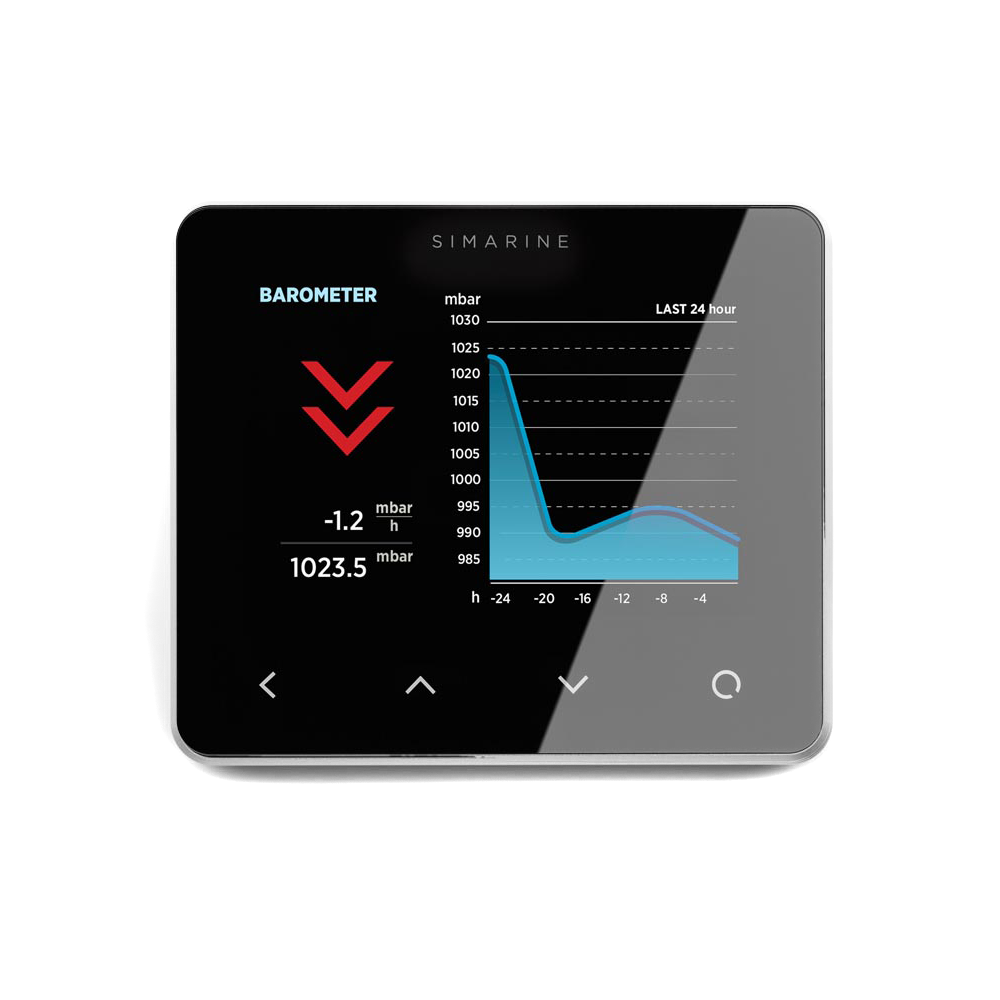

The barograph precisely records air pressure values and creates trends and histories.

The entry-level battery monitor from SIMARINE, suitable for smaller boats and recreational vehicles. The following can be connected:

• 1 battery bank
• 2 additional battery voltages
• 2 tank levels (for temperature monitoring).

Free SIMARINE apps for Android and iOS are available to connect your PICO one to your smartphone via Wi-Fi. With the apps, you can monitor all battery and tank data, upload history, edit and restore settings, and even update the firmware to add new features.

Its expandable architecture allows adding up to 20 SIMARINE shunts and modules for monitoring all types of boats, yachts and caravans - from small to superyacht systems with:

• up to 6 battery banks,
• 14 tanks
• 20 independent consumers and generators.

Documents & Downloads

• Manual
