Simarine PICO Blue Set - Battery Monitor, Tank Electrode and 2 x Shunt

PICO Blue package in black or silver

The innovative PICO BLUE package from SIMARINE is the complete battery and tank monitoring solution for demanding yacht and RV owners with a service battery bank of up to 500 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/backup battery banks and up to 4 tanks.
Precise monitoring of solar panels, wind and hydropower generators, shore power chargers, or the power consumption of individual loads such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

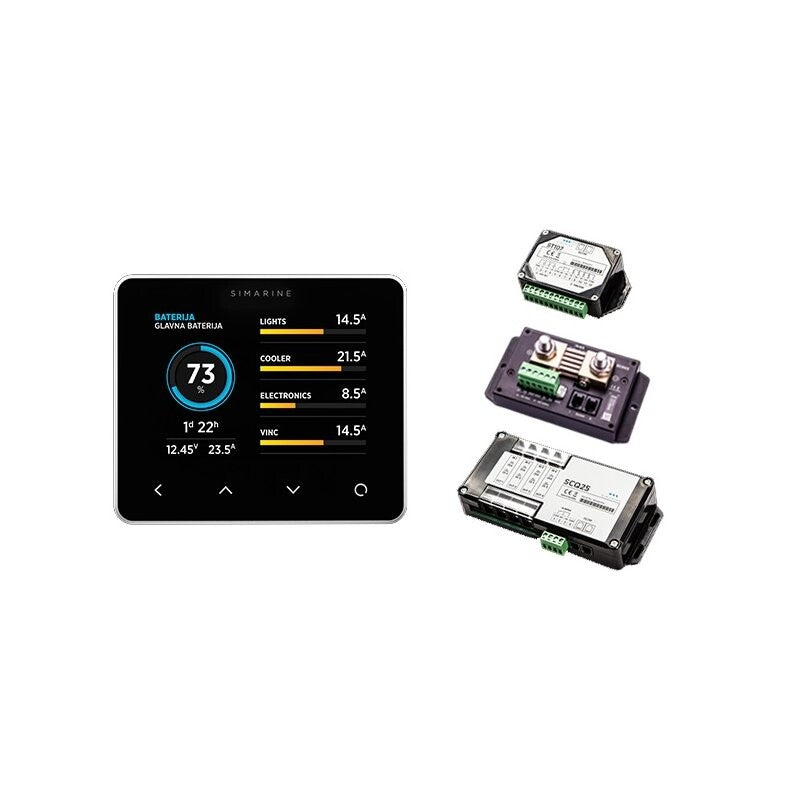

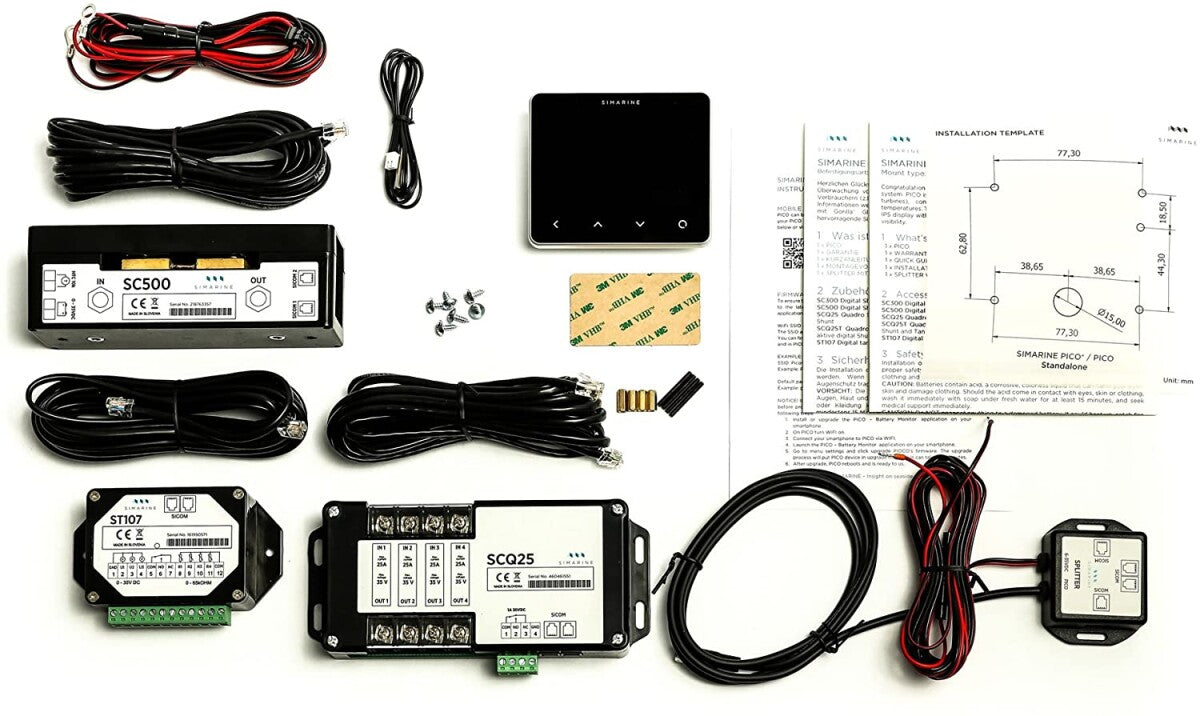

• 1x PICO display unit
• 1x SC503 300 A shunt
• 1x ST107 tank and voltage module
• 1x SCQ25 Quattro 4x25 A shunt module


SC303 is an innovative combination of shunt and tank level module.

The active combined shunt SC303 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature, and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 total).

The integrated tank level has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. Furthermore, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters, and anchor winches, as well as the power generated by generators such as shore power chargers, solar panels, water and wind power generators.

The innovative protected architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

ST107 Tank Module

The ST107 is a versatile module for monitoring tank and temperature sensors, as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers diverse connection options.
The tank module is the latest digital module with extensive connection (and monitoring) options. It allows monitoring of up to 7 tank levels, 3 battery voltages, and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema S3 senders for water and fuel
• Schaudt tank sensor (an adapter cable may be required)


All monitoring functions of the PICO Blue package:

1x Battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator current channels

Barograph function included.

Compatible and expandable with all SIMARINE shunts and modules.

Documents & Downloads

• Manual
