Simarine PICO Blue Set Rev23 - Black with Flush Mount Frame

PICO Blue package in black

The innovative PICO BLUE package from SIMARINE is the complete battery and tank monitoring solution for demanding yacht and caravan owners with a service battery bank of up to 500 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/backup battery banks and up to 4 tanks.
Precise monitoring of solar panels, wind, hydro generators, shore power chargers or the power consumption of individual consumers such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

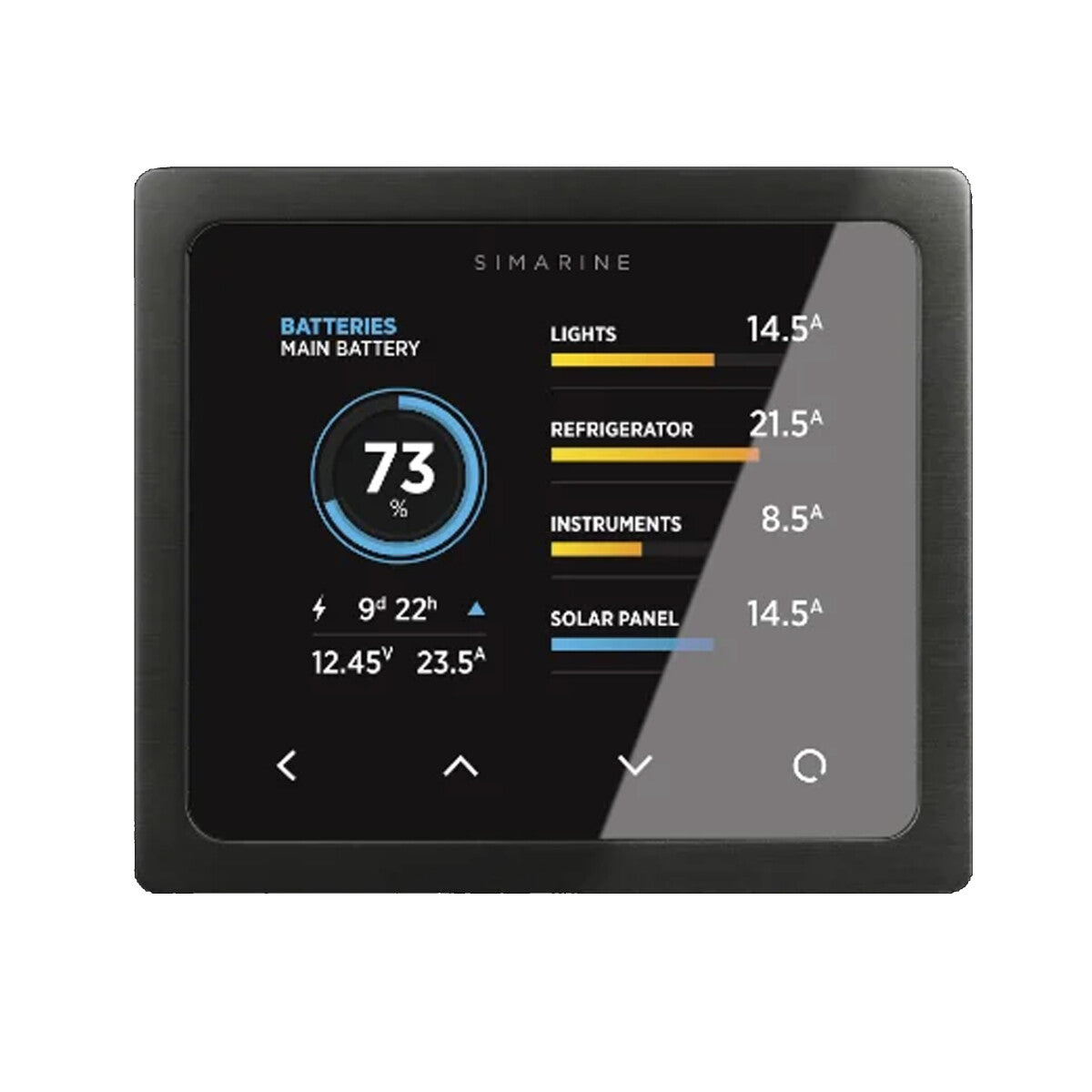

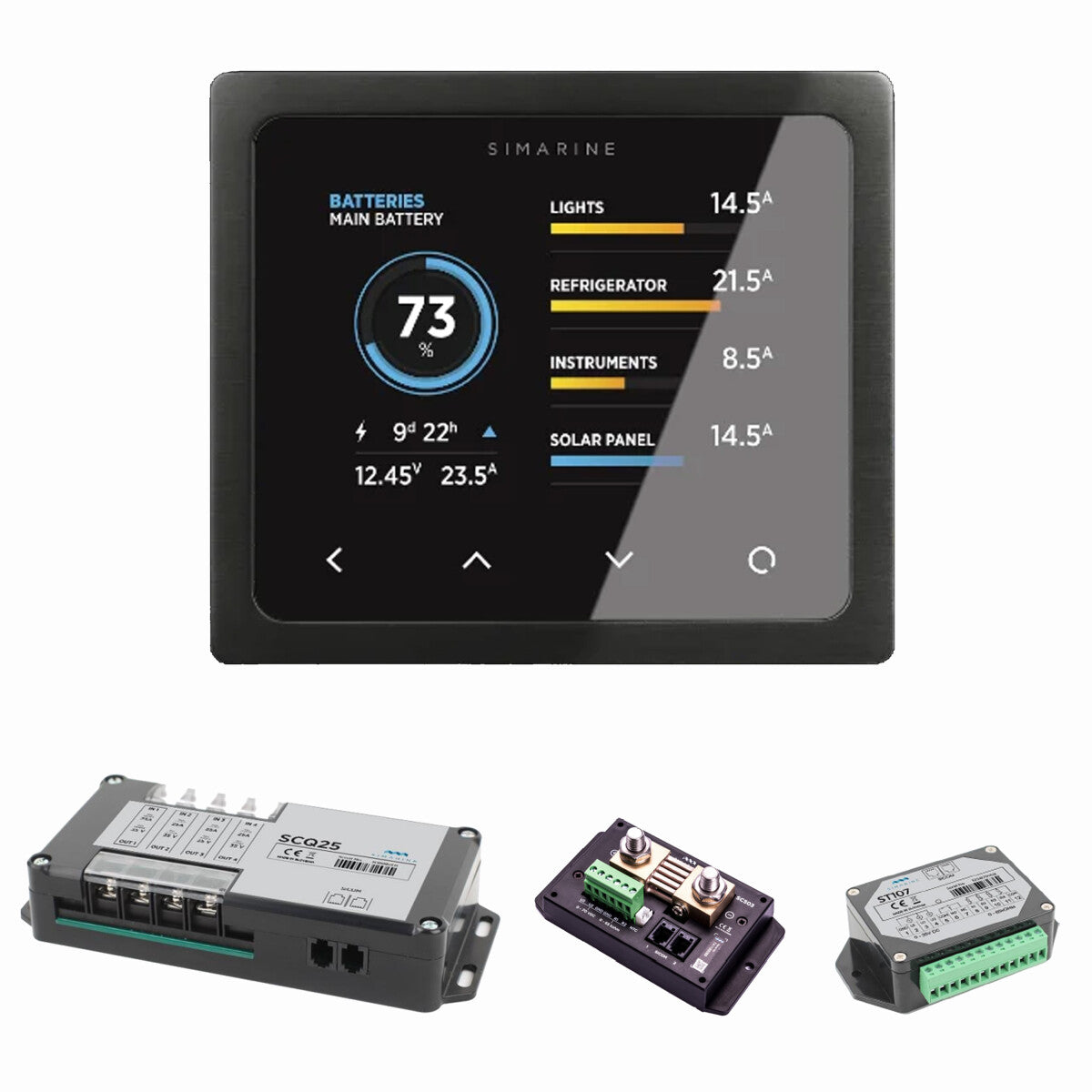

• 1x PICO display unit
• 1x Shunt SC503 300 A
• 1x Tank and Voltage Module ST107

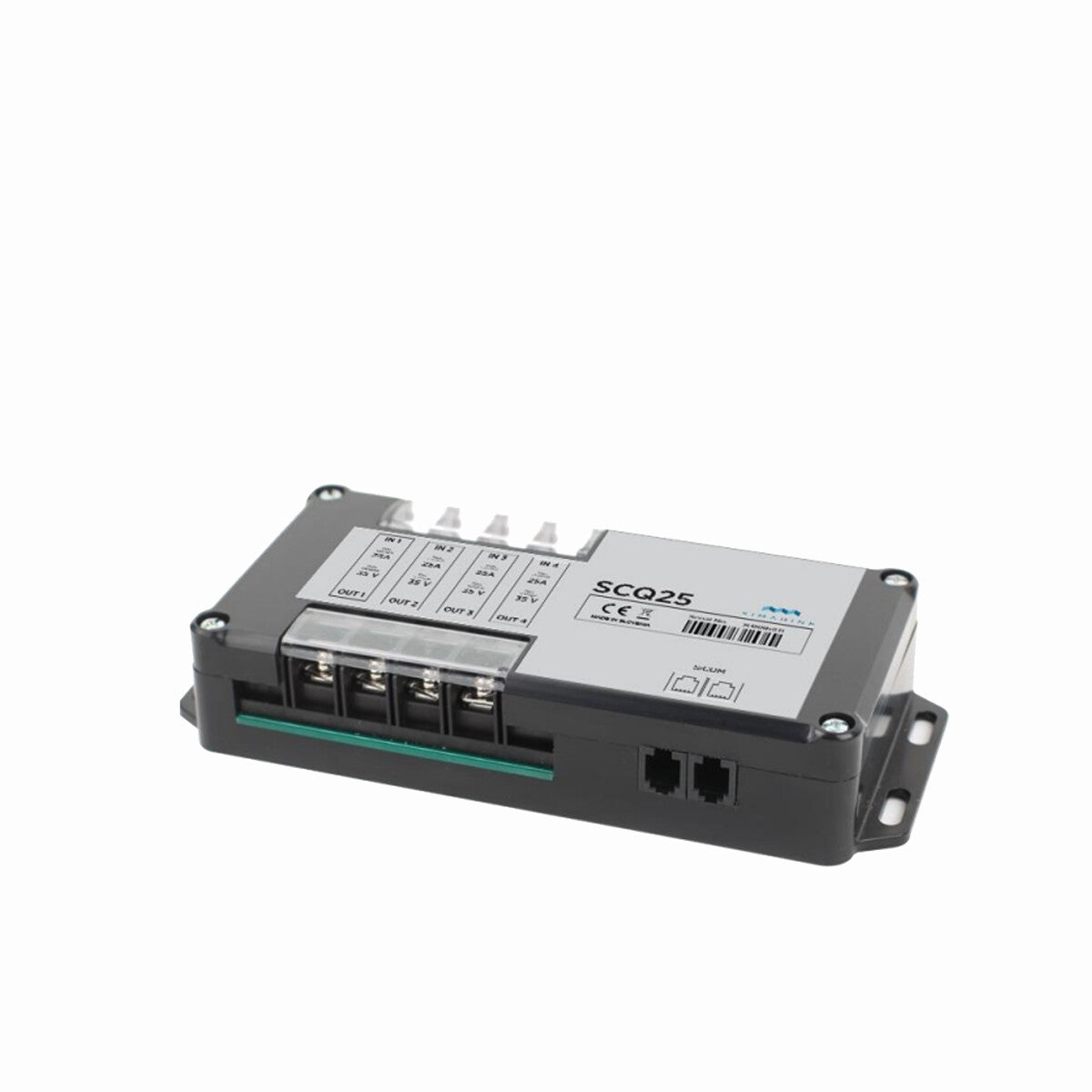

• 1x Shunt Module SCQ25 Quattro 4x25 A

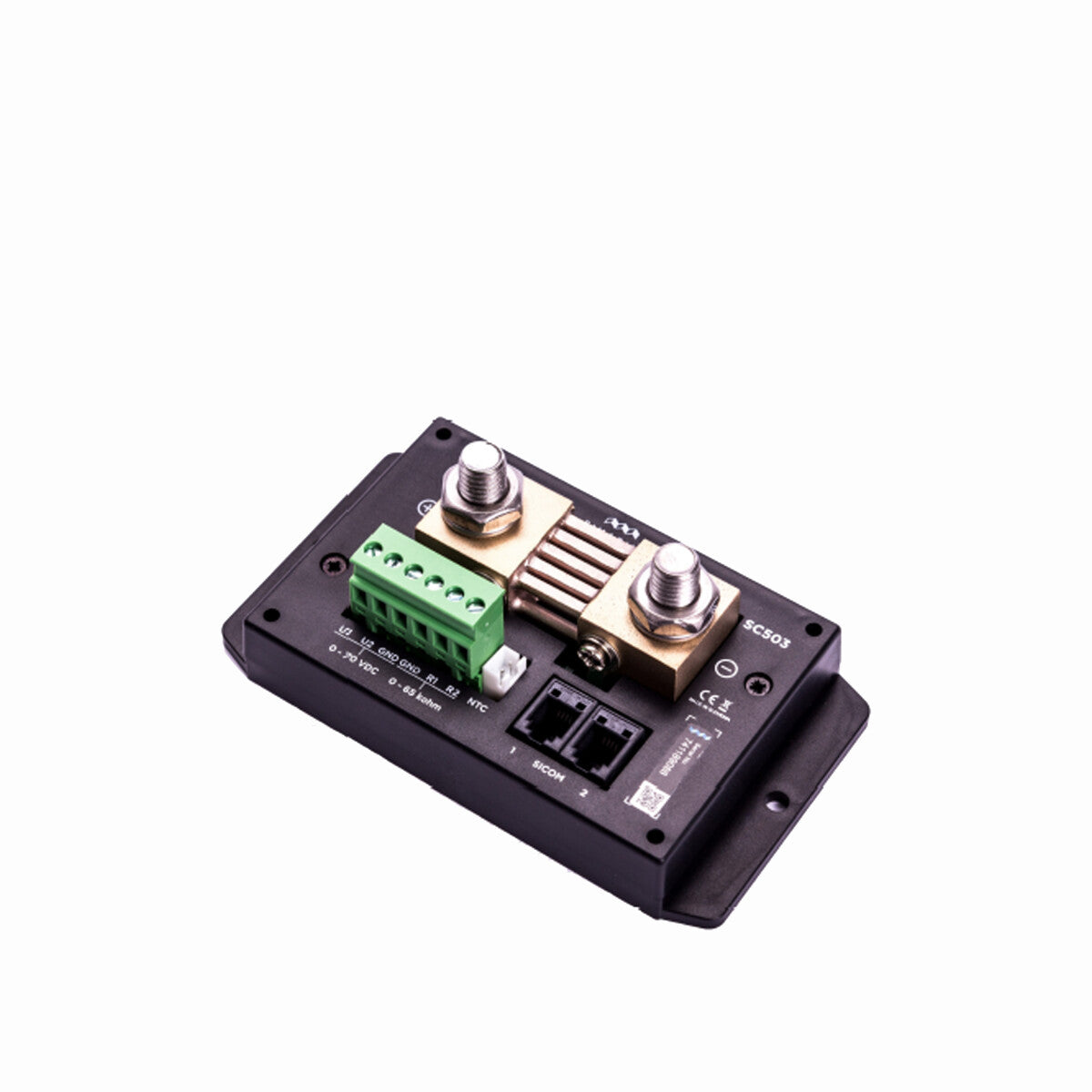

SC503 is an innovative combination of shunt and tank level module.

The active combined shunt SC503 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature and continuous currents of up to 500 A (peak 700 A). It is suitable for a maximum power of 6000 W at 12 V or 12000 W at 24 V. It has an additional battery voltage input (2 in total).

The integrated tank level has 3 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC503 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters as well as anchor winches and power generated by generators such as shore power chargers, solar panels, hydro and wind power generators.

The innovative protected architecture of the SC503 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

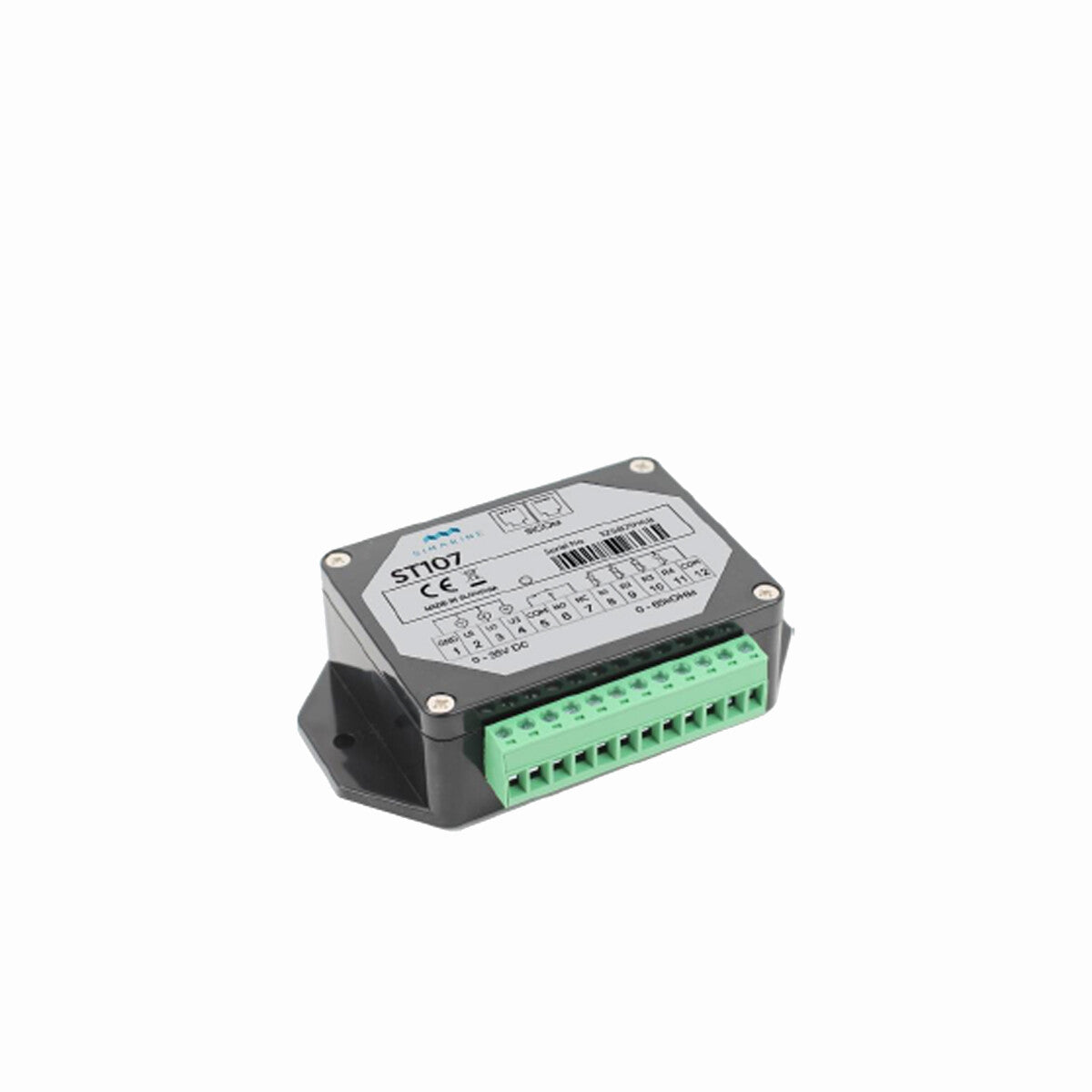

Tank module ST107

ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a wide range of connection options.
The tank module is the latest digital module with extensive connection (and monitoring) options. It allows monitoring of up to 7 tank levels, 3 battery voltages and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema sender for water and fuel S3
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of PICO Blue package:

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator current channels

Barograph function included.

Compatible and expandable with all SIMARINE shunts and modules.

Documents & Downloads

• Manual Pico Blue
• Manual SC503
• Manual ST107
