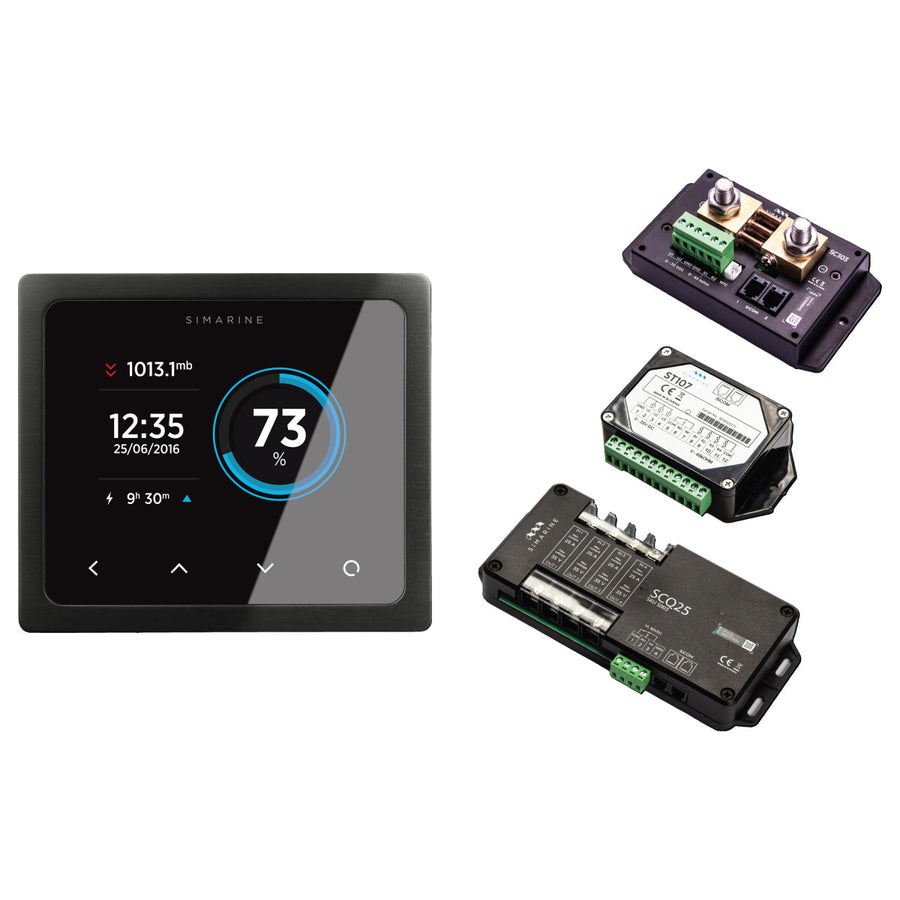

Simarine PICO Blue Set Rev23 - Black without Mounting Frame

PICO Standard package in black

The PICO STANDARD package is the perfect battery and tank monitoring solution for yachts and caravans with 1 main battery (300 A at 12 V, 24 V, 48 V, 60 V and 72 V), up to 4 auxiliary batteries (voltage display only) and up to 6 tanks.

• 1x PICO one display unit
• 1x SC303 300 A shunt
• 1 x ST107 tank module

SC303 is an innovative combination of shunt and tank level module

The active combined shunt SC303 provides precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches, and the current generated by generators such as shore power chargers, solar modules, water and wind power generators.

The innovative protected architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

ST107 tank module

ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a wide range of connection options.
ST107 is the latest digital module with extensive connection (and monitoring) options. It enables monitoring of up to 7 tank levels, 3 battery voltages and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema water and fuel sender S3
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of the PICO Standard package:

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
4x battery voltage only
6x tank levels or temperatures

Barograph function included.

Compatible and expandable with all SIMARINE shunts and modules.
