Simarine PICO Blue Set Rev23 - Silver with Mounting Frame

PICO Blue package in silver

The innovative PICO BLUE package from SIMARINE is the complete battery and tank monitoring solution for demanding yacht and caravan owners with a service battery bank of up to 300 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/backup battery banks and up to 4 tanks.
Precise monitoring of solar panels, wind, hydropower generators, shore power chargers or the power consumption of individual consumers such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

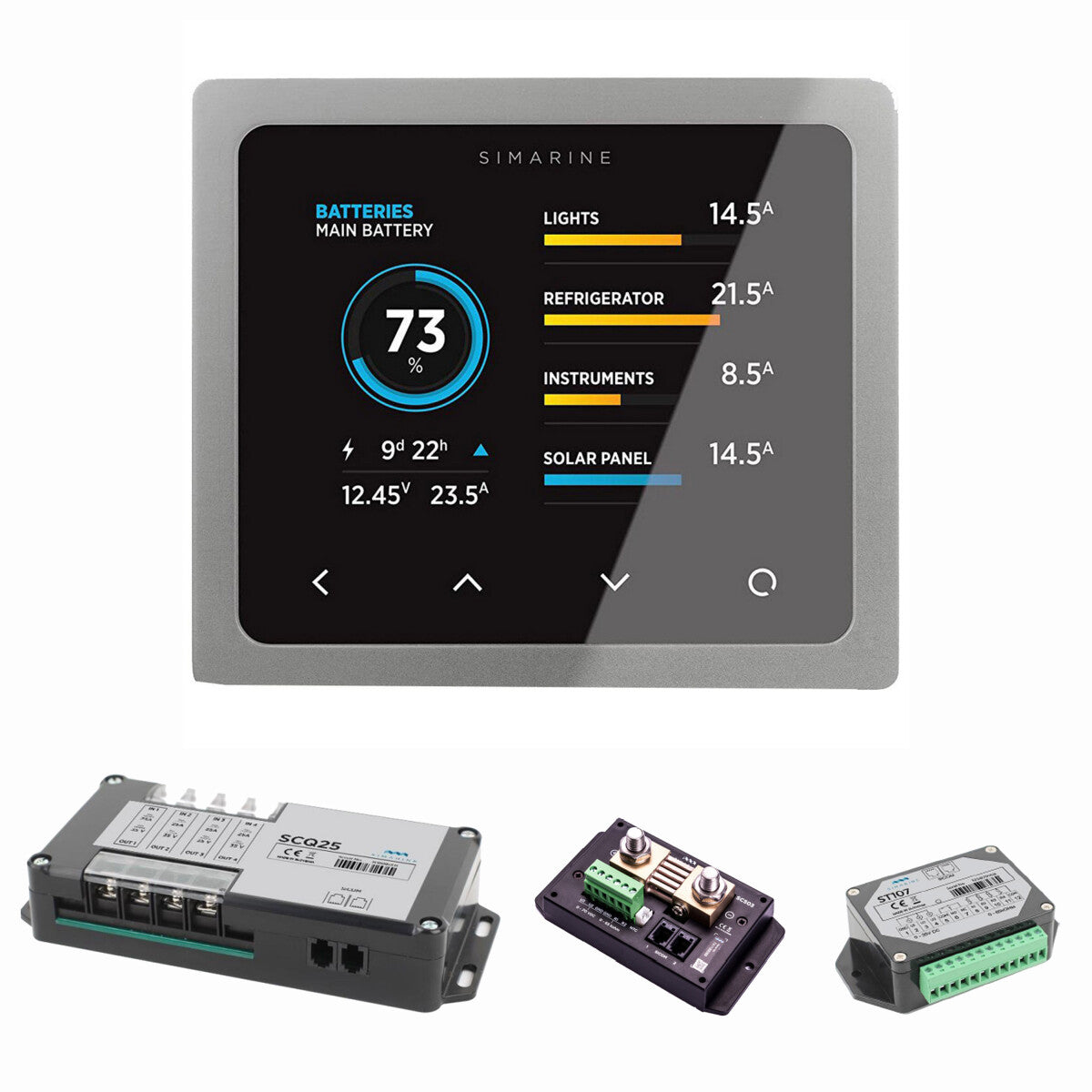

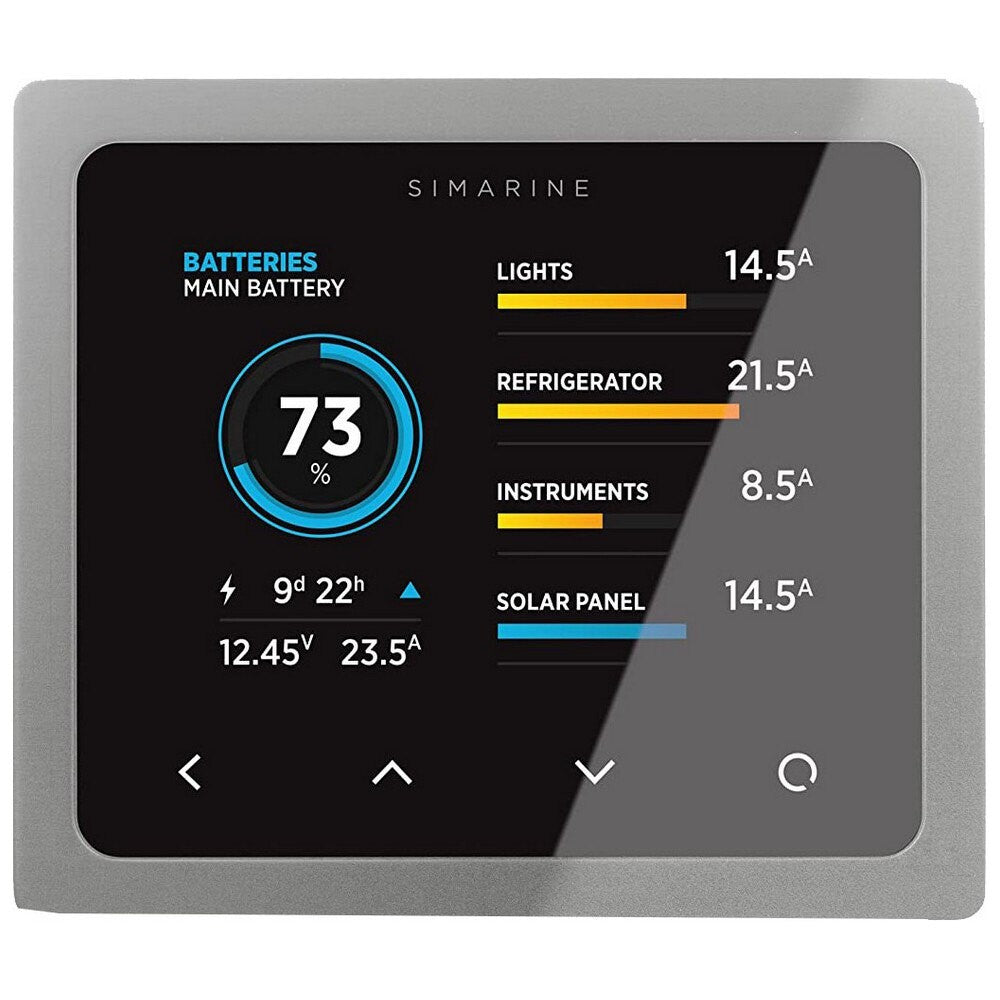

• 1x PICO display unit
• 1x SC503 300 A shunt
• 1x ST107 tank and voltage module
• 1x SCQ25 Quattro 4x25 A shunt module


SC303 is an innovative combination of shunt and tank level module.

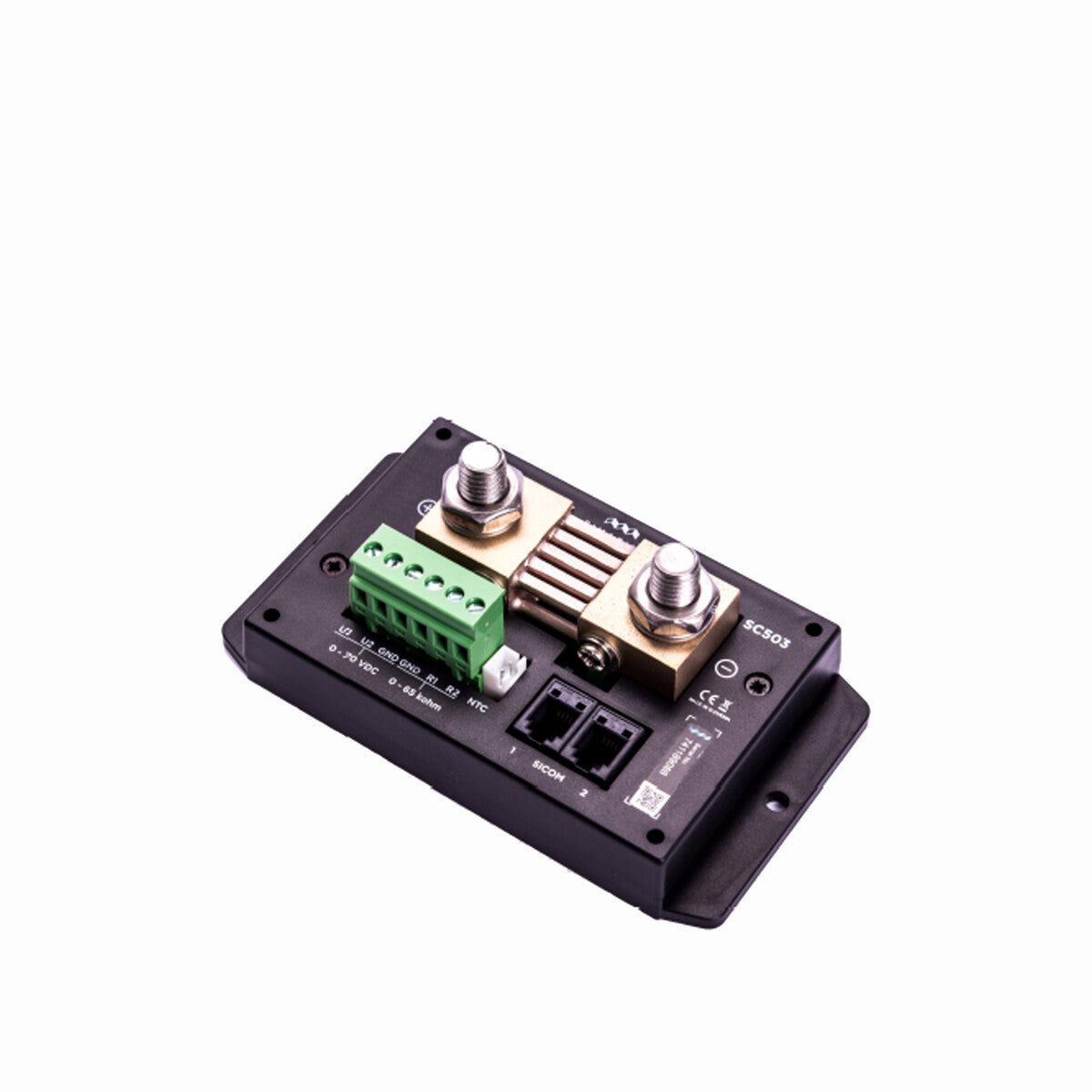

The active combined shunt SC353 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring the tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC503 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches, and the current generated by generators such as shore power chargers, solar panels, hydro and wind power generators.

The innovative protected architecture of the SC503 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

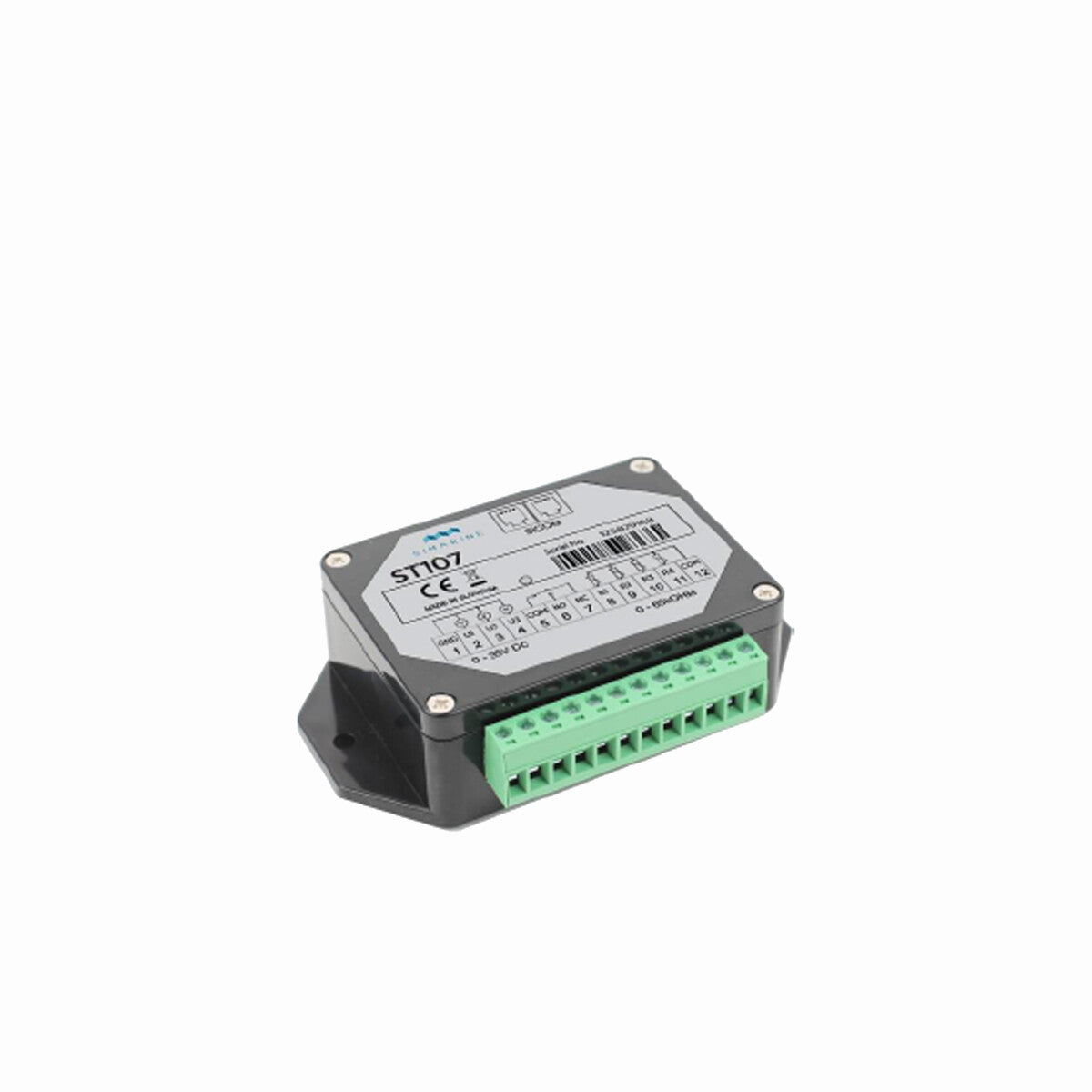

ST107 Tank Module

ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a wide range of connection options.
The tank module is the latest digital module with extensive connection (and monitoring) options. It allows monitoring of up to 7 tank levels, 3 battery voltages and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema S3 senders for water and fuel
• Schaudt tank sensor (an adapter cable may be required)

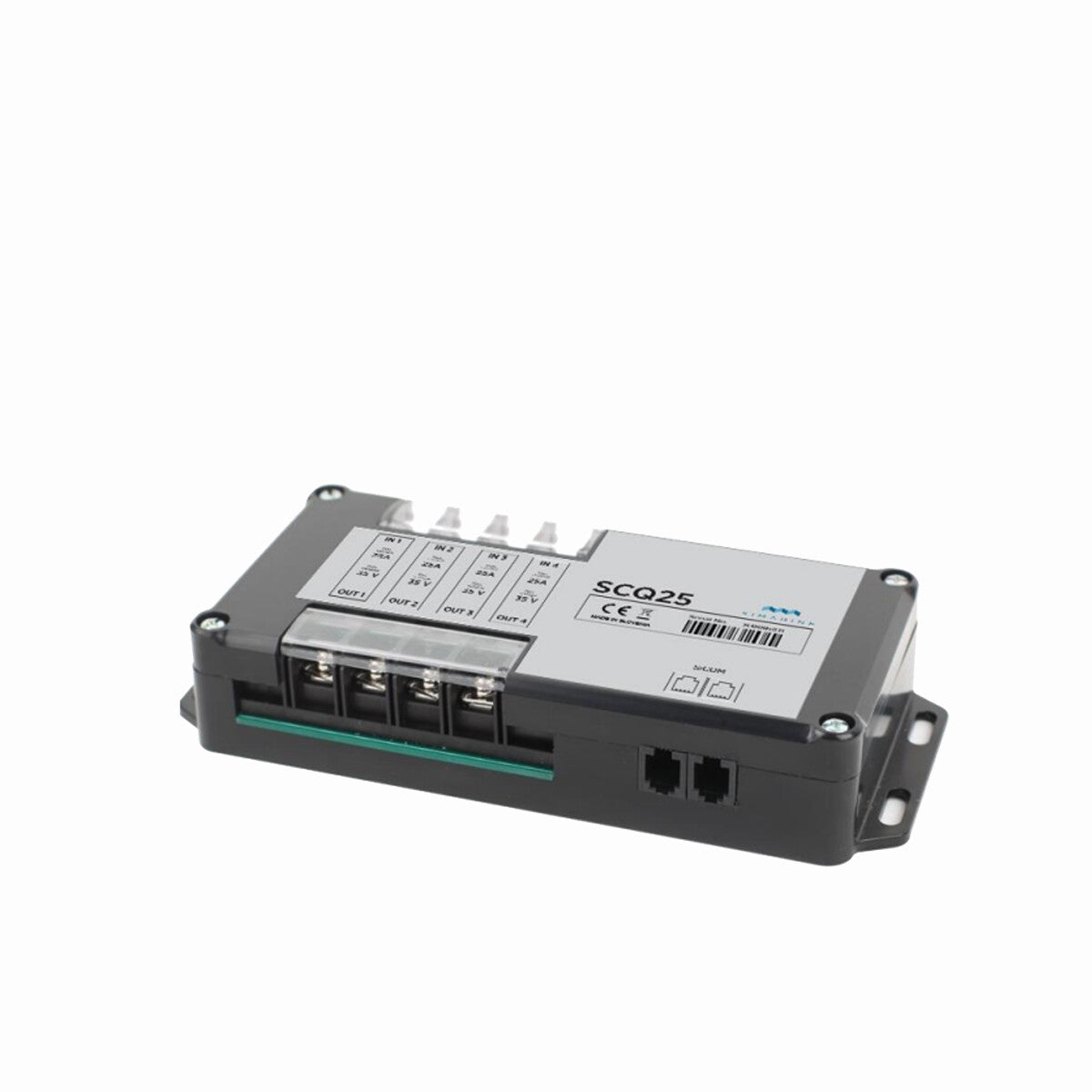

SCQ25

The SCQ25 module monitors the current flow of up to four individual devices and indicates how much current each of your devices consumes.

All monitoring functions of PICO Blue package:

1x battery bank with Real-Time Battery Health™ (current, voltage and temperature monitoring)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator current channels

Barograph function included.

Compatible and expandable with all SIMARINE shunts and modules.

Documents & Downloads

• Manual
