Simarine PICO One Set Rev23 - black

PICO One (BASIC) Package in Black

The PICO One package offers a comprehensive solution for monitoring batteries and tanks in smaller boats, campervans, buses, and caravans. It supports a service battery bank of up to 300 A for systems with 12 V, 24 V, 48 V, 60 V, and 72 V, as well as one or two engine/reserve battery banks and up to two tanks.

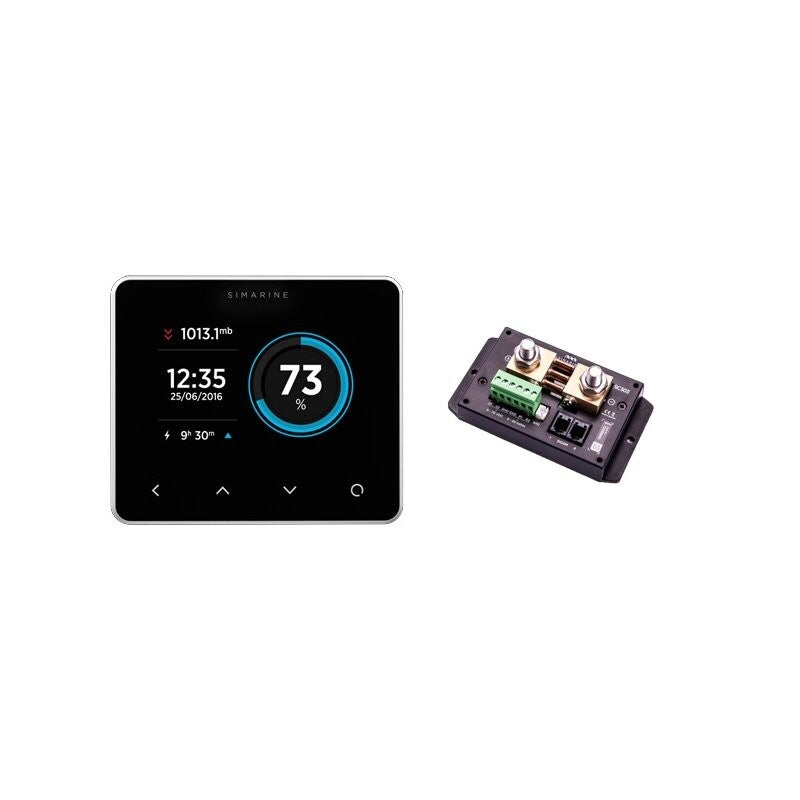

• 1x PICO One display unit
• 1x SC303 300 A shunt

Innovative Technology

The SC303 combines the functions of a shunt and a tank level module in one device. It provides accurate battery voltage measurements for systems from 12 V to 72 V, captures battery temperature, and handles continuous currents up to 300 A (peak 400 A). It can process a maximum power of 3600 W at 12 V or 7200 W at 24 V and offers two inputs for battery voltages.

Tank Monitoring and More

The tank level part of the SC303 includes two resistance inputs for monitoring level or temperature, as well as an additional JST socket for a temperature sensor with a JST connection. Additionally, the SC303 module allows monitoring of energy consumption from high-energy consumers such as inverters, bow and stern thrusters, and anchor winches, and monitors the current generated by generators such as shore power chargers, solar systems, and wind power generators.

Flexible Installation

Due to the innovative and protected design of the SC303, the module can be connected to either the negative side (up to 72 V) or the positive side (up to 24 V).

Compatible Tank Sensors

• Wema S3 senders for water and fuel
• Schaudt tank probe (may require an adapter cable)

Monitoring Functions of the PICO One (BASIC) Package

• 1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage, and temperature)
• 2x battery voltage only

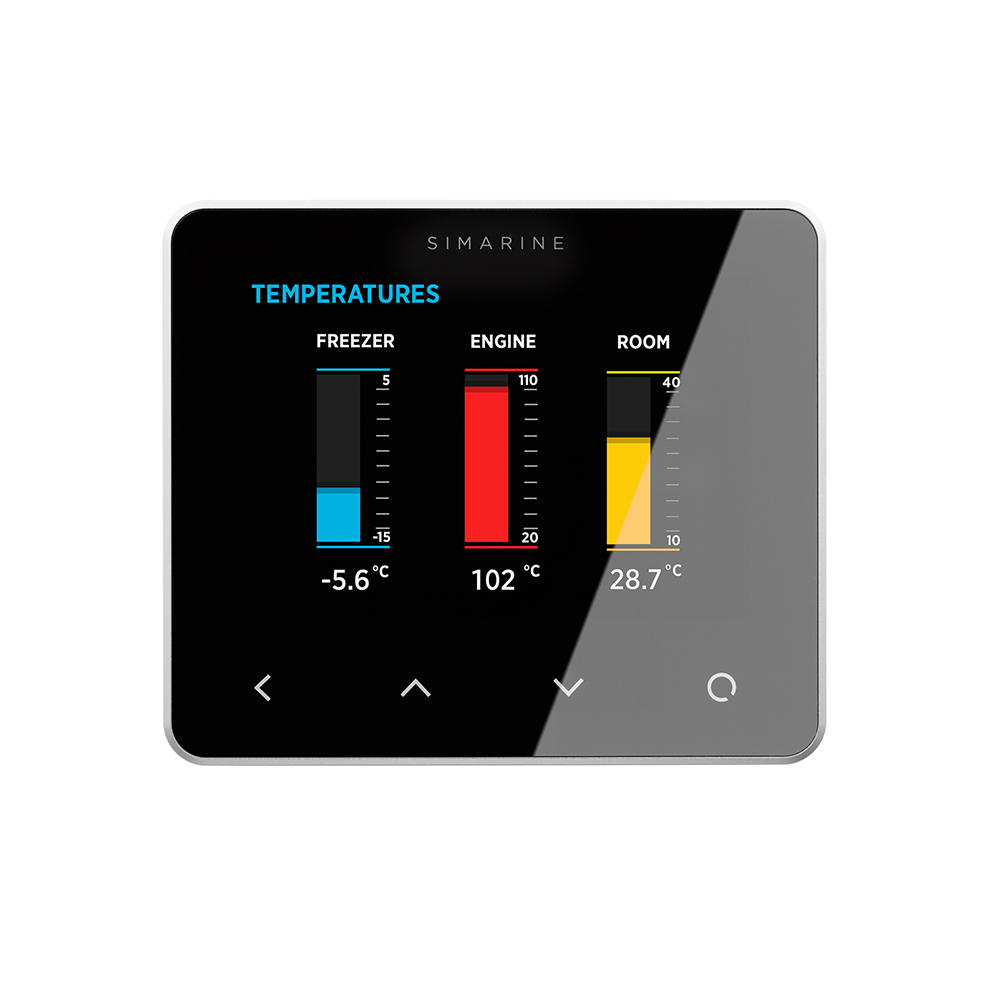

• 2x tank levels or temperatures

Additional Functions

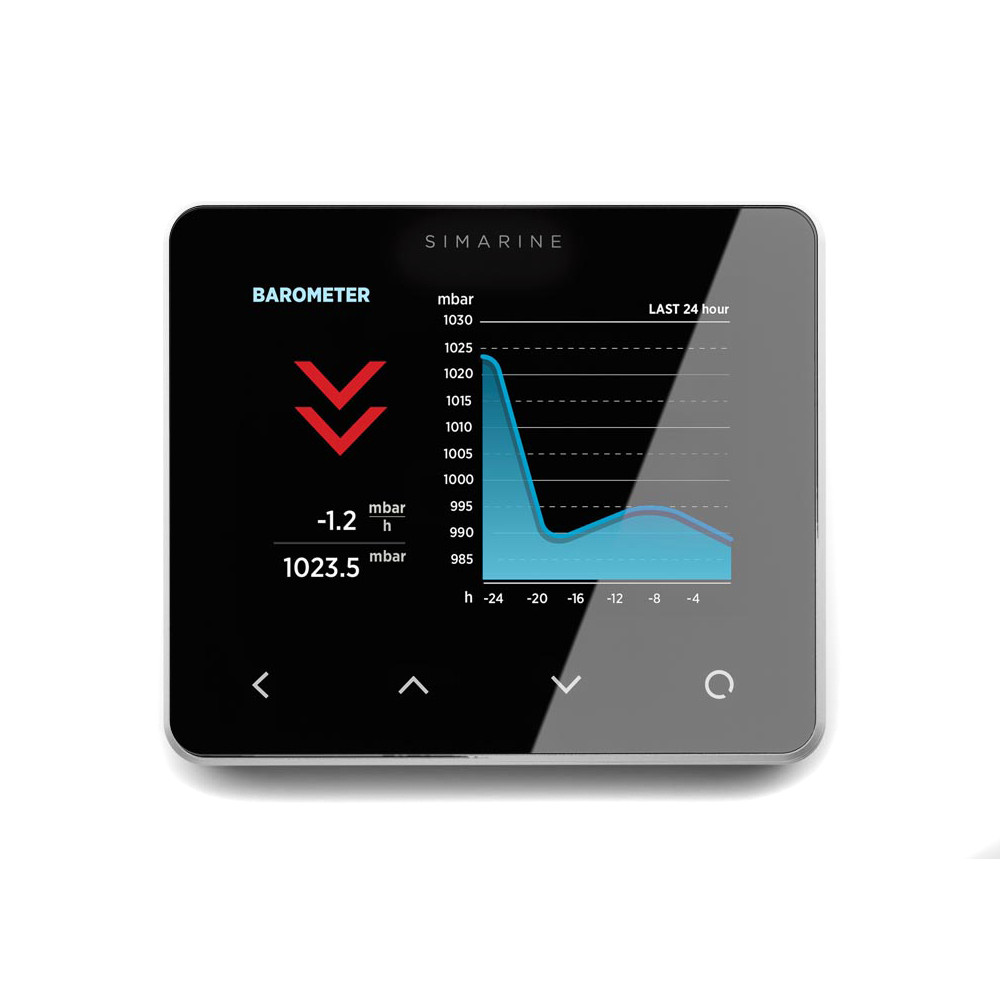

Includes barograph function. The system cannot be extended with other shunts and modules.

Documents & Downloads

• Manual
