Simarine PICO One Set Rev23 - silver

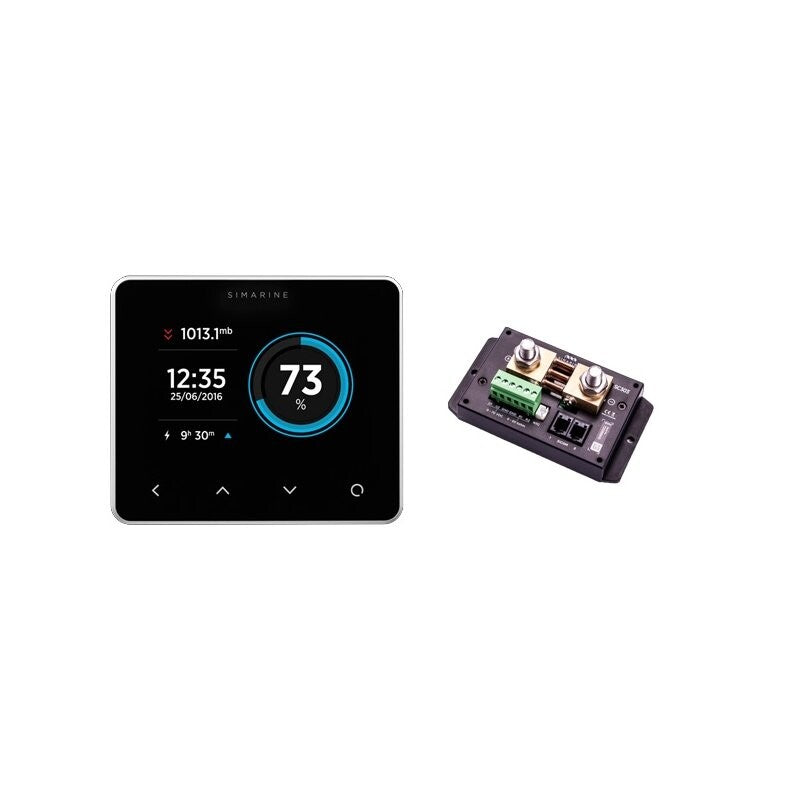

PICO One (BASIC) Package in silver

The PICO One package is the perfect battery and tank monitoring solution for smaller boats, campervans, buses and caravans with a service battery bank of up to 300 A at 12 V, 24 V, 48 V, 60 V and 72 V, one or two engine/reserve battery banks and up to 2 tanks.

• 1x PICO One display unit
• 1x SC303 300 A shunt


SC303 is an innovative combination of shunt and tank level module.

The active combined shunt SC303 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 total).

The integrated tank level module has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. Furthermore, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters, and anchor winches, as well as power generated by generators such as shore power chargers, solar modules, water and wind generators.

The innovative protected architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema S3 Water and Fuel Sender
• Schaudt Tank Sensor (an adapter cable may be required)


All monitoring functions of PICO One (BASIC) Package:

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
2x battery voltage only
2x tank levels or temperatures

Barograph function included.

Not expandable with other shunts and modules.
