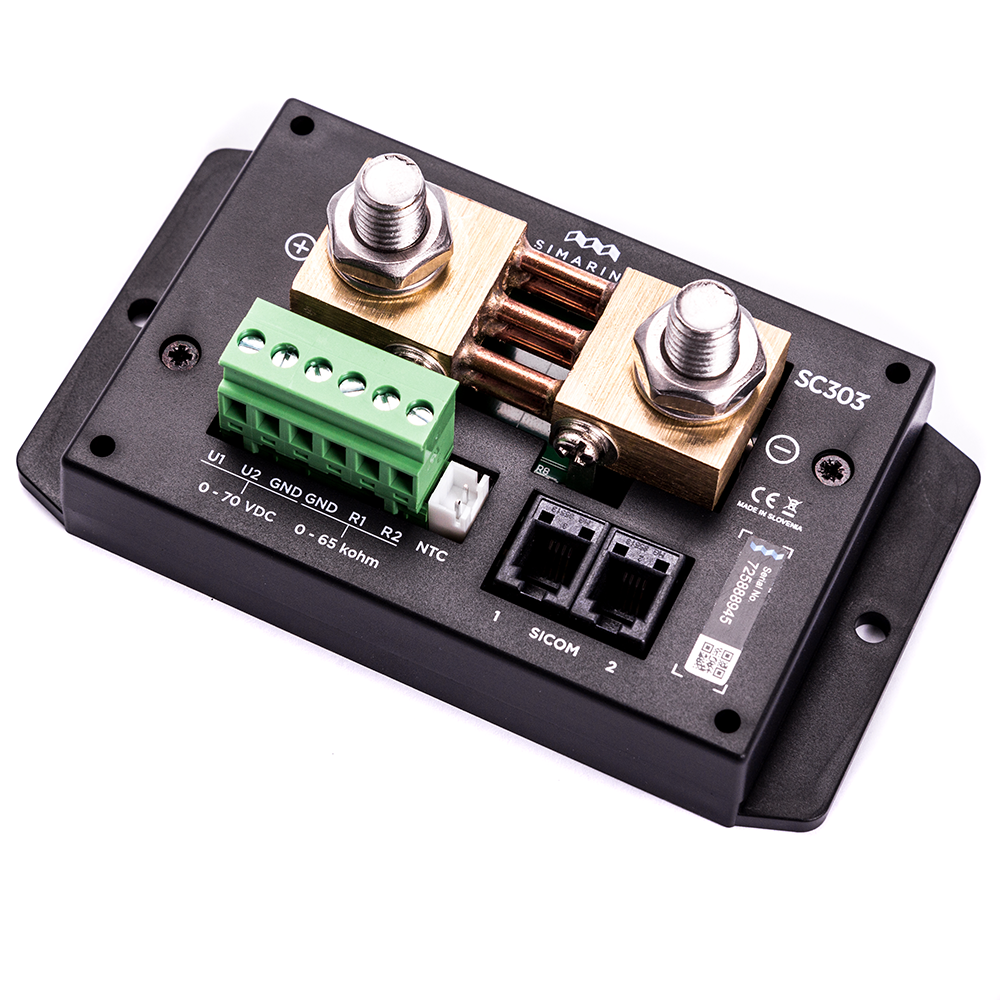

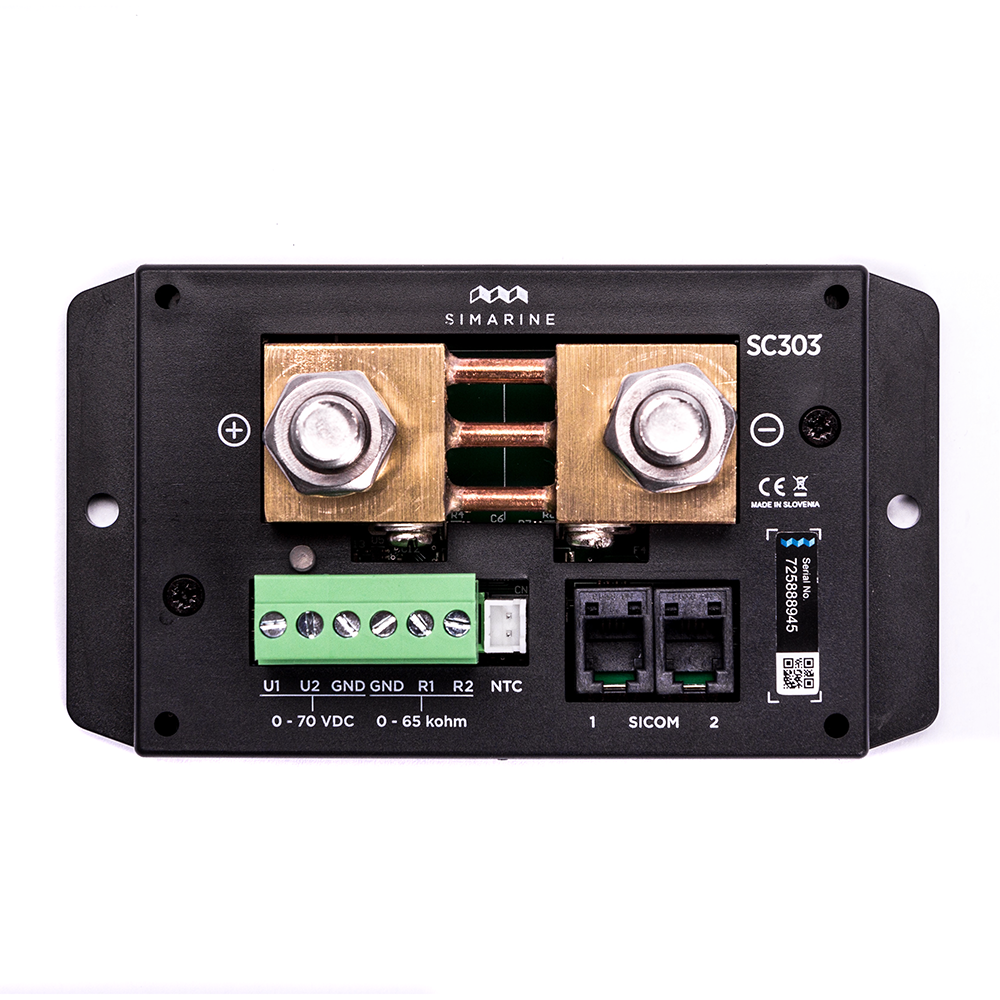

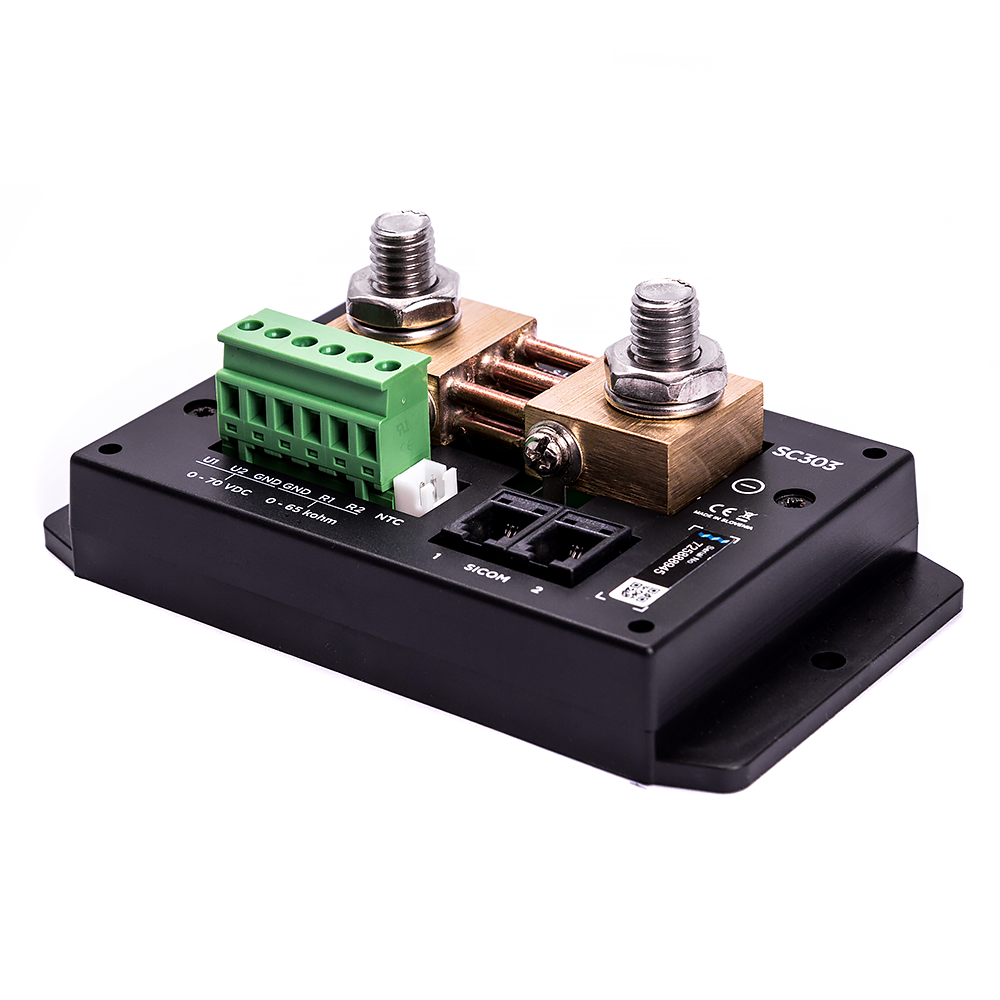

Simarine SC303 Digital Shunt 300 A

Active Shunt SC303

SC303 is an active combination shunt for PICO and PICO one battery monitors with:

• 2 voltage sensors
• 2 tank level or temperature sensors
• 1x JST socket (temperature sensor)
• 1 current sensor for up to 300 A for systems up to 75 V

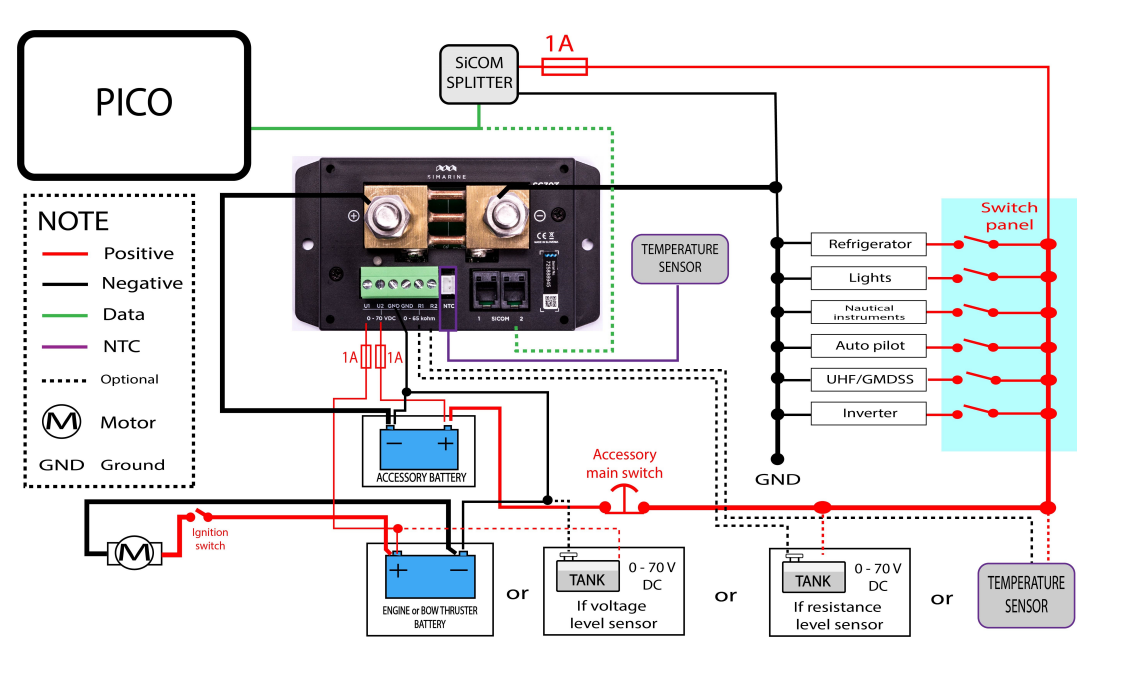

It can be used to monitor the power consumption of large consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). In addition, it allows monitoring of fuel, fresh water and grey water tanks.

SC303 is an innovative combination of shunt and tank level module.

The active combination shunt SC303 ensures precise monitoring of battery voltage in 12 V, 24 V, 48 V, 60 V and 72 V systems, battery temperature and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches, and the current generated by generators such as shore power chargers, solar panels, water and wind power generators.

The innovative protected architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).
