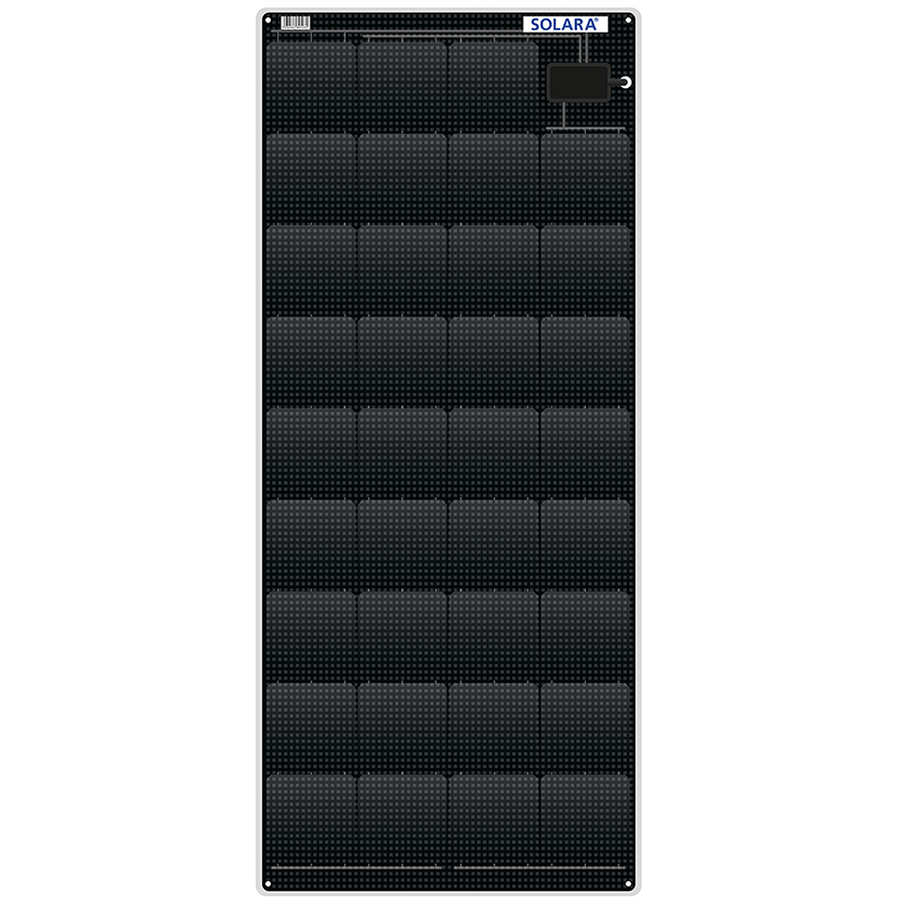

SOLARA Power M-Series - S575M35 Marine130Wp

Professional solar module for demanding use on the water!

The SOLARA Power M-series solar modules have been specially developed for maritime use on boats, yachts, buoys or lifeboats. These power modules consist of crystalline high-performance cells and are particularly suitable for curved boat decks due to their robust and impact-resistant (no glass) construction.


Further special features at a glance:

• Fully walkable
• Break-proof stability thanks to a stainless aluminum sandwich support plate.
• Aluminum sandwich support plate, 2-layer powder-coated
• Application-specific installation flexibility (max. 3%), also thanks to innovative chaining technology
• Maximum daily yield through the use of 35 extremely light-sensitive crystalline solar cells!
• Teflon-like protective film on front and back - 5mm all around, protruding and welded
• Additional protective embedding of the solar cells in seawater-resistant, durable EVA film
• Robust, small, flat, seawater-proof cable outlet, glued and screwed
• Easy to glue on or screw on with mounting holes
• 100% Made in Germany

The SOLARA Power M-series consists of 35 crystalline high-performance cells. High performance even in diffuse light and in low-light months. Each solar module is individually tested for functional reliability, weather resistance and durability. Equipped with UV-/ozone-resistant solar connection cable, seawater-proof cable outlet and mounting holes. The modules are walkable, seawater-resistant and defy all weather conditions, always providing power on board.

Thanks to their versatile applicability, the M-series solar modules can be mounted on over 90% of existing deck curvatures!!

For bonding, we recommend our A-J215 or Sikaflex adhesive, both of which you can find in our shop under Installation.

Further information
In addition to a 12V battery, you also need a charge controller, which prevents the power supply and thus overcharging or, if necessary, deep discharge of the battery. In addition, it ensures optimal charging voltage and guarantees the necessary reverse current protection at night.
Our range of charge controllers can be found here.
Of course, we have already put together complete solar kits for a wide range of requirements. These kits include not only the modules but also all the materials necessary for installation, such as connection cables, adhesive, and sealant.
Further information can be found in the category Solar Complete Set.

Technical data S525M35

Documents & Downloads

• Datasheet Power-M Series
