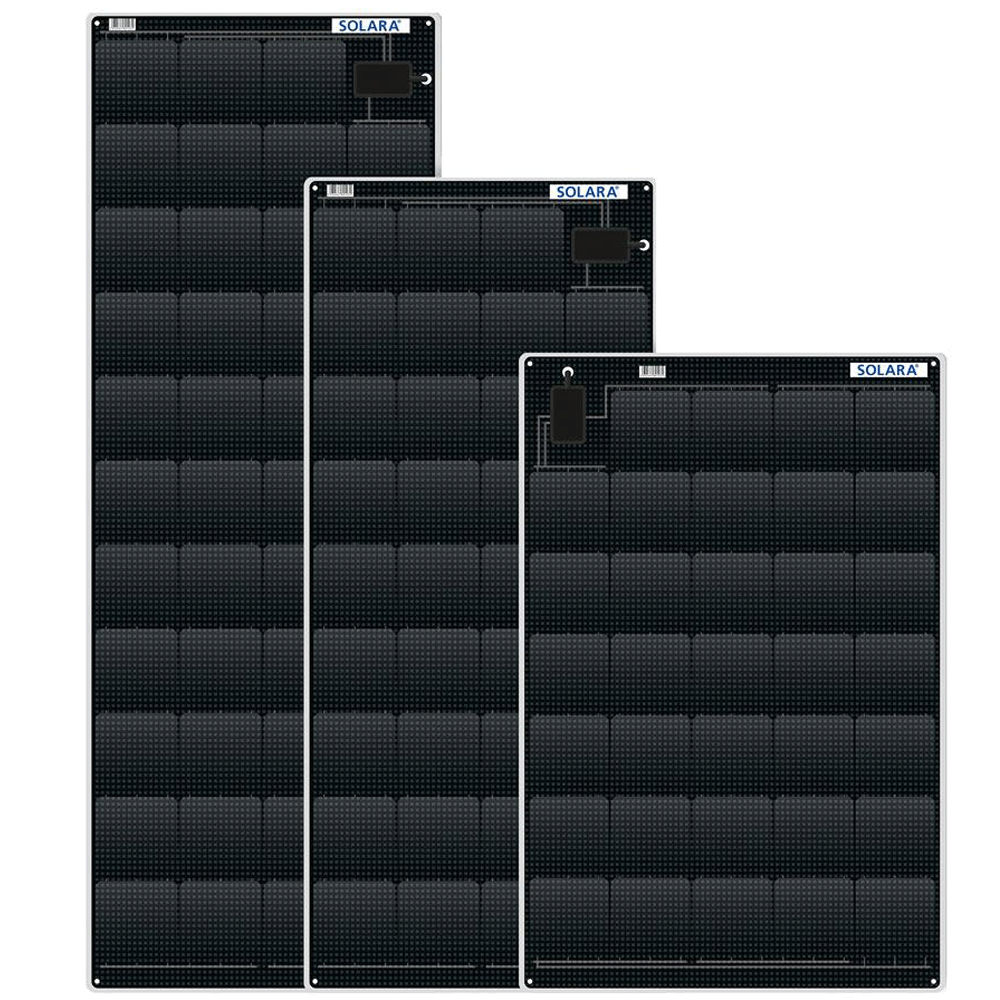

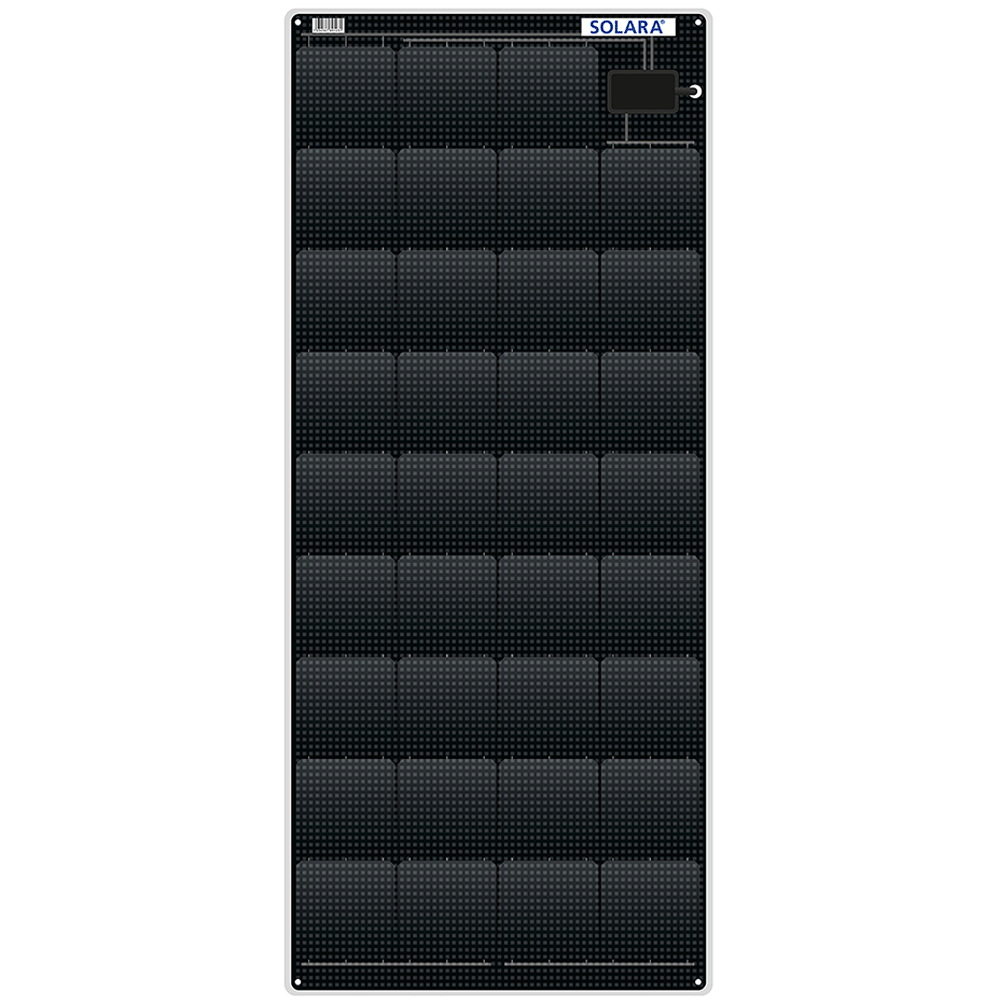

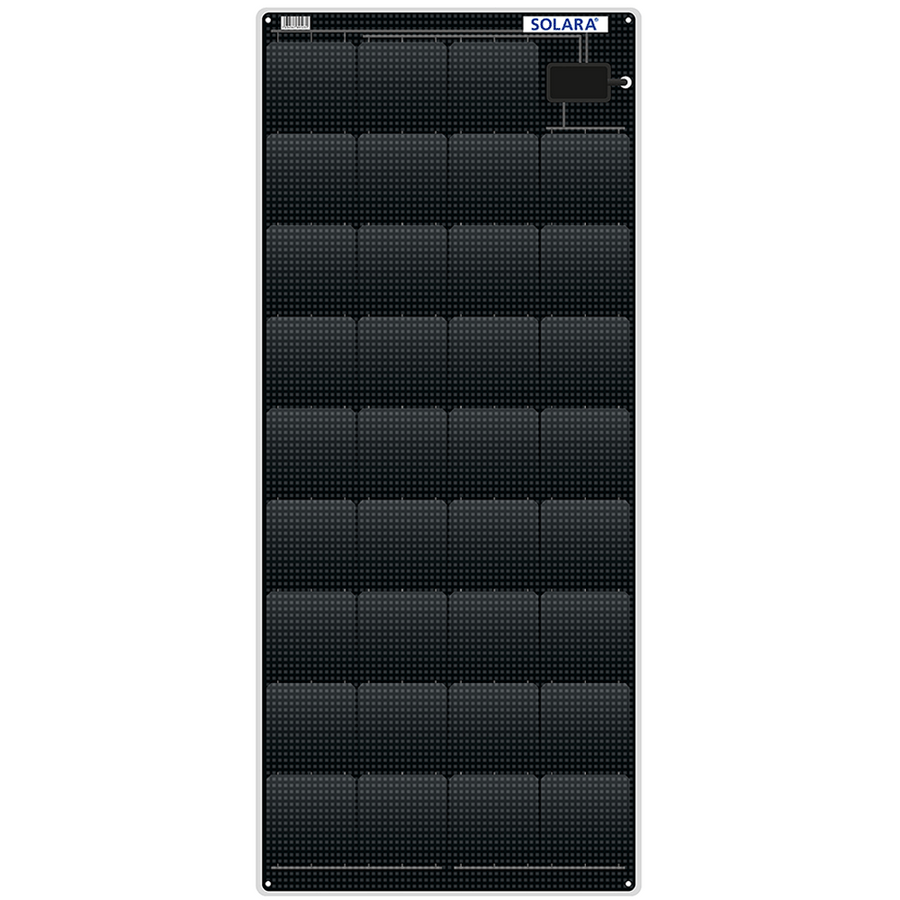

SOLARA Power M-Series - S575M35 Marine 130Wp Cable outlet on the back

Professional Solar Module for Demanding Marine Use!

The SOLARA Power M-series solar modules have been specially developed for marine use on boats, yachts, buoys, or rescue boats. These power modules consist of high-performance crystalline cells and are particularly suitable for curved boat decks due to their robust and impact-resistant (no glass) construction.


Further Special Features at a Glance:

• Fully walkable
• Break-resistant stability thanks to a stainless aluminum sandwich support plate.
• Aluminum sandwich support plate, 2-layer powder-coated
• Application-specific installation flexibility (max. 3%), also thanks to innovative linking technology
• Maximum daily yield through the use of 35 extremely light-sensitive crystalline solar cells!
• Teflon-like protective film on front and back - 5mm all-around, overlapping, and welded
• Additional protective embedding of the solar cells in saltwater-resistant, durable EVA film
• Robust, small, flat, saltwater-proof cable outlet, glued and screwed
• Easy to glue on or screw on with mounting holes
• 100% Made in Germany

The SOLARA Power M-series consists of 35 high-performance crystalline cells. High performance even in diffuse light and in months with low light. Each solar module is individually tested for functional reliability, weather resistance, and durability. Equipped with UV-/ozone-resistant solar connection cable, saltwater-proof cable outlet, and mounting holes. The modules are walkable, saltwater-proof, withstand any weather, and always provide power on board.

Due to their versatile applicability, the M-series solar modules can be mounted on over 90% of existing deck curvatures!

For bonding, we recommend our A-J215 or Sikaflex adhesive, both of which you can find in our shop under Installation.

Further Information
In addition to a 12V battery, you also need a charge controller that regulates the power supply and thus prevents overcharging or, if necessary, deep discharge of the battery. Furthermore, it ensures optimal charging voltage and guarantees the necessary reverse current protection at night.
You can find our range of charge controllers here.
Of course, we have already put together complete solar kits for various requirements. These kits contain, in addition to the modules, all the materials necessary for installation, such as connection cables, adhesive, and sealant.
You can find more information in the category Solar Complete Set.

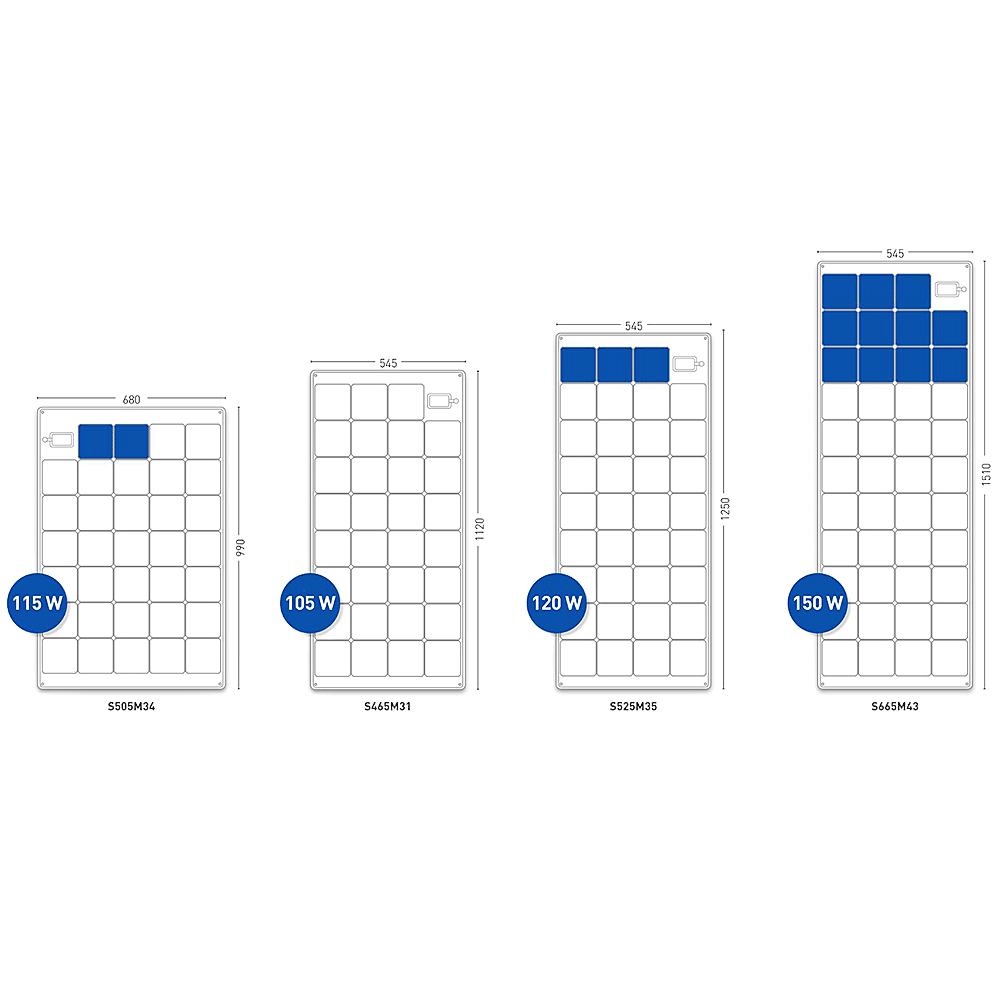

Technical Data S525M35

Documents & Downloads

• Data Sheet Power-M Series
