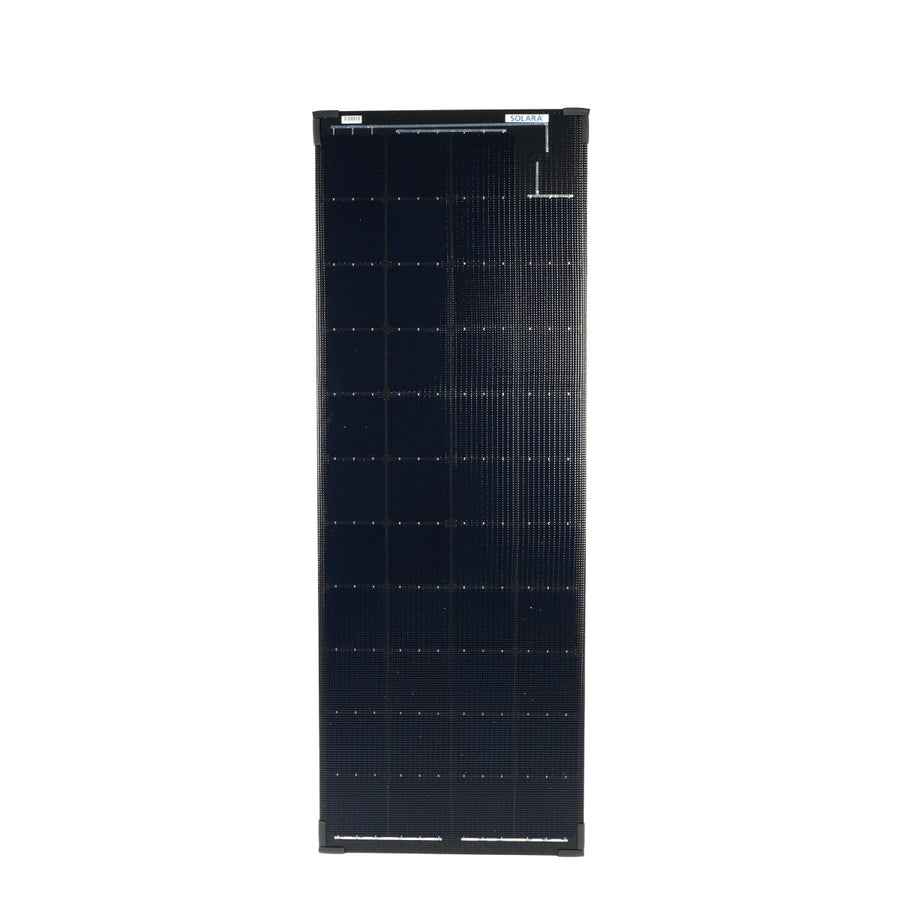

SOLARA Power M-Series S705M43 Marine 160Wp Cable Outlet Rear

SOLARA Power M-Series - S705M43 Marine 160Wp with Black Frame: High-Performance Solar Modules for Maximum Efficiency

Appearance and Design

Experience the elegance and aesthetic appeal of the all-black design of the SOLARA Power M-Series. These solar modules impress with their extremely flat construction, supported by a robust aluminum sandwich backing plate. The innovative cell connector technology allows for exceptionally flexible mounting – ideal for tarpaulins or other unconventional locations. Furthermore, these modules are fully walkable, making them particularly practical for use on boats. The cables are routed directly through the backing plate, with the cable outlet optimally positioned for use on pop-top roofs. The flat, glued, and screwed cable outlet connection ensures reliable strain relief.

Materials Used

• Cell technology: Sunpower, monocrystalline with back contact, for highest efficiency
• Front and back: ETFE front and back films, securely welded at the edge
• Cable outlet: Seawater-resistant, robust, and flat cable outlet, glued and screwed for maximum durability
• Connection cable: 3 m, 2 x 2.5 mm², UV-stable and seawater-resistant

Highest Daily Yield with Sunpower Solar Cells

The SOLARA Power M-Series uses back-contacted Sunpower solar cells, which offer extremely high efficiency with a conversion rate of over 23%. The additional solar cells increase the voltage and guarantee a high-yield operation in all seasons, even in diffuse light. Developed for continuous use both on water and on land, all materials withstand extreme heat, high humidity, and sea and salt water. The external hotspot protector with bypass diodes protects against possible cell overheating and is included in the scope of delivery.

With a 5-year product warranty, SOLARA stands for reliability and quality. The SOLARA Power M-Series is your first choice if you are looking for high-performance solar modules that deliver maximum energy yields in the smallest space. Perfect for demanding use at sea or on land, these modules combine innovation, efficiency, and style.

Documents & Downloads

• Datasheet S705M43
