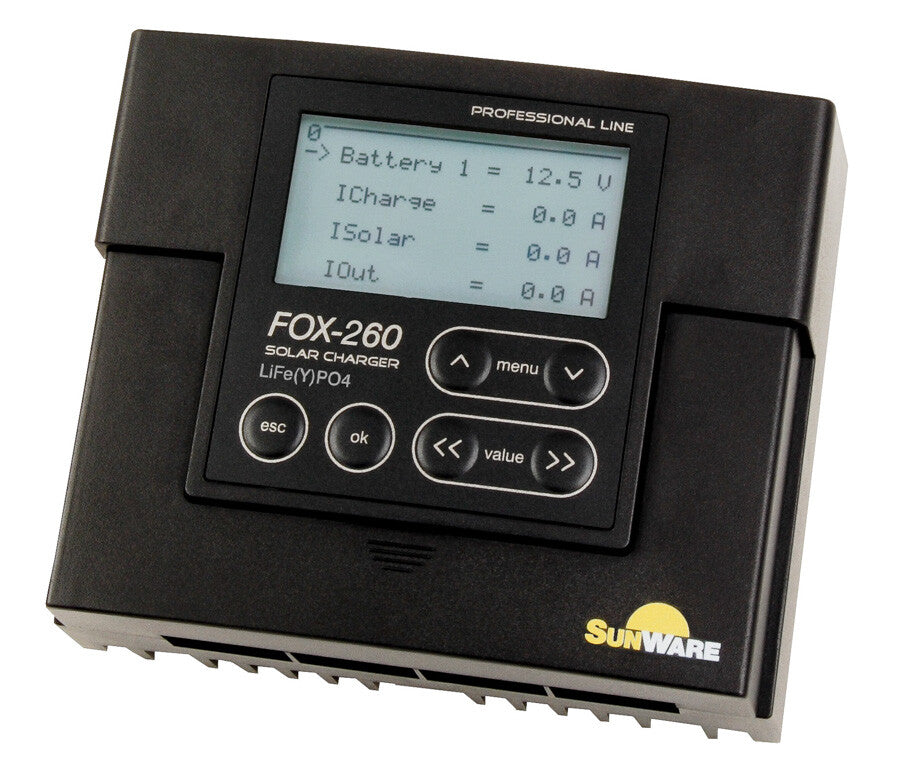

SunWare FOX-260Li LCD Solar Charge Controller

FOX-260 LCD Solar Charge Controller 20A

Powerful solar controller with optimal charging efficiency especially for LiFe(Y)PO4 batteries

The FOX-260 is a high-quality charge controller suitable for use in 12/24V battery systems and for module currents up to 20 amperes. All commercially available solar modules (up to 340W at 12V or 680W at 24V) and batteries (lead-acid or lead-gel or AGM) can be connected.

An illuminated graphical LCD display is integrated into the controller. The keypad allows you to select between different displays and adjust the basic settings of the controller.

Additional features:

The adaptive deep discharge protection monitors and protects the battery from harmful deep discharge; alternatively, the night light function can be used. In addition, the optimized charging curve in combination with the hardware PWM control can achieve significantly faster and gentler battery charging. Dangerous gassing and overcharging are reliably prevented.

The controller automatically detects the 12/24V system voltage. The active reverse current blocking guarantees reverse current protection and allows an extremely low voltage drop between the module and the battery.

FOX charge controllers have proven their worth in use for 20 years. The charging algorithm has been systematically further developed for gentle and highly efficient charging of your battery systems. Thanks to the combination of sophisticated technology with robust components, FOX charge controllers are 100% reliable, safe, and durable. FOX charge controllers protect your batteries on long journeys and during your absence.

Further special features at a glance:

• 12/24V system voltage
• LCD display / charge status indicator
• Integrated temperature compensation
• Electronic overvoltage protection
• Charging with pulse width modulation
• Reverse current protection
• Easy installation
• Terminals for 16mm² cables
• Concealed connection terminals
• Night light function
• Deep discharge protection
