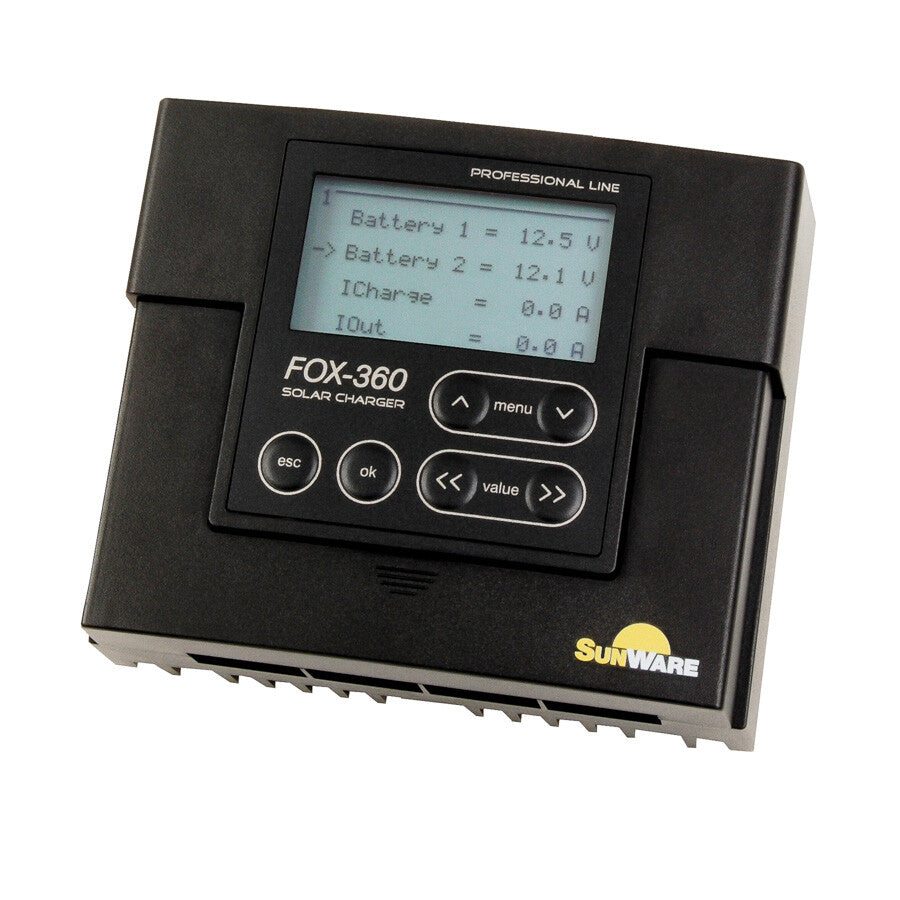

SunWare FOX-360 LCD Solar Charge Controller

Powerful Solar Controller with Optimal Charging Efficiency for 2 Batteries

The FOX-360 is a high-quality charge controller, suitable for use with 2 battery systems 12/24V and for module currents up to 20 amperes. All commercially available solar modules with an open-circuit voltage of up to 50V and batteries (lead-acid or lead-gel or AGM) can be connected.

Thanks to the second battery output, the FOX-360 is predestined for use in installations where two separate battery systems are to be charged completely independently of each other. The controllers monitor the solar system and maintain the battery optimally.

A backlit graphic LCD display is integrated into the controller. The keypad allows selection between different displays and adjustment of the controller's basic settings.

• Suitable for 2 battery systems
• 12/24V system voltage
• Charge status indicator with LCD display
• 3-stage PWM control
• Charging with pulse width modulation
• Integrated temperature compensation
• Reverse polarity protection
• Deep discharge protection
• Suitable for all battery types
• Audible warning before load shutdown
• Programmable night light function

The adaptive deep discharge protection monitors and protects the battery from harmful deep discharge; alternatively, the night light function can be used. In addition, the optimized charging characteristic curve in combination with the hardware PWM control can achieve significantly faster and gentler charging of the battery. Dangerous gassing and overcharging are reliably prevented.

The controller automatically detects the 12/24V system voltage. The active reverse current blocking guarantees reverse current protection and allows an extremely low voltage drop between module and battery.

FOX charge controllers have proven their worth in use for 20 years. The charging algorithm has been systematically further developed for gentle and highly efficient charging of your battery systems. Through the combination of sophisticated technology with robust components, FOX charge controllers are 100% reliable, safe and durable. FOX charge controllers protect your batteries on long journeys and during your absence.
