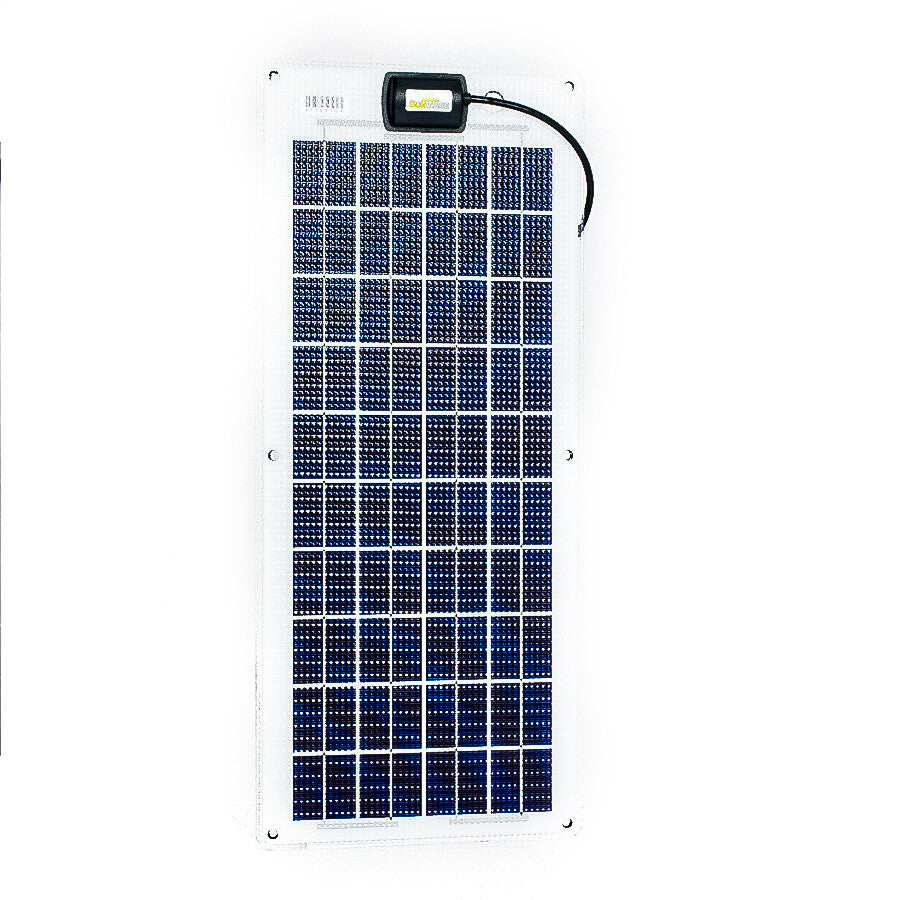

SunWare SW 20144 white, 22 Wp

SunWare SW Solar Module Series 20 White 22Wp 12V: High-Performance Energy Solutions for Marine Applications

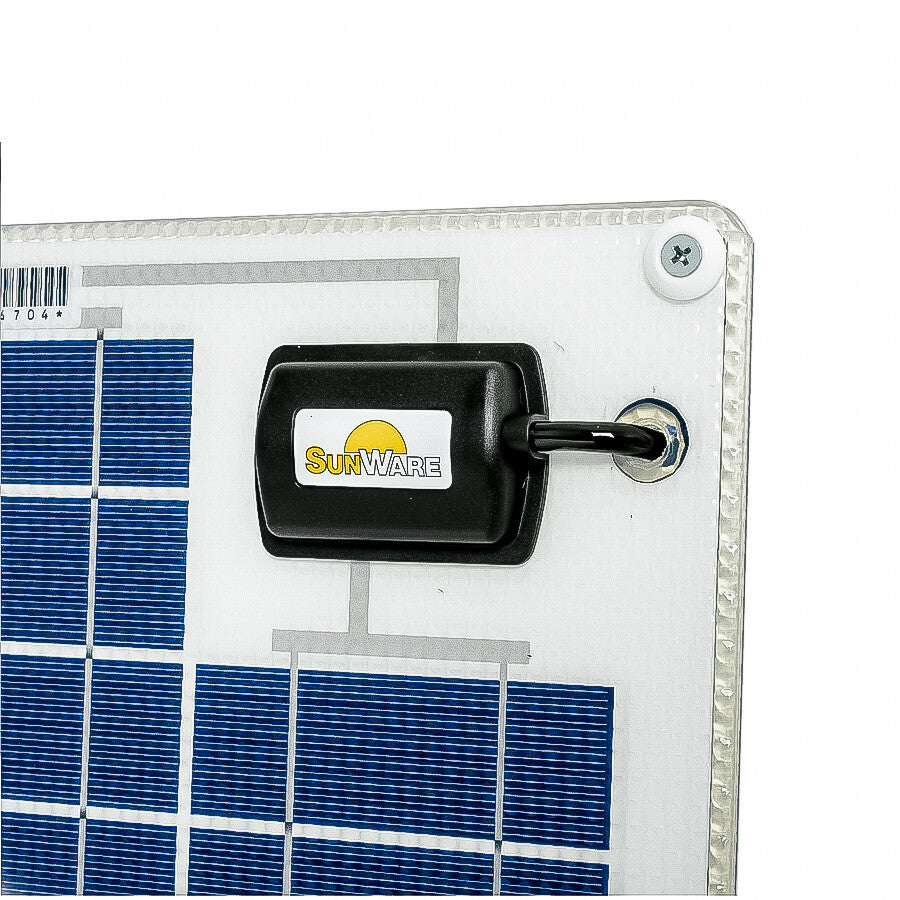

Product Introduction: Experience maximum energy efficiency at sea with the Marine Solar Modules Series-20, ideally designed for walk-on installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and saltwater-resistant, but also optimally suited for direct bonding or screwing onto the deck, with no back ventilation necessary. Equipped with only one connection cable at the front, these modules allow for straightforward installation.

Performance and Flexibility: The Marine Solar Modules Series-20 are characterized by their high performance even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures and allows for a maximum bend of 3%. Due to the special laminate structure, the modules are 100% sea and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only light and compact, but also offer outstanding power output thanks to the integrated monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Marine Solar Modules of the Series-20 can be securely mounted by screws, bonding, or with SunWare clips and are walkable even with boat shoes when permanently installed.

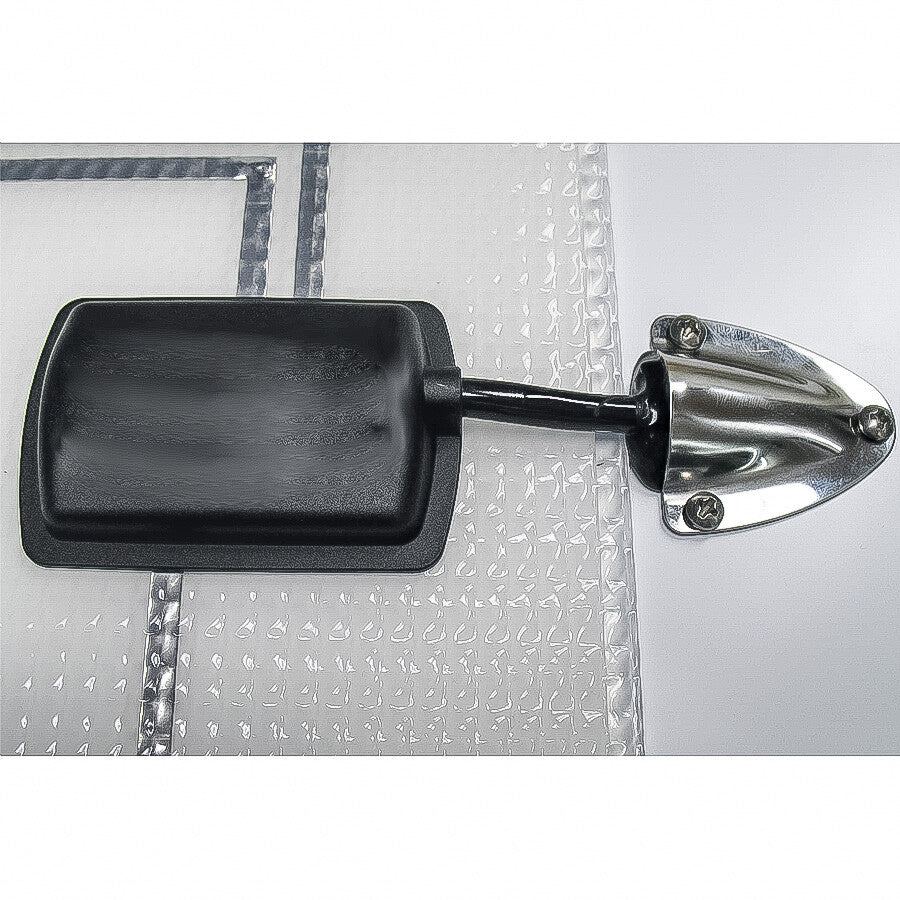

Installation Flexibility: The included 3-meter connection cable and the option to route the cable inside the deck increase installation flexibility.

Application and Reliability: Marine Solar Modules Series-20 are a reliable energy source specifically developed for demanding marine and saltwater use. They are the ideal choice for discerning boat owners who seek high functionality and lasting durability in an aesthetically pleasing design.

Documents & Downloads

• Datasheet Series 20
• Manual Series 20
• Technical Drawing
