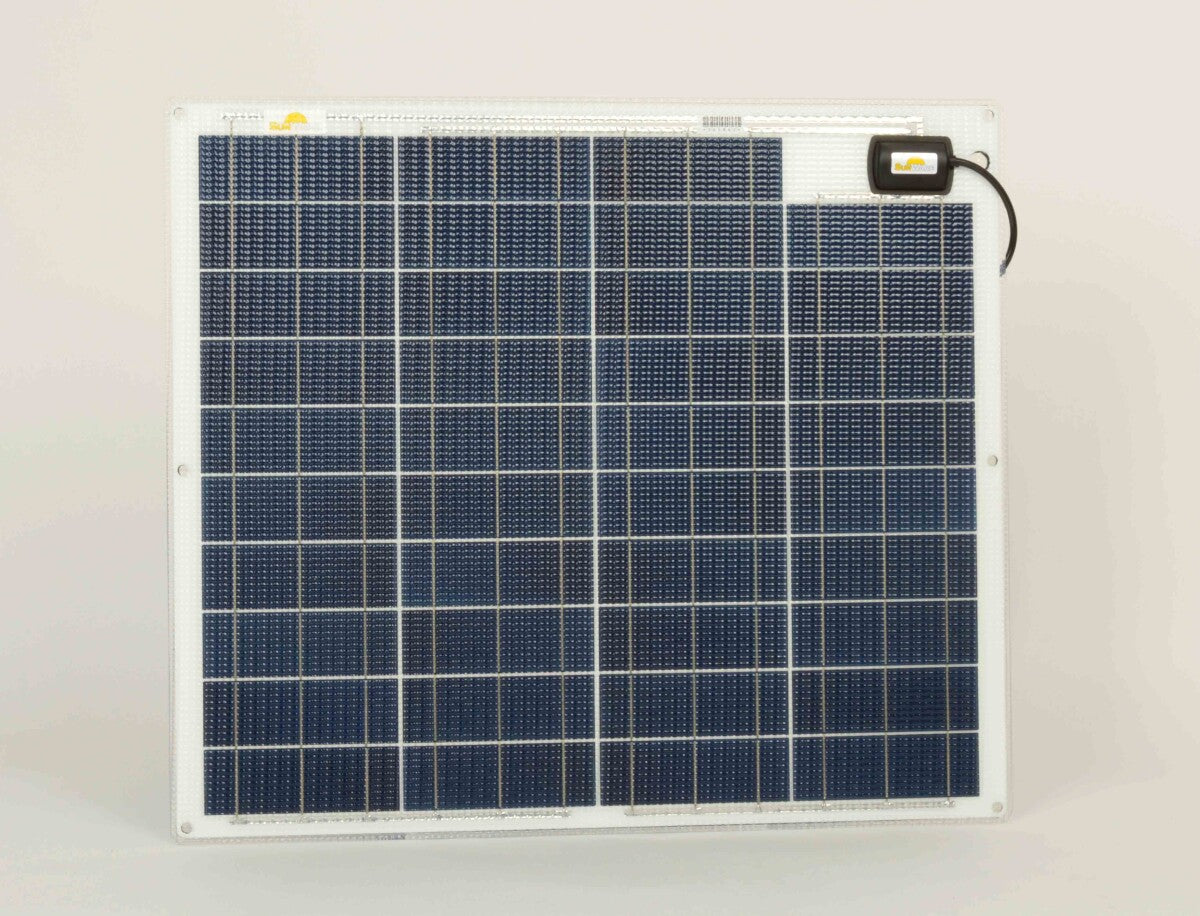

SunWare SW 20183 white, 68 Wp

SunWare SW Solar Module Series 20 White 68Wp 12V: High-Performance Energy Solutions for Marine Applications

Product Introduction: Experience maximum energy efficiency at sea with the Series-20 marine solar modules, ideally designed for walk-on installation directly on deck. Manufactured in Germany, these modules are not only extremely robust and saltwater-resistant but also optimally suited for direct gluing or screwing onto the deck, requiring no rear ventilation. Equipped with only one connection cable at the front, these modules allow for uncomplicated installation.

Performance and Flexibility: The Series-20 marine solar modules are characterized by their high performance even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures and allows for a maximum bendability of 3%. Due to the special laminate structure, the modules are 100% seawater and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only light and compact but also offer outstanding power output thanks to the built-in monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Series-20 marine solar modules can be securely mounted with screws, adhesive, or SunWare clips and are walkable even when permanently installed with boat shoes.

Installation Flexibility: The included 3-meter connection cable and the option to route the cable within the deck increase installation flexibility.

Use and Reliability: Series-20 marine solar modules are a reliable energy source specially developed for demanding marine and saltwater use. They are the ideal choice for demanding boat owners seeking high functionality and lasting durability in an aesthetically pleasing design.

Documents & Downloads

• Series 20 Data Sheet
• Series 20 Manual
• Technical Drawing
