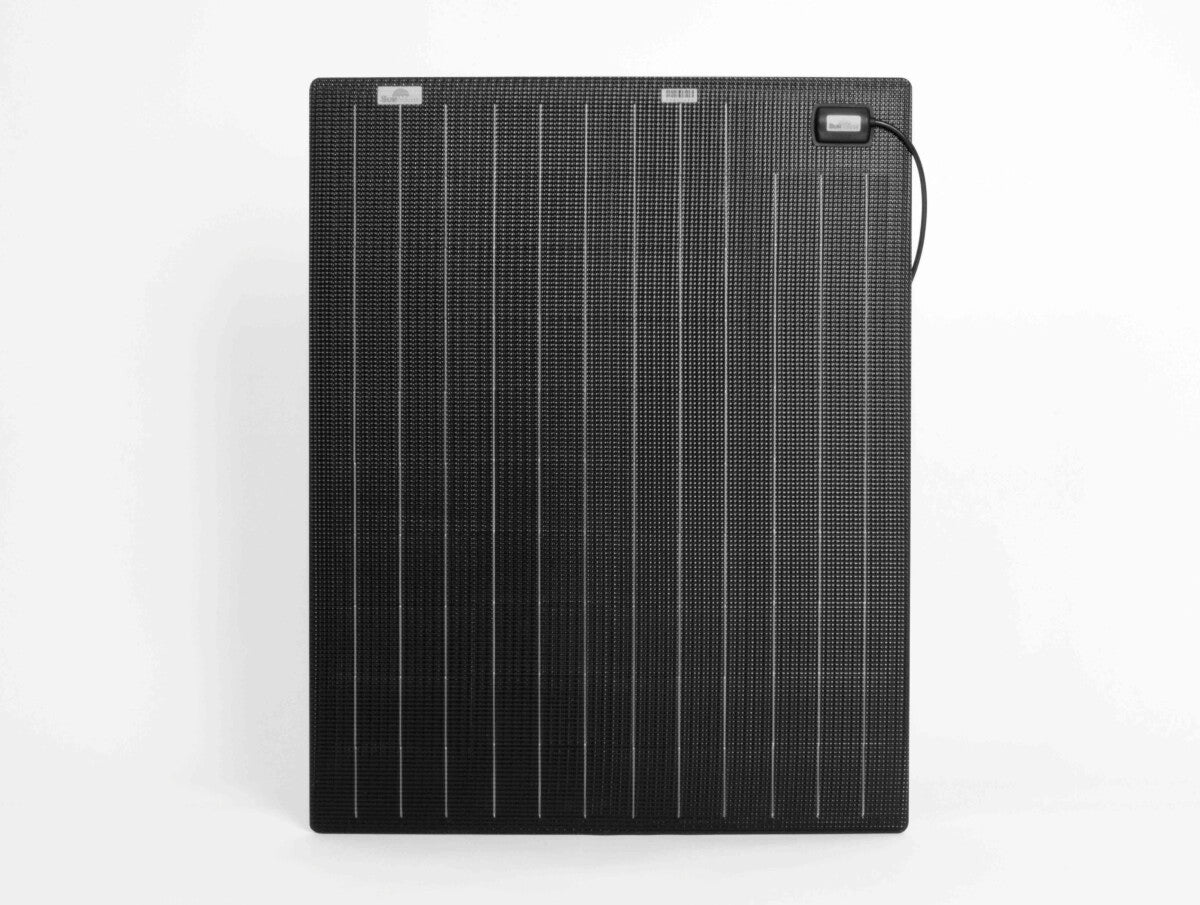

SunWare SW 20184 Black, 90 Wp

SunWare SW Solar Module Series 20 Black 90Wp 12V: High-Performance Energy Solutions for Marine Applications

Product Introduction: Experience maximum energy efficiency at sea with the Series-20 marine solar modules, ideally designed for walkable installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and saltwater-resistant, but also perfectly suited for direct bonding or screwing onto the deck, with no back ventilation necessary. Equipped with only one connection cable at the front, these modules allow for uncomplicated installation.

Performance and Flexibility: The Series-20 marine solar modules are characterized by their high performance, even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures and allows for a maximum bendability of 3%. Due to the special laminate structure, the modules are 100% sea and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only lightweight and compact, but also offer outstanding power output thanks to the integrated monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Series-20 marine solar modules can be firmly mounted with screws, adhesive, or SunWare clips and are walkable with boat shoes even when permanently installed.

Installation Flexibility: The included 3-meter connection cable, as well as the option to route the cable through the deck, increase flexibility during installation.

Use and Reliability: Series-20 marine solar modules are a reliable energy source specially developed for demanding marine and saltwater use. They are the ideal choice for discerning boat owners who seek high functionality and lasting durability in an aesthetically pleasing design.

Documents & Downloads

• Datasheet Series 20
• Manual Series 20
• Technical Drawing
