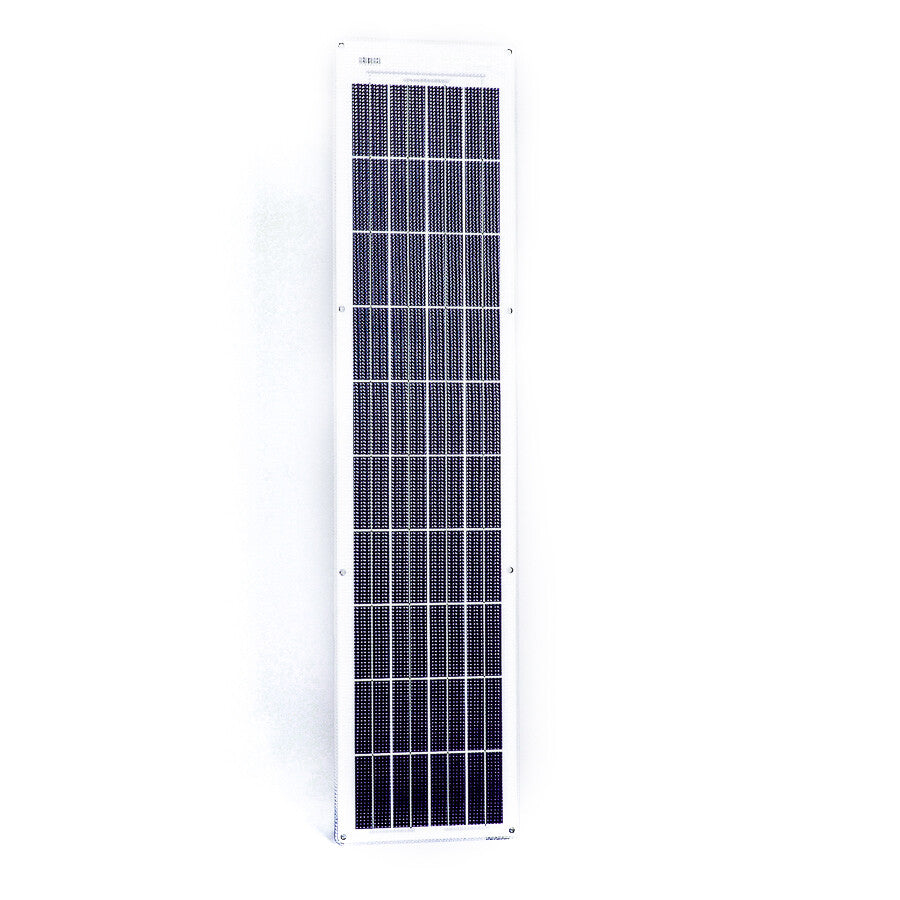

SunWare SW 40146, 42 Wp

Enjoy silent power generation on board with reliable technology thanks to marine solar panels!

SunWare solar modules have been specially developed and tested for use in marine and saltwater environments. These boat modules are absolutely maintenance-free, durable, and weather-resistant. Even with extreme UV exposure, whether in the Caribbean, the Mediterranean, or the North Sea – SunWare solar modules are a reliable partner everywhere.
Thanks to their versatile applicability and flexibility, SunWare solar modules can be mounted on over 90% of existing deck curvatures!

Overview of special features:

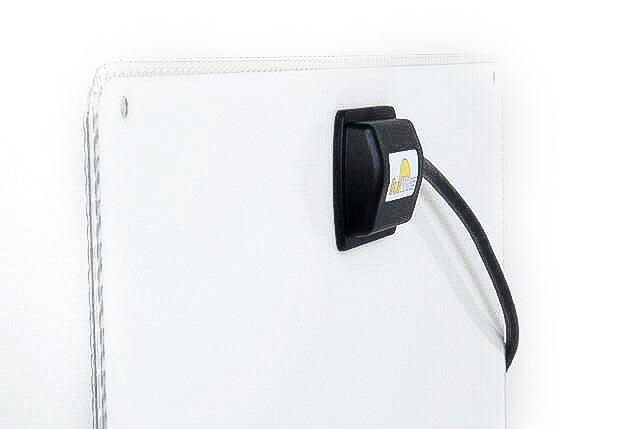

• Rear cable outlet
• Fully walkable surface
• Structured surface prevents slipping when wet
• Seawater and saltwater resistant due to special laminate construction of the module
• Shatterproof stability thanks to a stainless steel backing plate
• Installation flexibility as needed (max. 3%) thanks to innovative interlocking technology
• 40 extremely light-sensitive high-performance solar cells guarantee maximum power output
• Teflon-like protective film on the front and back – 5mm all-around, overlapping and welded
• Additional protective embedding of the solar cells in seawater-resistant, robust EVA film
• Cable outlet screwed, potted and watertight
• Easy to glue or screw on with mounting holes
• 100% Made in Germany

Further information

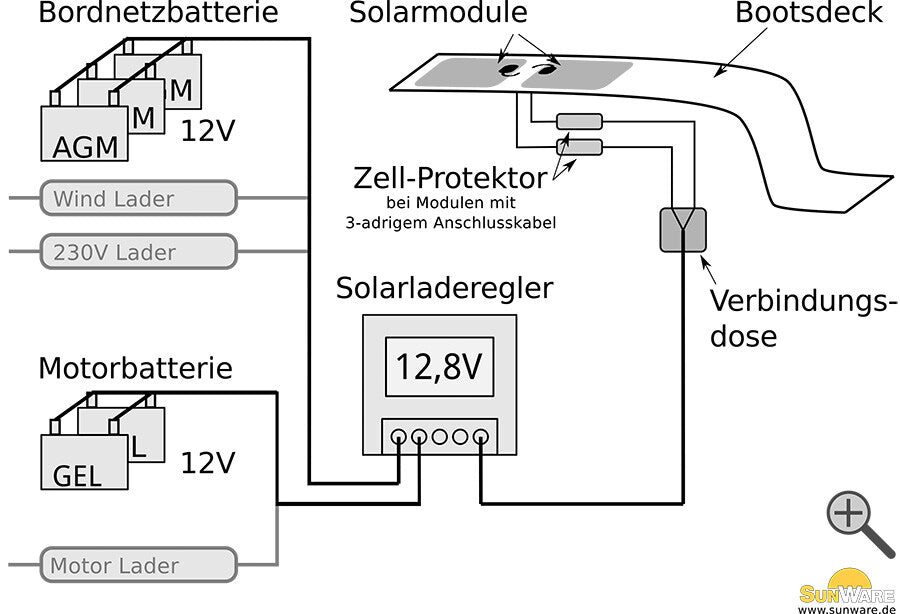

In addition to a 12V battery, you will also need a charge controller, which prevents the power supply and thus overcharging or, if necessary, deep discharge of the battery. It also ensures an optimal charging voltage and guarantees the necessary reverse current protection at night.
Please visit our category for charge controllers.
Of course, we have already put together complete solar kits for various requirements. These kits contain, in addition to the modules, all the materials necessary for installation, such as connection cables, adhesive, and sealant.
Further information can be found in the Solar Complete Kit category.
We are always looking for sophisticated and high-quality products to expand our range for you.

Enjoy your freedom with selected quality products from SolarKontor!

Documents & Downloads

• Datasheet Series-40
• Manual Series-40
