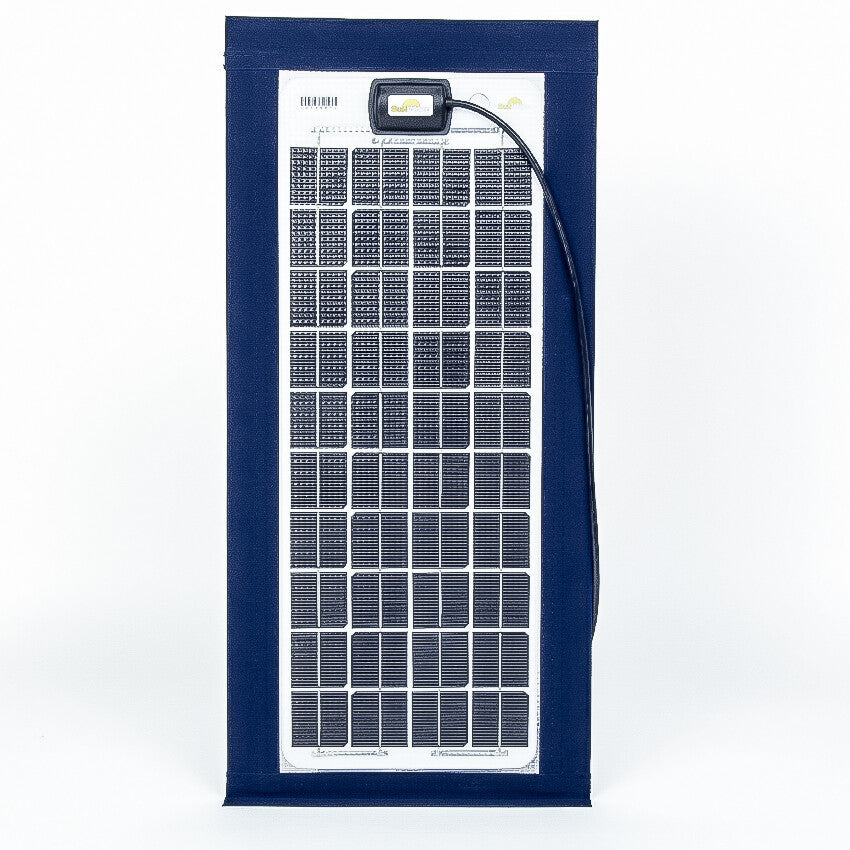

SunWare TX 11027, 20 Wp

SunWare TX Special Solar Module 20Wp 12V: Ideal for Use on Boat Covers or Sprayhoods

The SunWare TX Special Solar Module 20Wp 12V is specifically designed to either recharge 12V batteries or keep them in an optimal state of charge when mounted on boat covers or sprayhoods. This compact and versatile module can be easily attached to any textile surface and connected directly to the battery via a charge controller.

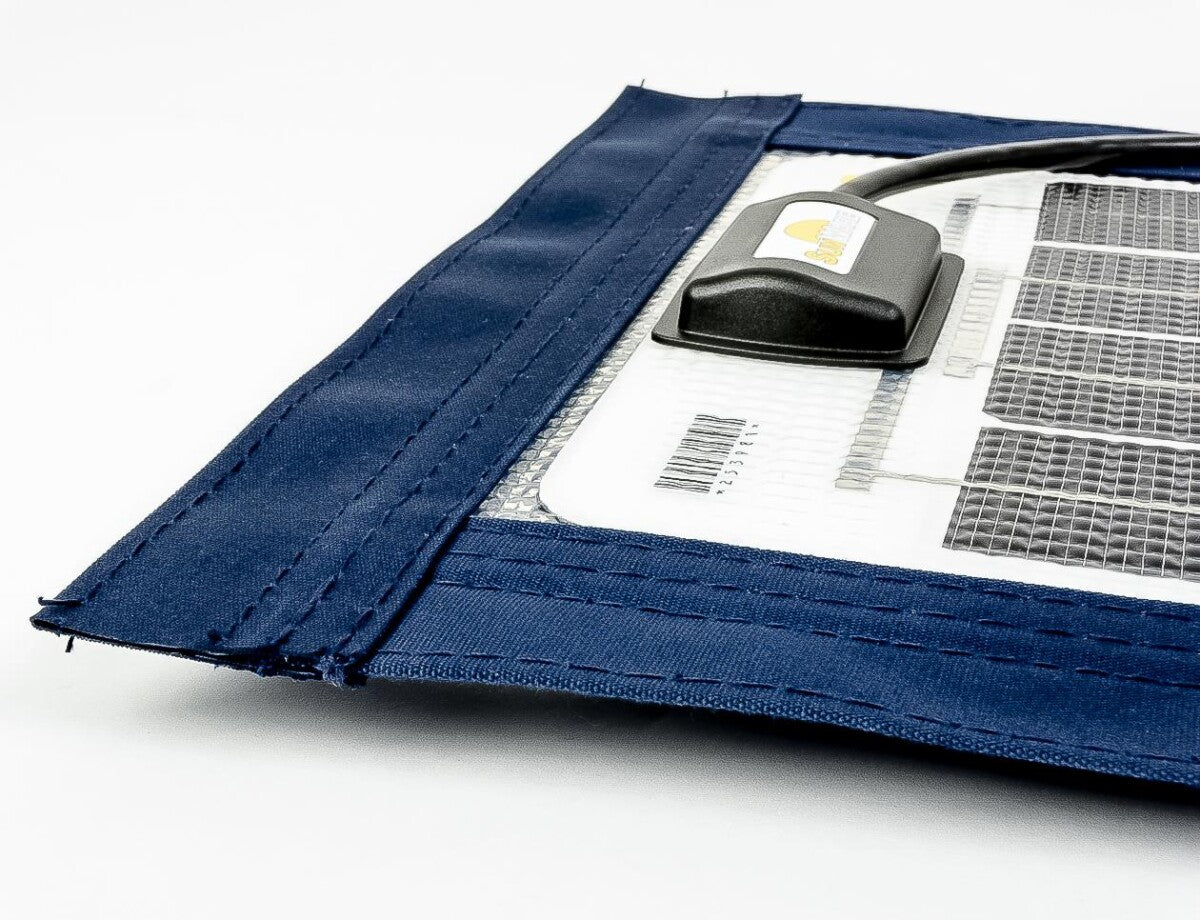

Mounting and Application: The module features a continuous, 2cm wide textile mounting edge, offering many flexible mounting options. You can use LOXX fasteners, snap-on eyelets, Velcro, zippers, or a keder profile for easy and secure attachment. This versatile mounting edge, made of robust boat cover fabric, allows for customizable mounting that is perfectly tailored to your individual needs.

Robustness and Weather Resistance: The module itself and the cable outlet are 100% waterproof and reliably resist both fresh and salt water. These properties make the TX-11027 solar module an optimal choice for marine applications and other outdoor activities where weather resistance is required.

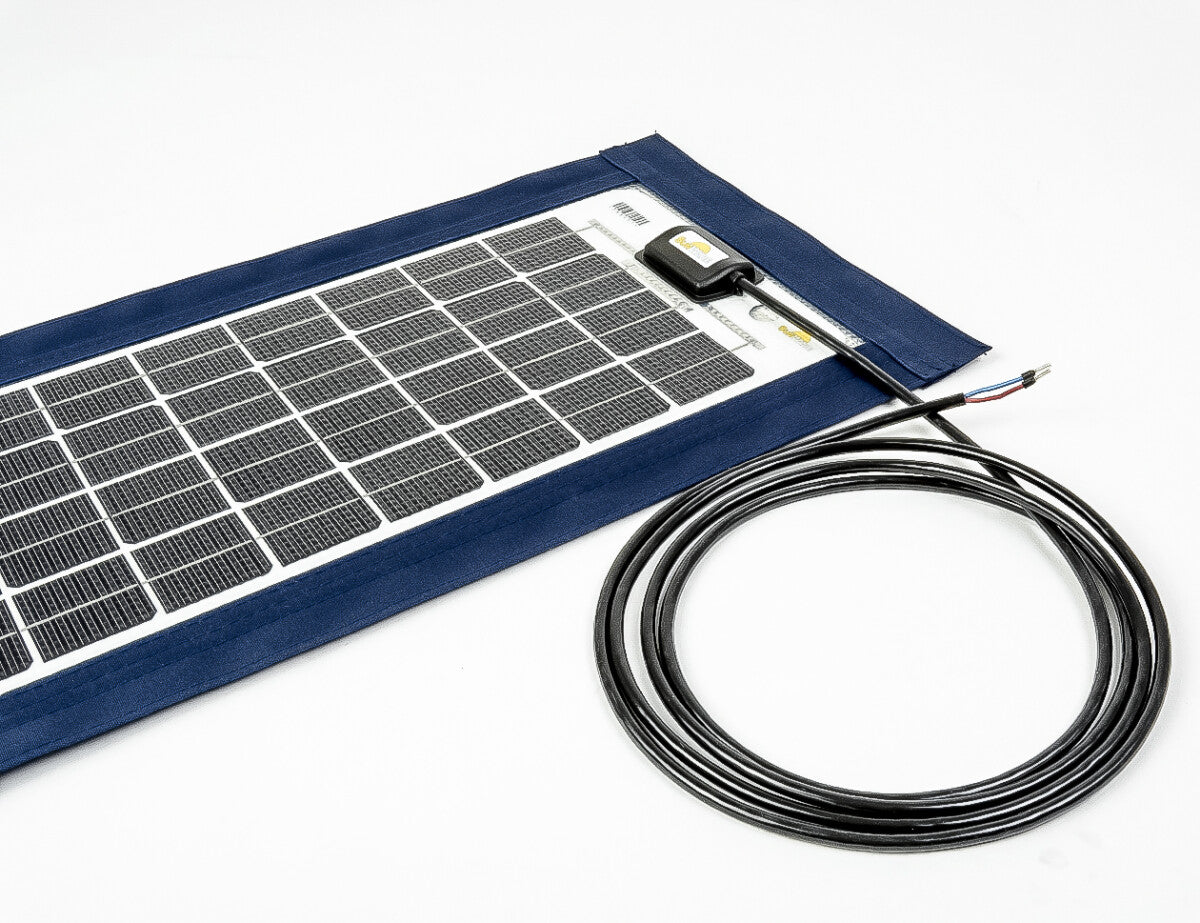

Flexibility and Compatibility: A 3-meter long connection cable with an open end is attached to the module, allowing you to combine it with various solar charge controllers as desired. This flexibility ensures that you always find the best possible charging solution for your situation.

Documents & Downloads

• Datasheet TX Series
• Manual TX Series
• Technical Drawing
