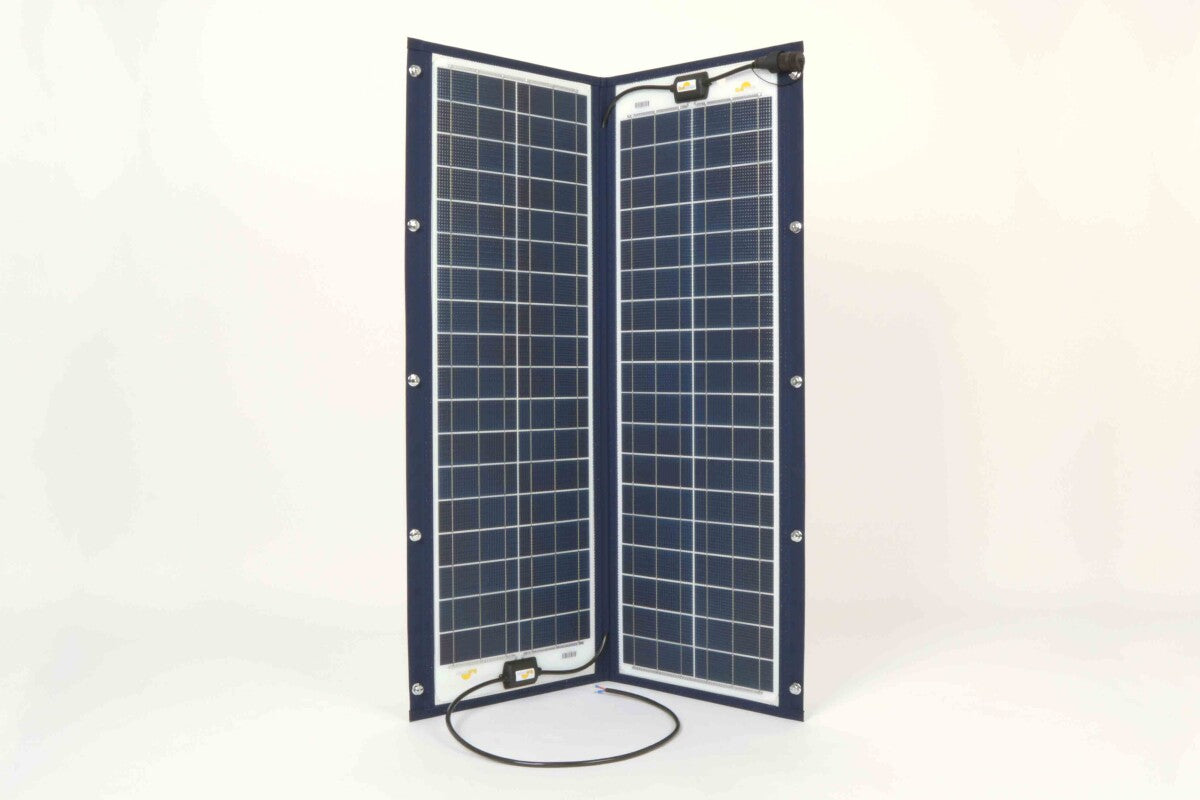

SunWare TX 22052+ 120 Wp, navy blue

SunWare TX+ Extension Solar Module 120Wp: Effortlessly Expand Your Solar System

Product Overview: The SunWare TX+ Extension Solar Module 240Wp offers the perfect solution for easily expanding your existing TX solar system. These modules are structurally identical to the standard TX modules but feature an additional extension socket, allowing for seamless integration into your current system.

Easy Expansion: If you already have a TX module installed and wish to expand your system, simply replace the existing module with the new TX+ module. The "old" TX module to be replaced is then plugged into the extension socket of the new module. An included extension socket facilitates this process, and a compatible plug is supplied with the module.

Installation and Compatibility: Please remember to check the polarity of the plugs and sockets before plugging them in for the first time. The blue negative lead must be connected to the pin with the grounding symbol, while the red positive lead must be connected to pin 1. The cables and plug system are designed for loads up to 16A, so, for example, multiple modules can be connected without exceeding the maximum plug load.

Important Note: Not all modules come directly with an extension plug, as every plug and socket poses potential corrosion risks, especially in saline environments. Ensure that with TX+ modules, either the waterproof cap is screwed on or a plug is inserted into the socket to guarantee a durable and secure connection. With the SunWare TX Extension Solar Module 240Wp, you can efficiently expand your solar system and get maximum energy from your system.

Documents & Downloads

• Datasheet TX Series
• Manual TX Series
• Technical Drawing
