SunWare TX Rail 22039 Solar Module – 90 Wp for flexible railing mounting

The SunWare TX Rail 22039 Solar Module is the ideal solution if you want to generate solar power efficiently and in a space-saving manner on your boat or yacht. With 90 Wp peak power, robust textile edging, and a well-thought-out railing mounting option, this module provides reliable energy – even in difficult lighting conditions. Developed and manufactured Made in Germany, the TX Rail 22039 stands for maritime quality at the highest level.

Maximum performance – even with vertical mounting

The TX-Rail series from SunWare was specifically designed for railing mounting. With the included carabiner hooks, the solar module can be easily hung on the upper wire rope. Due to the reflection of sunlight on the water surface, the module achieves excellent yields even in a vertical position – ideal when sailing or at anchor.

The TX-Riser system, which is included in the scope of delivery, ensures even greater efficiency. This allows you to extend the solar module and align it optimally to the sun to ensure the best possible charging process at all times.

Independent panels – constant energy generation

• PV power: 90 Wp
• Voltage: 12 V DC
• Two independent module panels
• Textile edging with Tenax fasteners
• 3 m connection cable (2 × 2.5 mm²) up to the upper railing rope
• 10 m supply cable, waterproof plug & socket with cover cap
• Foldable & easy to store

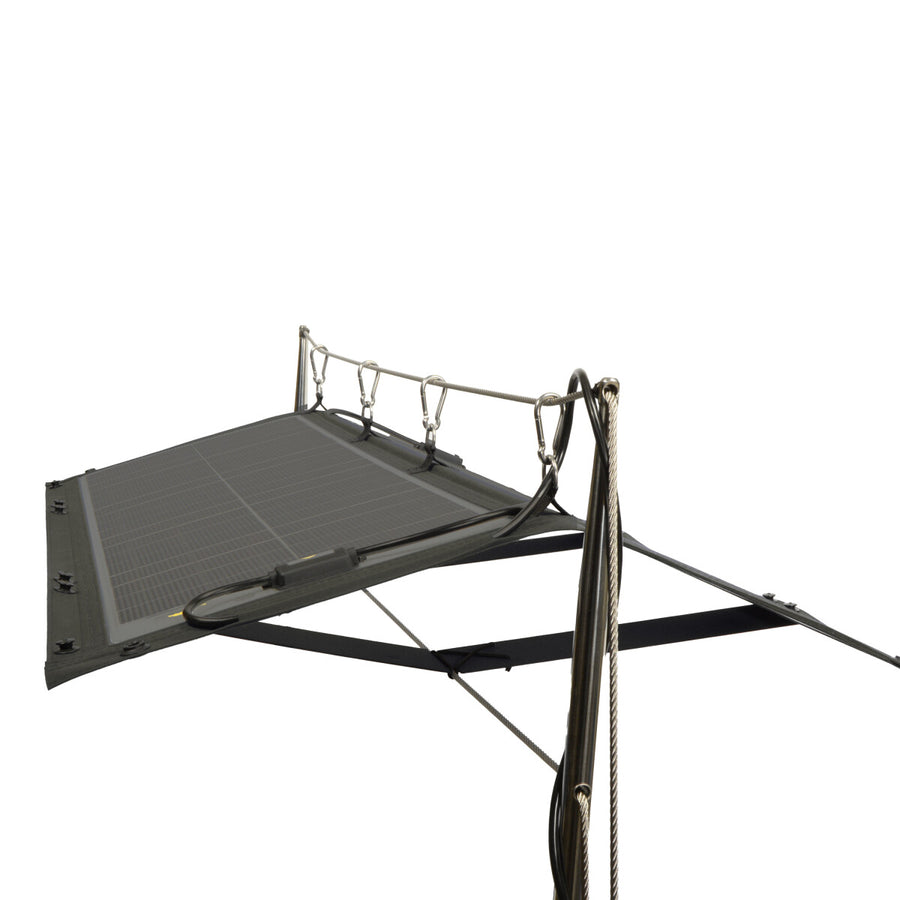

Easy railing mounting

• Attachment via D-rings & carabiner hooks
• Two-panel design for flexible positioning
• LOXX fasteners for stabilization in wind & waves
• TX-Riser Twin for extendable solar tracking
• Completely foldable, even with risers mounted
• Railing remains usable as a handrail

Robust, weatherproof & marinetime-tested

• Seawater- & UV-resistant materials
• Crystalline high-performance cells
• Shatterproof, flexible construction
• Waterproof plug connections
• 100% Made in Germany

Your advantages at a glance

• 90 Wp peak power – compact & efficient
• Easy railing mounting with carabiners & D-rings
• TX-Riser for optimal solar tracking
• Independent module panels for constant performance
• Seawater-resistant, foldable & maintenance-free
• Incl. 10 m cable & waterproof plug system

Compact, flexible & reliable

The SunWare TX Rail 22039 Solar Module combines high efficiency, robust processing, and practical handling. If you are looking for a reliable 90 Wp solar module for your railing that delivers strong yields even in a vertical position, this model is the perfect choice for your maritime energy setup.

Documents & Downloads

• Datasheet TX Rail 22039
• Technical Drawing
