Super B Epsilon 12V 100Ah
Super B Epsilon 12V 100Ah
SKU:WS502-1010
Couldn't load pickup availability
Super B Epsilon 12V 100Ah

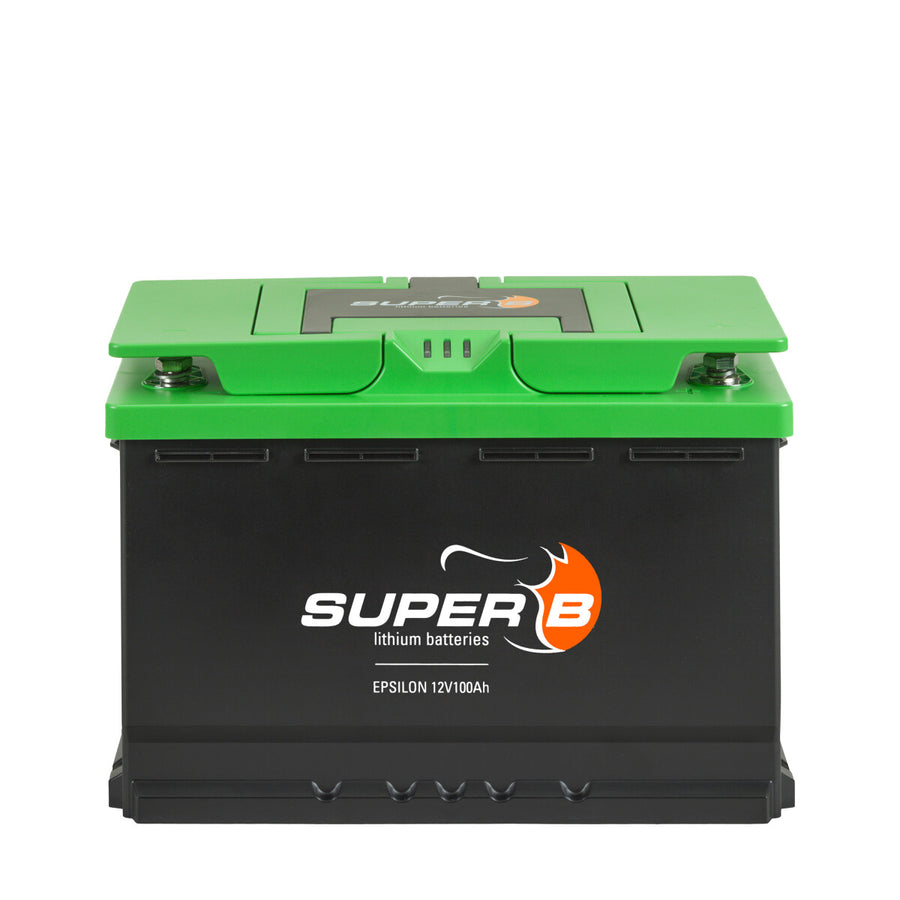

The SUPER B EPSILON 12V 100Ah Lithium Iron Phosphate battery sets new standards in terms of capacity and safety in a standard casing. Equipped with an integrated Battery Management System (BMS) with low self-consumption, it ensures safety, functionality, and user-friendliness. It also has an automatic heating function that enables charging in cold conditions. You can monitor it via an innovative Bluetooth app.
Bluetooth Connection & Battery Monitoring
The Epsilon 12V 100Ah offers comprehensive battery monitoring. The following criteria can be monitored:
- Status
- Voltage
- Current
- Temperature
- State of Charge
- Remaining Runtime
You can also monitor the condition manually via Bluetooth and LED indicators.
Super B batteries use safe Lithium Iron Phosphate technology, also known as LiFePO4, which stands for maximum safety and longevity. Furthermore, the following features characterize the new generation of Super B batteries:
- A-grade cells = highest possible energy density
- LiFePO4: Lithium Iron Phosphate technology
- Aluminum terminals including temperature sensors
- Integrated short-circuit protection
- BMS: Battery protection against overload
- Automatic heating function
- System communication via CANopen, LIN, and CI-Bus
- Adaptive cell balancing
- Robust casing made from environmentally friendly materials
- Bluetooth connection for monitoring battery status
- "Be in Charge" app for iOS and Android
| Technical Data | Epsilon 12V 100Ah |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Capacity | 100 Ah |
| Nominal Power | 1280 Wh |
| Nominal Voltage | 12.8 V |
| Open Circuit Voltage | 13.2 V |
| Cycle Life | > 5000 Cycles |
| Self-Discharge | > 3% per month |
| Charging | |
| Maximum Charge Current | 90 A |
| Charge Voltage | 14.3 - 14.6 V |
| Discharging | |
| Discharge Cut-off Voltage | 8 V |
| Max. Continuous Discharge Current | 190 A |
| Discharge Pulse Current | 300 A |
| General Information | |
| Temperature Range (Discharging) | -20 °C to 60 °C |
| Temperature Range (Charging) | -30 °C to 45 °C |
| Temperature Range (Storage) | -20 °C to 45 °C |
| Weight | 10.7 kg |
| Dimensions | 278 x 175 x 190 mm |
