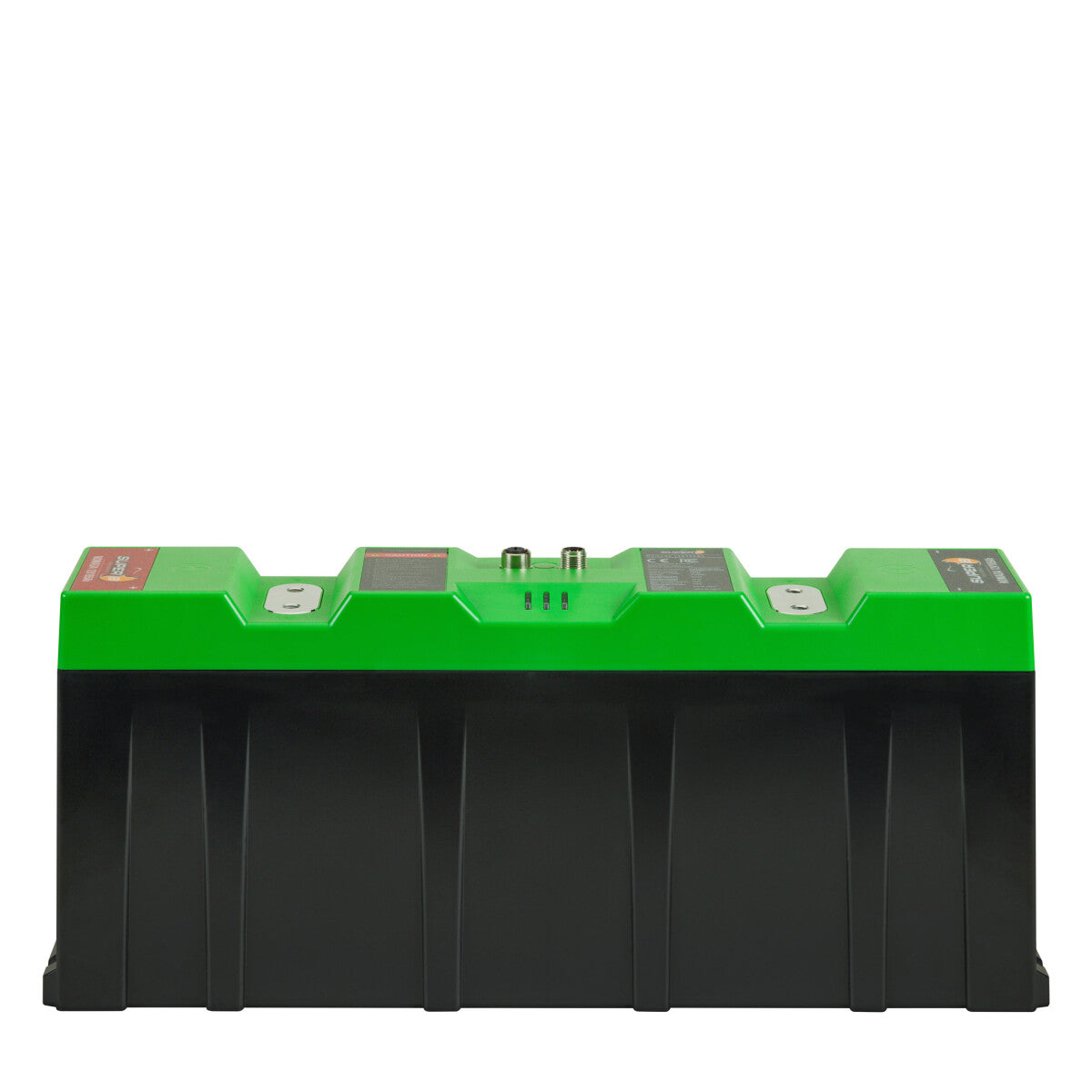

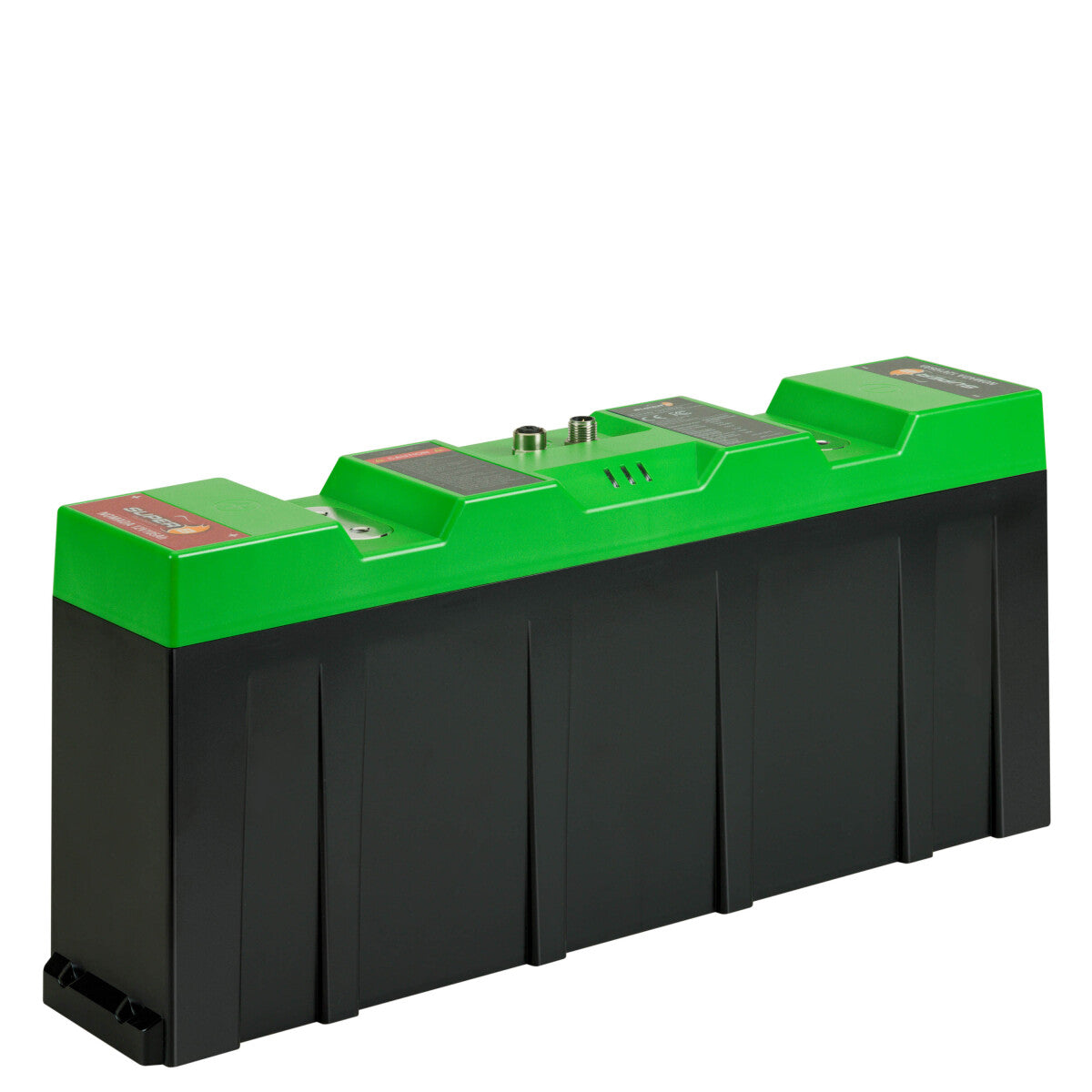

Super B Nomada 12V 105Ah
Super B Nomada 12V 105Ah
SKU:WS502-1013
Couldn't load pickup availability
Super B Nomada 12V 105Ah
The Super B Nomada 12V105Ah revolutionizes power supply with its modular lithium iron phosphate (LiFePO4) battery, offering a nominal capacity of 105 Ah. This latest addition to our range of batteries stands out with its compact, lightweight, and modular design, allowing for easy expansion of your energy system. This traction battery is ideal for a variety of applications such as marine, off-road vehicles, material handling, energy storage, uninterruptible power supply (UPS), buses, and trucks. With this battery, a system up to 840 Ah (max. 8 in parallel) or up to 800 V (max. 60 in series) can be configured effortlessly.
The Super B Nomada 12V105Ah combines advanced technology, an integrated battery management system (BMS), and intelligent software to provide a robust, safe, and user-friendly energy storage solution.
Features for your safety and reliability:
- Traction battery: Specifically designed for high demands and durability.
- Safe lithium technology: Lithium Iron Phosphate (LiFePO4) offers maximum safety.
- Integrated BMS: Monitors and optimizes battery performance and lifespan.
- PC-ABS (Polycarbonate) | UL94-V0 housing: Ensures high stability and fire protection.
- Connection options: Equipped with terminals for 2 x M8 screws.
- CAN-Open interface: Enables detailed battery monitoring and data history storage.
- Adaptive cell balancing: Guarantees consistent performance and maximizes lifespan.
- Flexibility: Allows both parallel and series connection for system-wide adjustments.
Rely on the safety and efficiency of lithium iron phosphate technology in Super B batteries – the safest available technology on the market today. Together with custom housings and advanced electronics, these batteries offer an unbeatable combination of safety, performance, and durability.
| Technical Data | Nomada 12V 105Ah |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Capacity | 105 Ah |
| Nominal Energy | 1344 Wh |
| Nominal Voltage | 12.8 V |
| Open Circuit Voltage | 13.2 V |
| Cycle Life | > 3500 Cycles |
| Self-Discharge | > 3% per month |
| Charging | |
| Maximum Charge Current | 105 A |
| Charge Voltage | 14.3 - 14.6 V |
| Discharging | |
| Discharge Cut-off Voltage | 10 V |
| Max. Continuous Discharge Current | 105 A |
| Discharge Pulse Current | 315 A |
| General Information | |
| Temperature Range (Discharge) | -20 °C to 55 °C |
| Temperature Range (Charge) | 0 °C to 55 °C |
| Temperature Range (Storage) | -20 °C to 45 °C |
| Weight | 10 kg |
| Dimensions in mm | 437 x 90 x 175 mm |
