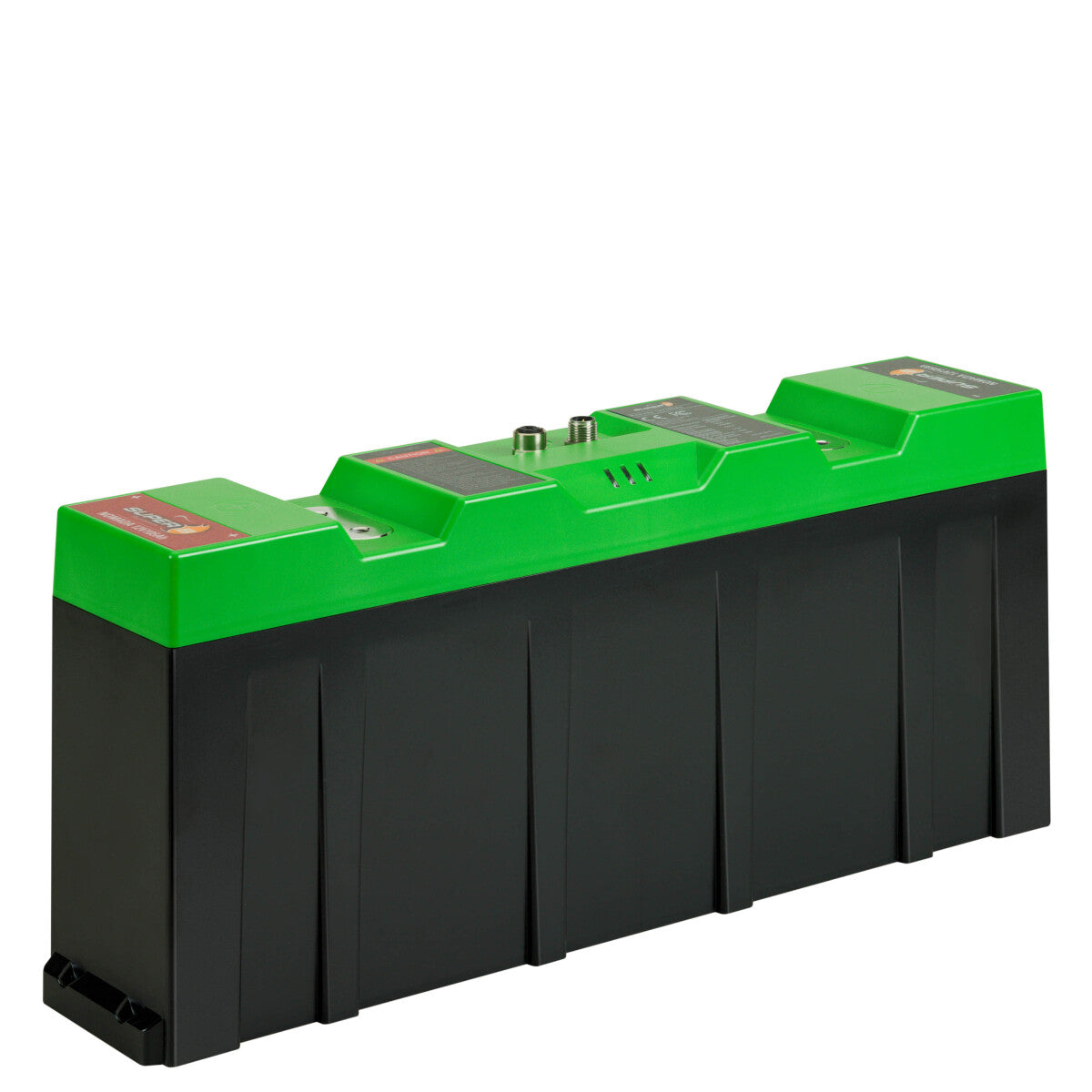

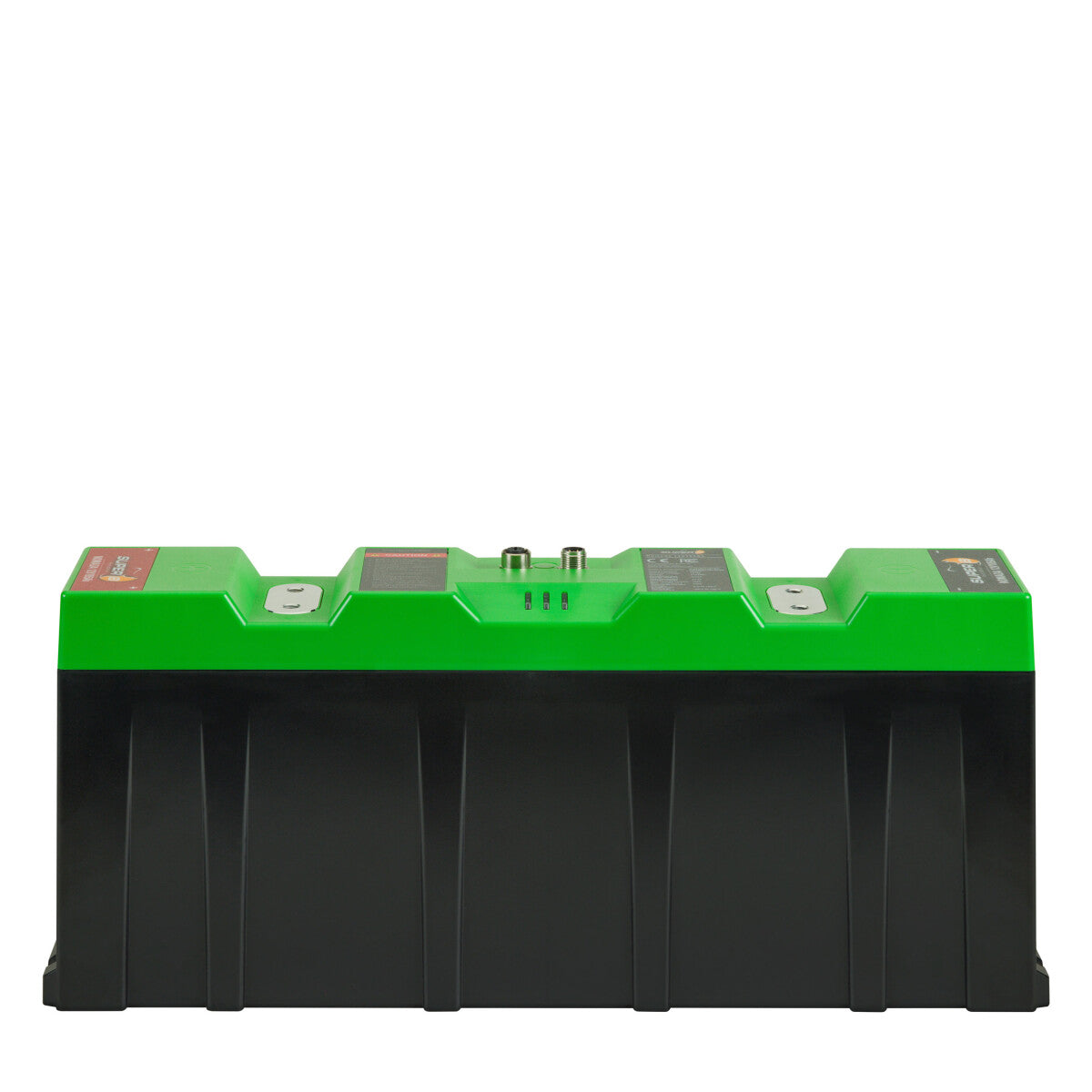

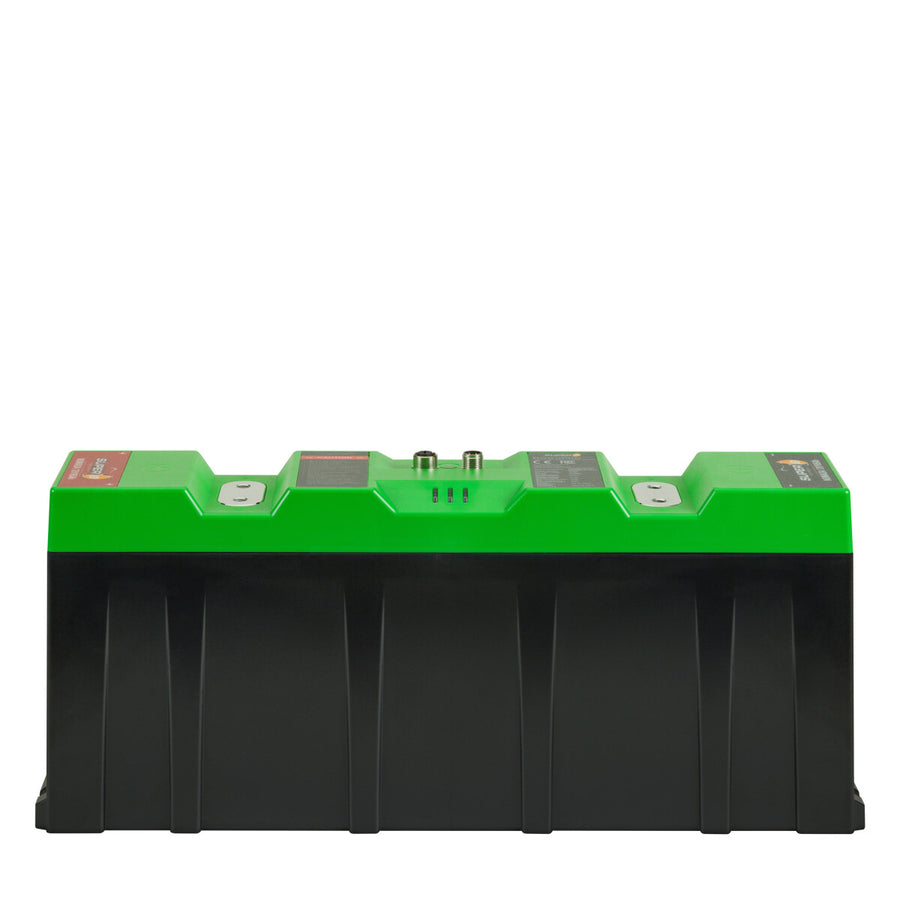

Super B Nomada 12V 105Ah-LT
Super B Nomada 12V 105Ah-LT
SKU:WS502-1012
Couldn't load pickup availability
Super B Nomada 12V 105Ah-LT
The Nomada 12V105Ah-LT expands the range of modular lithium iron phosphate (LiFePO4) batteries with an impressive nominal capacity of 105 Ah. Its lightweight and compact design allows for easy expansion of your energy system, making it an ideal choice for a variety of applications – from marine and off-road vehicles to material handling and energy storage, as well as uninterruptible power supplies (UPS), buses, and trucks. With the ability to configure systems up to 840 Ah by paralleling a maximum of eight batteries, or up to 800 V by seriess-connecting up to 60 batteries, this battery offers exceptional flexibility and scalability.
Battery Monitoring and Heating Function:
The Nomada 12V105Ah-LT combines state-of-the-art technology with an integrated battery management system (BMS) and intelligent software to create a robust, safe, and user-friendly energy storage solution. The fully automatic heating function, which allows the battery to be charged even in freezing temperatures, deserves special mention.
Key Features and Safety Aspects:
- Designed as a traction battery, it meets the highest demands in terms of performance and reliability.
- LiFePO4 technology ensures maximum safety and longevity among lithium battery technologies.
- An integrated BMS protects against overcharging, deep discharge, overheating, and short circuits, and supports adaptive cell balancing.
- The PC-ABS (Polycarbonate) housing, classified according to UL94-V0, offers increased protection against external influences.
- M8 screw terminals ensure a secure and stable electrical connection.
- A CAN-Open interface allows for precise battery monitoring and access to detailed battery status data.
- Battery monitoring and history memory provide valuable insights into the battery's operating condition.
- The fully automatic heating function allows charging below 0 °C, which significantly improves usability in cold environments.
Super B batteries rely on the proven and safe lithium iron phosphate (LiFePO4) technology, which is considered one of the most reliable and safest battery technologies on the market. Customized housings and sophisticated electronics further enhance safety and contribute to maximizing battery life.
| Technical Data | Nomada 12V 105Ah-LT |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Capacity | 105 Ah |
| Nominal Power | 1344 Wh |
| Nominal Voltage | 12.8 V |
| Open Circuit Voltage | 13.2 V |
| Cycle Life | > 3500 Cycles |
| Self-Discharge | > 3% per month |
| Charging | |
| Maximum Charging Current | 105 A |
| Charging Voltage | 14.3 - 14.6 V |
| Discharging | |
| Discharge Cut-off Voltage | 10 V |
| Max. Continuous Discharge Current | 105 A |
| Pulse Discharge Current | 315 A |
| General Information | |
| Temperature Range (Discharge) | -20 °C to 55 °C |
| Temperature Range (Charge) | 0 °C to 55 °C |
| Temperature Range (Storage) | -20 °C to 45 °C |
| Weight | 10 kg |
| Dimensions in mm | 437 x 90 x 175 mm |
