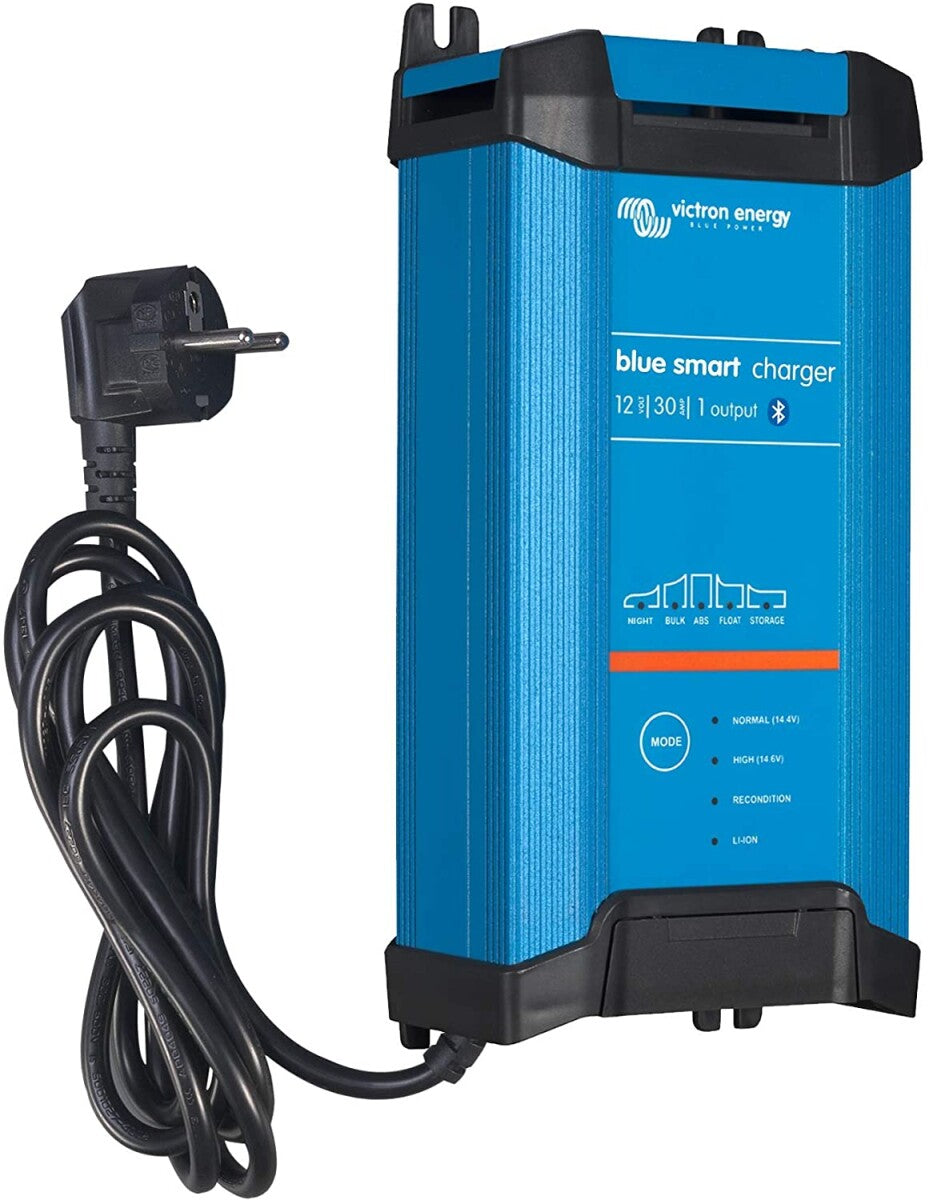

Victron Blue Smart IP22 Battery Charger Bluetooth 12/30 1 Output

High Efficiency

With an efficiency of up to 94%, these chargers generate up to four times less heat compared to the industry standard. Furthermore, after the battery is fully charged, power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.

Adaptive 6-stage charging algorithm:

Test - Bulk - Absorption - Recondition - Float - Storage The Blue Power charger is characterized by its microprocessor-controlled, "adaptive" battery management. "Adaptive" means that the charging process is automatically adjusted to the type of battery use.

Storage Mode:

Less maintenance and aging when the battery is at rest: Storage mode is activated whenever no discharge has occurred within 24 hours. The float voltage is then reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimize gas evolution and thus prevent corrosion of the positive plates. Once a week, the voltage is increased to the gassing voltage level. This achieves a type of equalization charge that prevents electrolyte stratification and sulfation - the two main reasons for premature battery failure.

Also charges Lithium-ion (LiFePO4) batteries

LiFePO4 batteries are charged with a simple constant current phase - constant voltage phase - float voltage phase algorithm.

NIGHT and LOW settings

When the device is in NIGHT or LOW mode, the output current is reduced to a maximum of 25% of the nominal output, and the charger operates completely silently. NIGHT mode ends automatically after 8 hours. LOW mode can be manually exited. Overheating protection: The output current is reduced if the temperature rises to up to 50°C, but the Blue Power charger does not fail.

Technical Data

Documents & Downloads

• Datasheet
