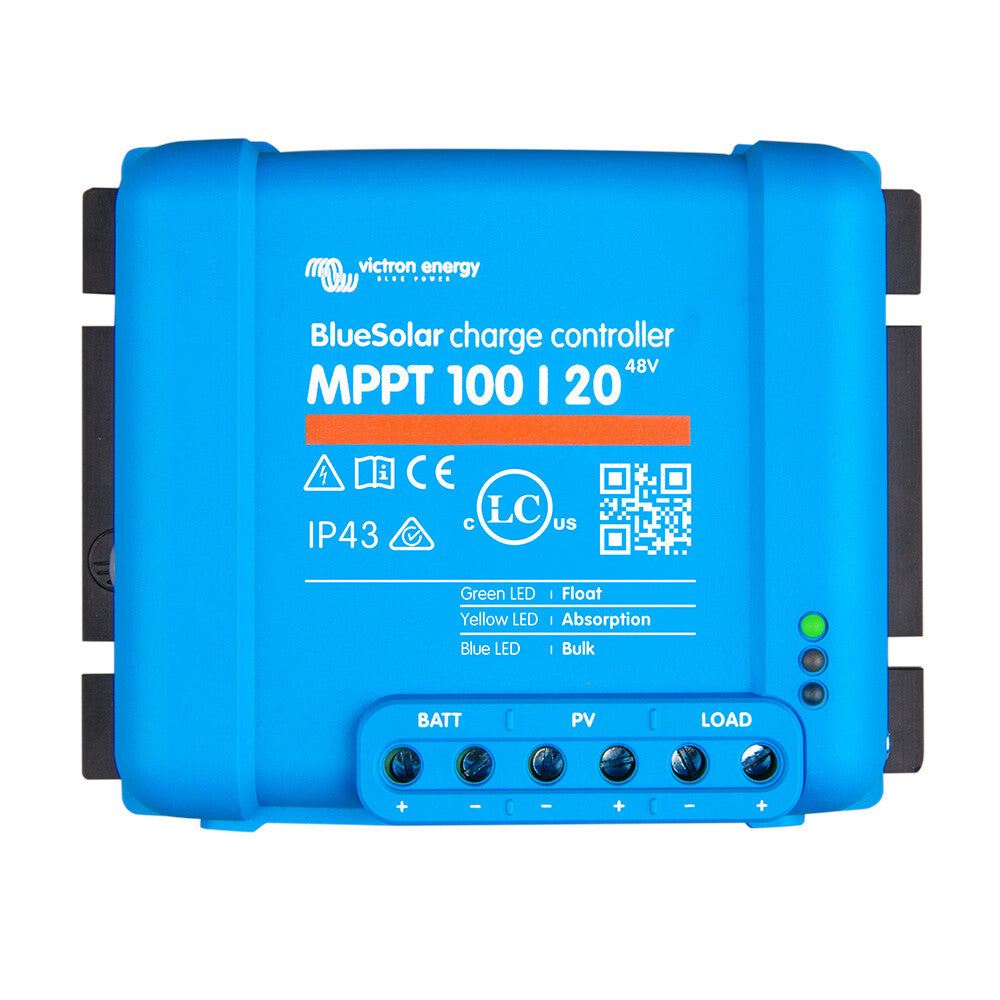

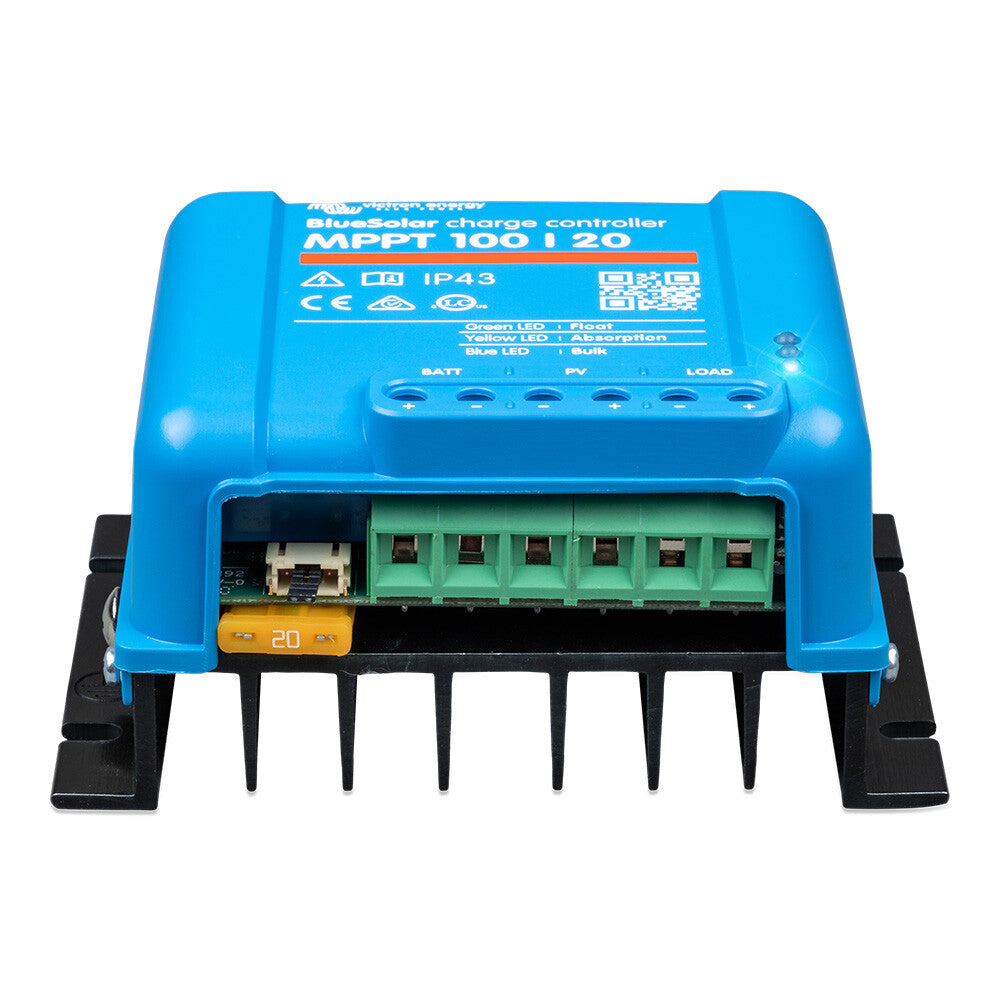

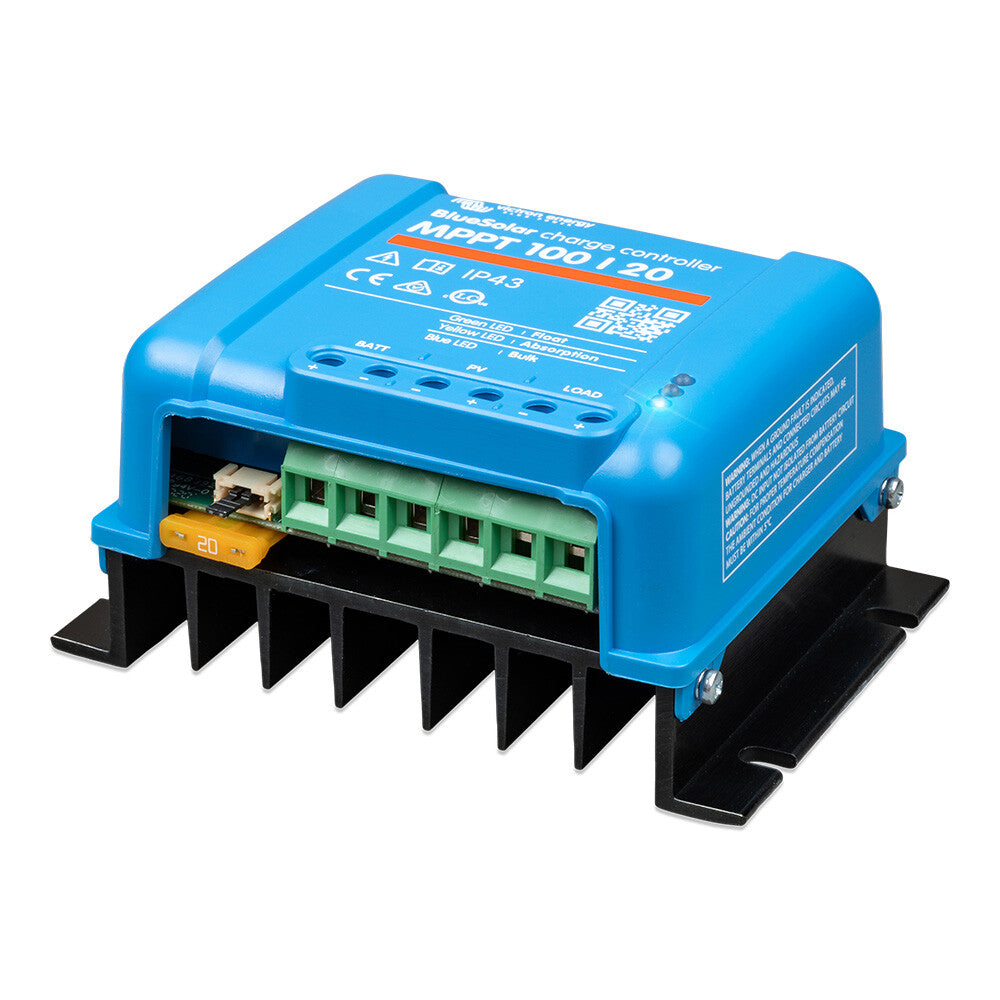

Victron BlueSolar MPPT 100/20 Charge Controller (up to 48 V)

Name: Victron BlueSolar MPPT 100/20 Charge Controller (up to 48 V)
Brand: Victron Energy
SKU: WS300-3145
Price: 106.21 EUR
Availability: InStock

SKU:WS300-3145

€106,21 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

MPP Solar Charge Controller MPPT 100/20 by Victron

A charge controller is the heart of every solar system, connecting the solar panel to the battery. The voltage, which changes throughout the day, is converted by the solar controller using powerful technology into a voltage adapted to the loads or optimized for ideal and gentle battery charging.

Ultra-fast MPPT tracking
Especially in overcast conditions, when light intensity changes constantly, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.

Intelligent battery management with the BatteryLife Algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the constant voltage is reached. From this point on, the load disconnect threshold is modulated so that the constant voltage is reached approximately once a week. The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms that always switch between "partially charged" and "fully charged" (due to low self-discharge).

Internal temperature sensor
An internal temperature measurement unit is, of course, built-in, so that constant and float charge voltages are temperature-compensated. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage detection
The MPPT 100 / 20 automatically adapts to a 12 V, 24 V, or 48 V system.

Three-stage charging: Instead of simply charging constantly up to the charging voltage, an innovative staged system is used. (Constant current, constant voltage, and float charge phase.)

Technical Data	BlueSolar MPPT 100 / 20
Battery voltage	12 V / 24 V / 48 V
Rated charge current	20 A
Rated PV power 12 V	290 W
Rated PV power 24 V	580 W
Rated PV power 48 V	1160 W
Max. PV open circuit voltage	100 V
Max. PV short circuit current	20 A
Efficiency	98 %
Constant charge voltage	14.4 V / 28.8 V / 57.6 V
Float charge voltage	13.8 V / 27.6 V / 55.2 V
Operating temperature	- 30 °C - + 60 °C
Weight	0.65 kg
Dimensions	100 x 113 x 60 mm
