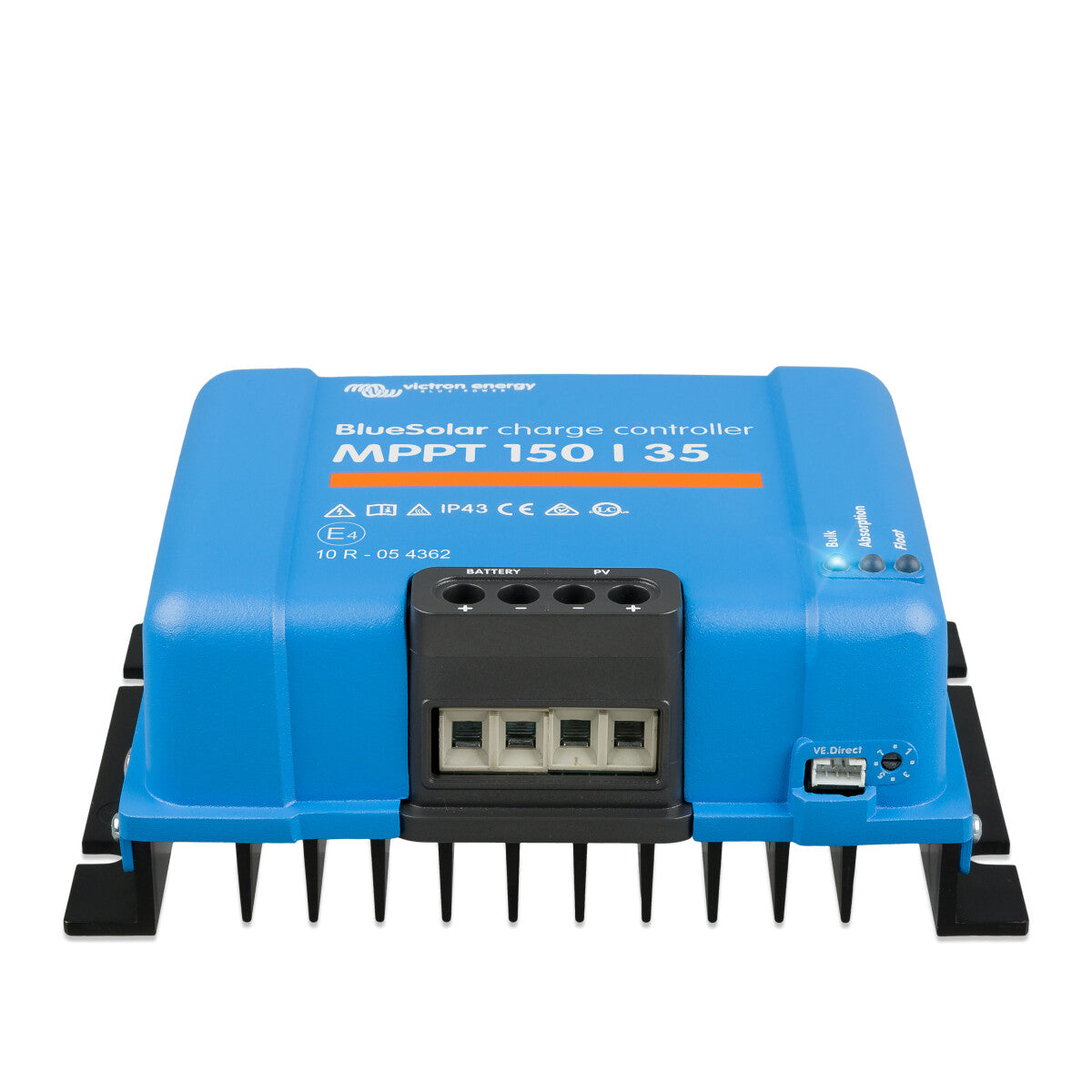

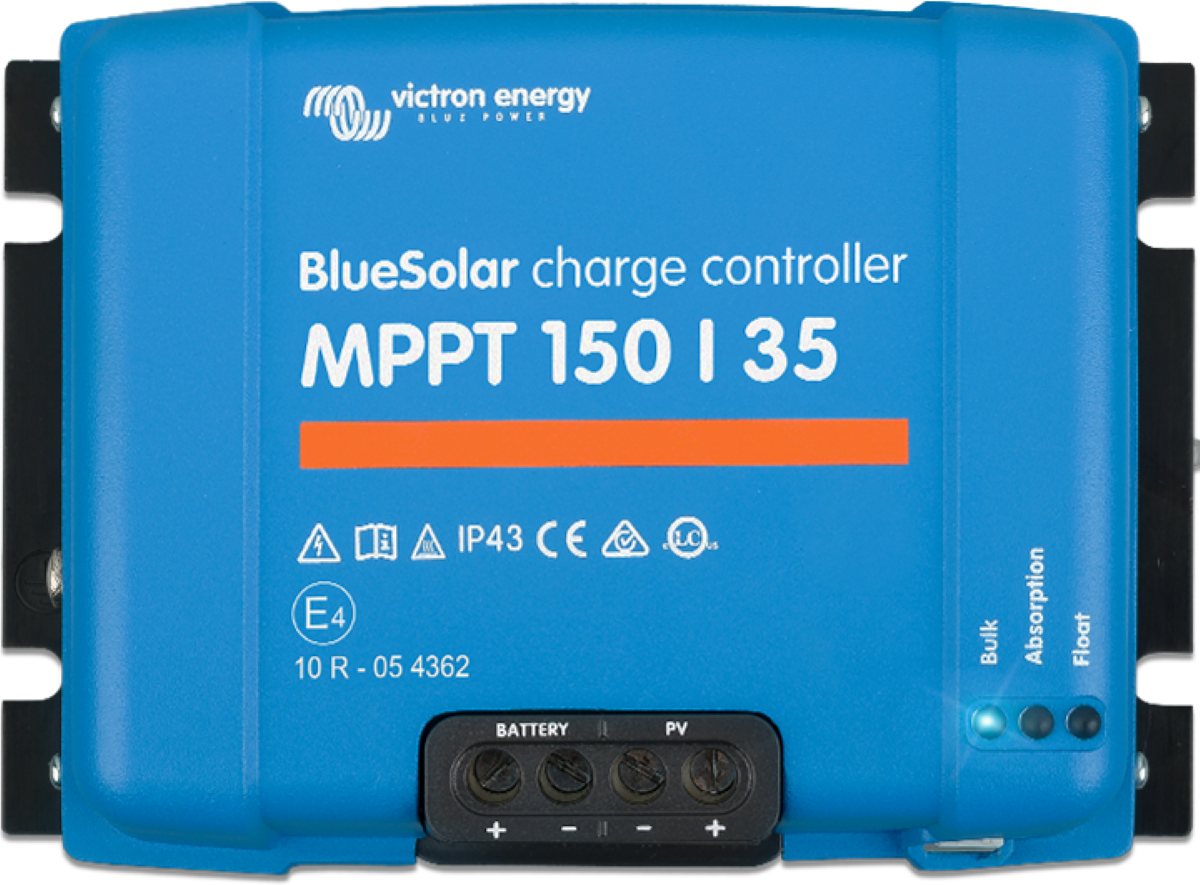

Victron BlueSolar MPPT 150/35 Charge Controller
Victron BlueSolar MPPT 150/35 Charge Controller
SKU:WS300-3148
Couldn't load pickup availability
MPPT Solar Charge Controller 150/35 by Victron.
A charge controller is the heart of every solar system, connecting the solar panel to the battery. The voltage, which changes throughout the day, is converted by the solar controller using powerful technology into a voltage adapted to the loads or optimized for ideal and gentle battery charging.
Ultra-fast MPPT tracking
Especially in cloudy conditions, when light intensity constantly changes, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading. In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.
Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live. Further information and the dongle can be found here in our shop.
Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the constant voltage is reached. From this point, the load disconnect threshold is modulated so that the constant voltage is reached approximately once a week. The BatteryLife algorithm will extend the battery's operational life compared to conventional battery algorithms that always cycle between "partially charged" and "fully charged" (due to low self-discharge).
Internal temperature sensor
Naturally, an internal temperature measurement unit is installed, so that constant and float charging voltages are compensated for temperature. The full output current can thus be guaranteed up to 40°C.
Automatic battery voltage detection
The MPPT 150 / 35 automatically adapts to a 12 V, 24 V, or 48 V system.
Excellent efficiency
No cooling fan. Maximum efficiency of over 98%. Full output current up to 40°C.
Three-stage charging: Instead of simply charging constantly up to the charging voltage, an innovative multi-stage system is used (constant current, constant voltage, and float phase).
| Technical Data | BlueSolar MPPT 150 / 35 |
|---|---|
| Battery voltage | 12 V / 24 V / 48 V |
| Rated charge current | 35 A |
| Rated PV power 12 V | 500 W |
| Rated PV power 24 V | 1000 W |
| Rated PV power 48 V | 2000W |
| Max. PV open-circuit voltage | 150 V |
| Max. PV short-circuit current | 40 A |
| Efficiency | 98 % |
| Constant charge voltage | 14.4 V / 28.8 V / 57.6 V |
| Float charge voltage | 13.8 V / 27.6 V / 55.2 V |
| Operating temperature | - 30 °C - + 60 °C |
| Weight | 1.25 kg |
| Dimensions | 130 x 186 x 70 mm |
