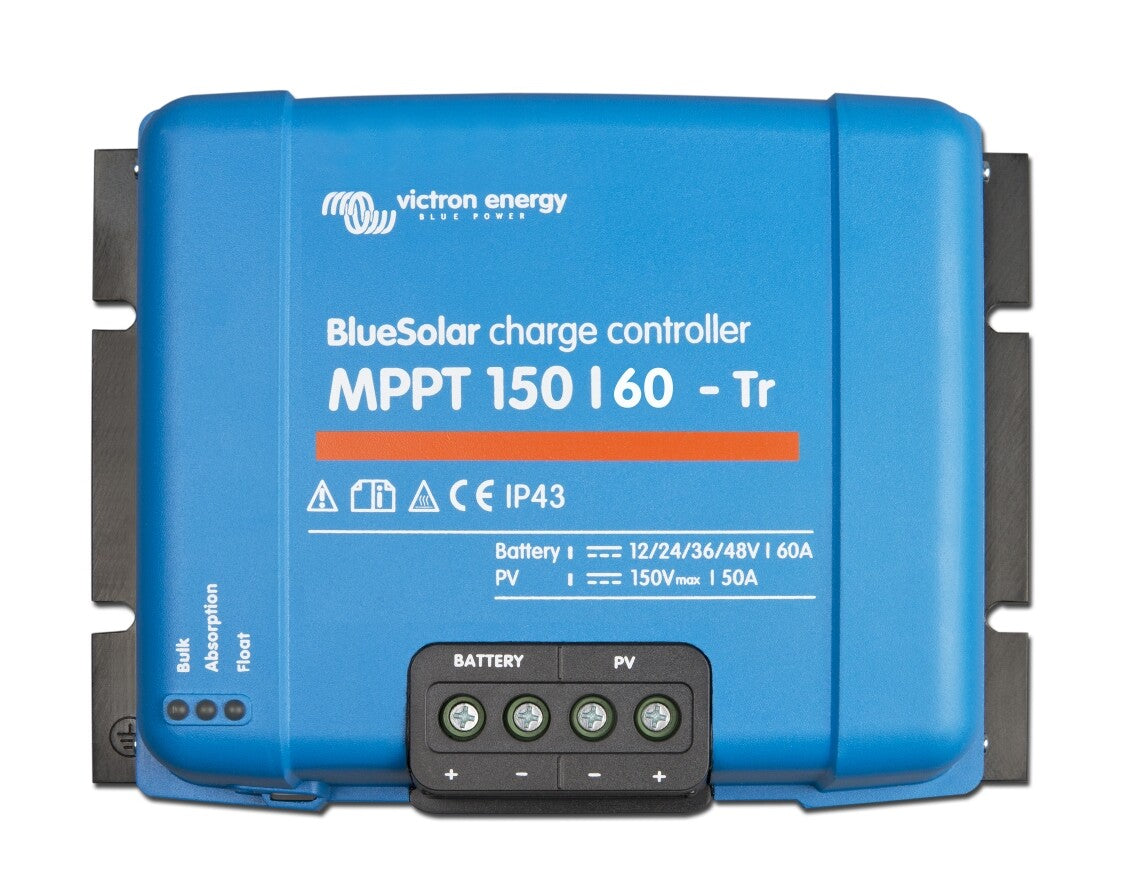

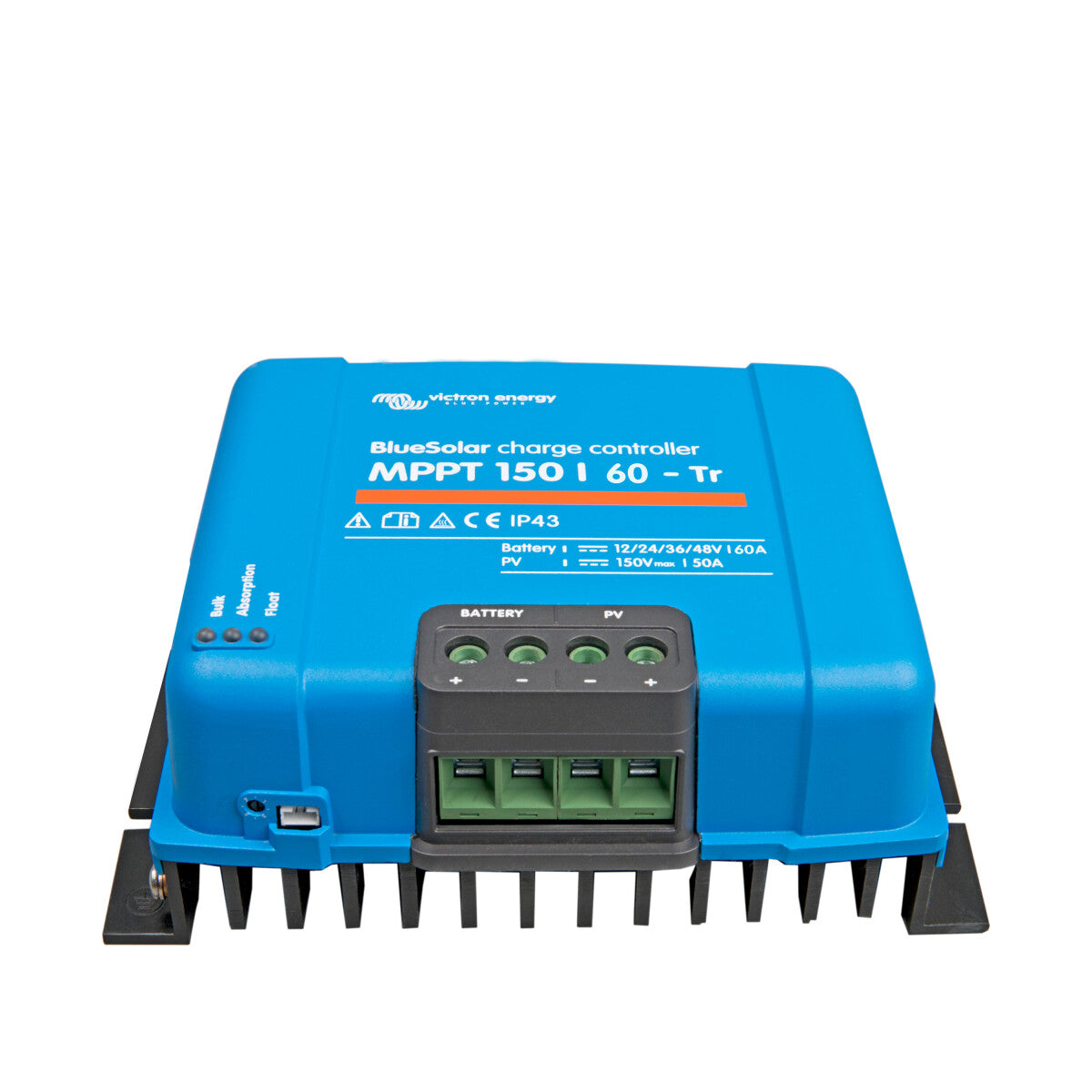

Victron BlueSolar MPPT 150/60-Tr

Victron BlueSolar MPPT 150/60-Tr

WS300-3151

€460,23 EUR
€460,23 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

MPP Solar Charge Controller MPPT 150/60-Tr by Victron.

A charge controller is the heart of any solar system, connecting the solar panel to the battery. The voltage, which changes throughout the day, is converted by the solar controller using powerful technology into a voltage adapted to the loads or optimized for ideal and gentle battery charging.

Ultra-fast MPPT tracking
Especially in cloudy conditions, when light intensity changes continuously, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading. In the case of partial shading, two or more maximum power points (MPP) can exist on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by locking onto the optimal MPP.



Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of live data. Further information and the dongle can be found here in our shop

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the absorption voltage is reached. From this point on, the load disconnect threshold is modulated so that the absorption voltage is reached approximately once a week. The BatteryLife algorithm will increase the operational life of the battery compared to conventional battery algorithms that always cycle between "partially charged" and "fully charged" (due to low self-discharge)

Internal temperature sensor
An internal temperature measurement unit is, of course, built-in, so that absorption and float voltages are temperature-compensated. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage recognition
The MPPT 150 / 60 automatically adapts to a 12 V, 24 V or 48 V system.

Three-stage charging: Instead of simply charging at a constant voltage, an innovative multi-stage system is used (bulk, absorption, and float phases).

Technical Data BlueSolar MPPT 150 / 60
Battery voltage 12 V / 24 V / 48 V
Rated charge current 60 A
Rated PV power 12 V 860 W
Rated PV power 24 V 1720 W
Rated PV power 48 V 3440 W
Max. PV open circuit voltage 150 V
Max. PV short-circuit current 50 A
Efficiency 98 %
Absorption voltage 14.4 V / 28.8 V / 43.2 V / 57.6 V
Float voltage 13.8 V / 27.6 V / 41.4 V / 55.2 V
Operating temperature - 30 °C - + 60 °C
Weight 3 kg
Dimensions 185 x 250 x 95 mm
