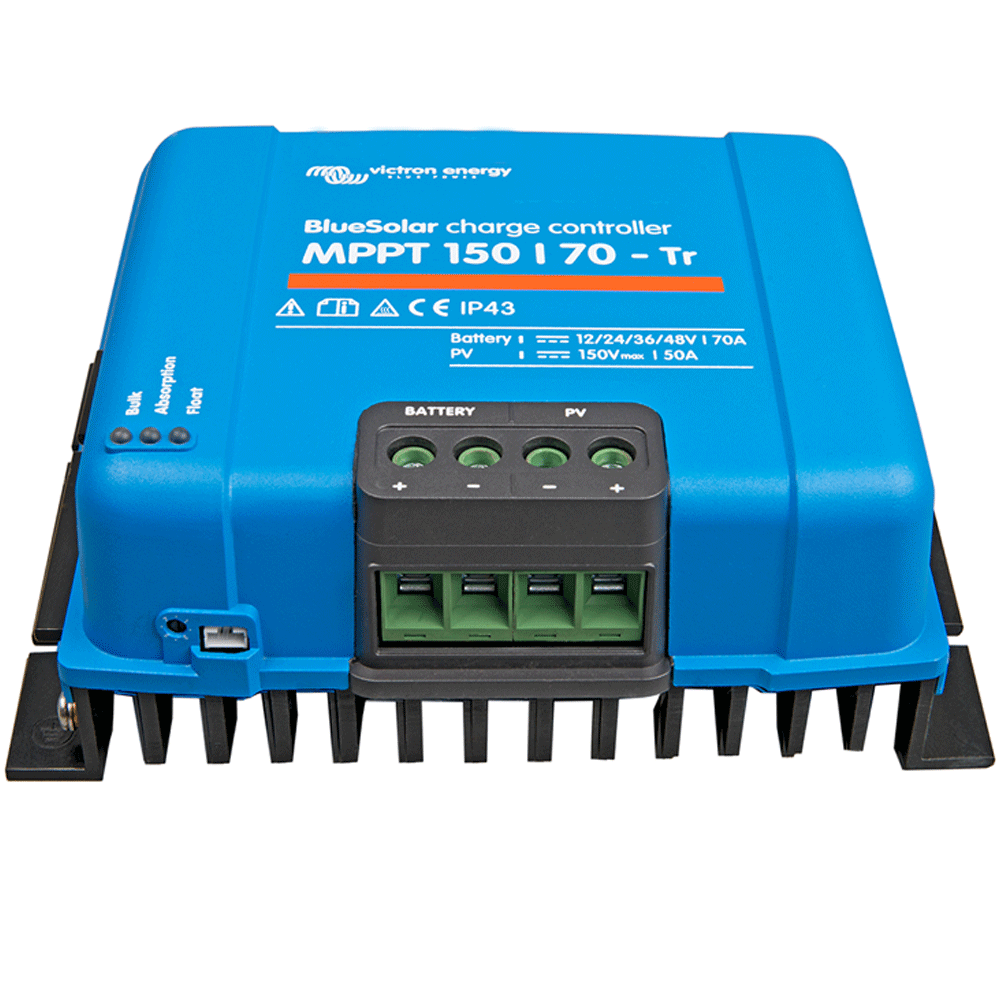

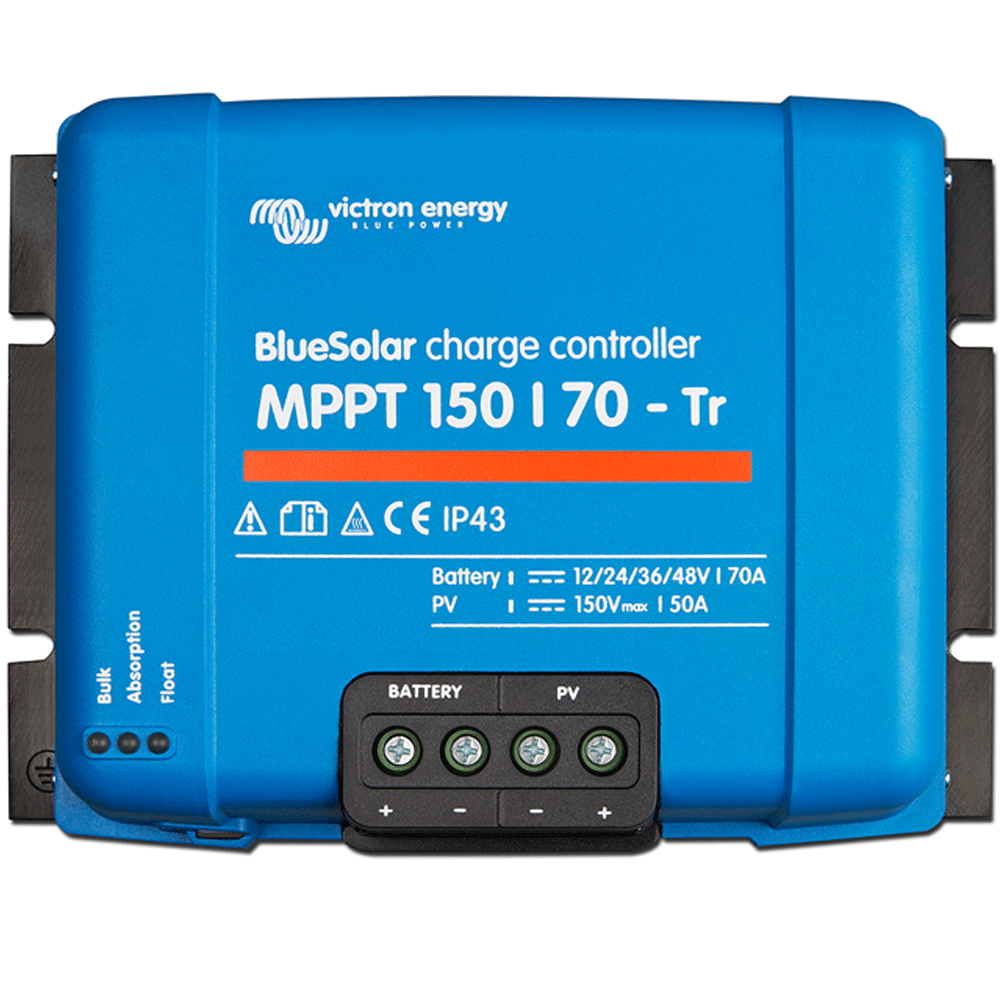

Victron BlueSolar MPPT 150/70-Tr

Victron BlueSolar MPPT 150/70-Tr

WS300-1213

€508,38 EUR
€508,38 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

MPP Solar Charge Controller MPPT 150/70-Tr by Victron.

A charge controller is the heart of every solar system, connecting the solar panel to the battery. The voltage, which changes throughout the day, is converted by the solar controller using powerful technology into a voltage adapted to the loads or optimized for ideal and gentle battery charging.

Ultra-fast MPPT tracking
Especially in cloudy conditions, when light intensity changes constantly, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In the event of partial shading, two or more maximum power points (MPP) may be present on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.



Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live.

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the constant voltage is reached. From this point, the load disconnect threshold is modulated so that the constant voltage is reached approximately once a week. The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms that always switch between "partially charged" and "fully charged" (due to low self-discharge).

Internal temperature sensor
An internal temperature measurement unit is, of course, built-in so that constant and float charge voltages are compensated for temperature. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage detection
The MPPT 150 / 70 automatically adapts to a 12 V, 24 V, or 48 V system.

Three-stage charging: Instead of simply charging constantly up to the charging voltage, an innovative multi-stage system is used. (Constant current, constant voltage, and float phase).



Technical Data BlueSolar MPPT 150 / 70
Battery voltage 12 V / 24 V / 48 V
Rated charge current 70 A
Rated PV power 12 V 1000 W
Rated PV power 24 V 2000 W
Rated PV power 48 V 4000 W
Max. PV open circuit voltage 150 V
Max. PV short circuit current 50 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V / 43.2 V / 57.6 V
Float charging voltage 13.8 V / 27.6 V / 41.4 V / 55.2 V
Operating temperature - 30 °C - + 60 °C
Weight 3 kg
Dimensions 185 x 250 x 95 mm
