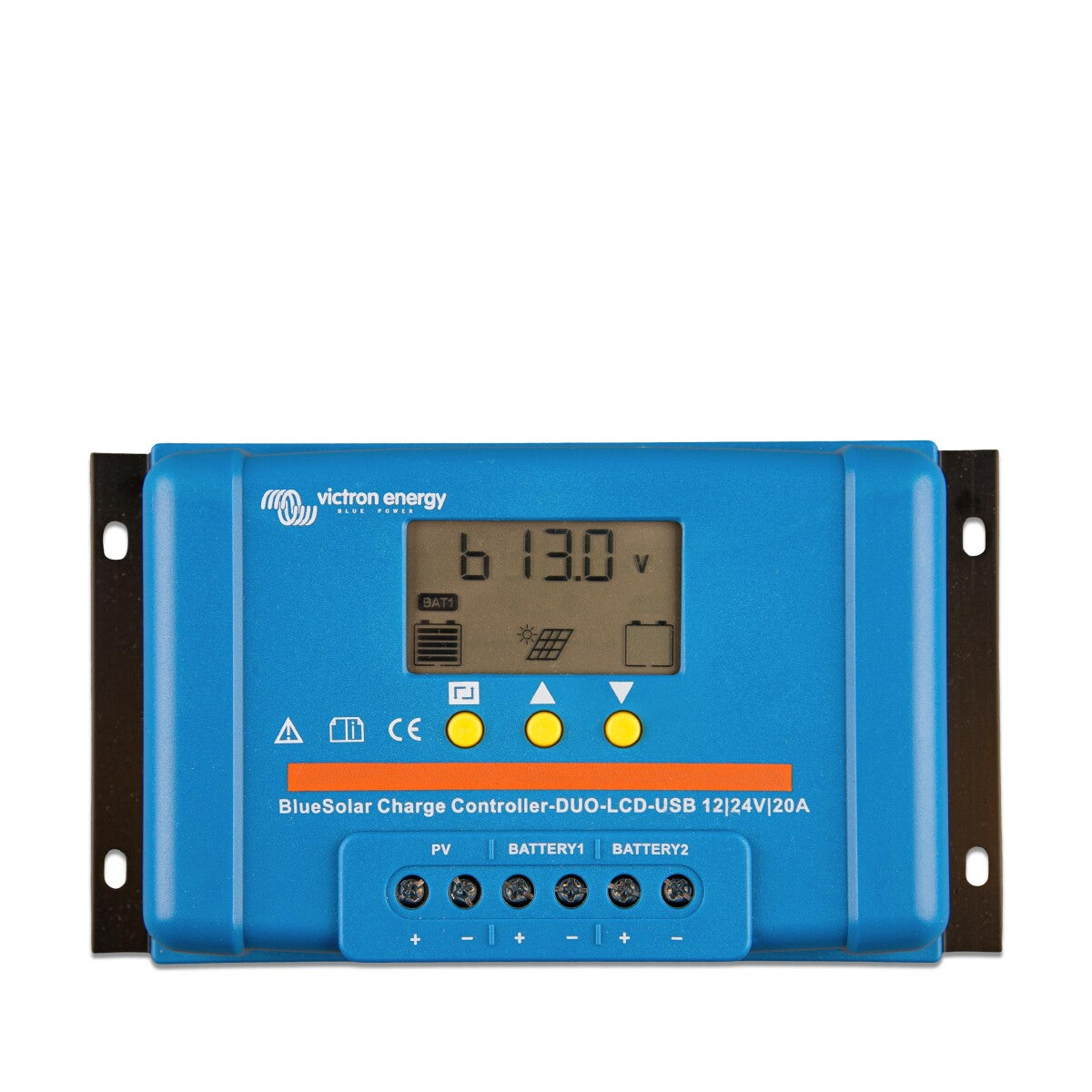

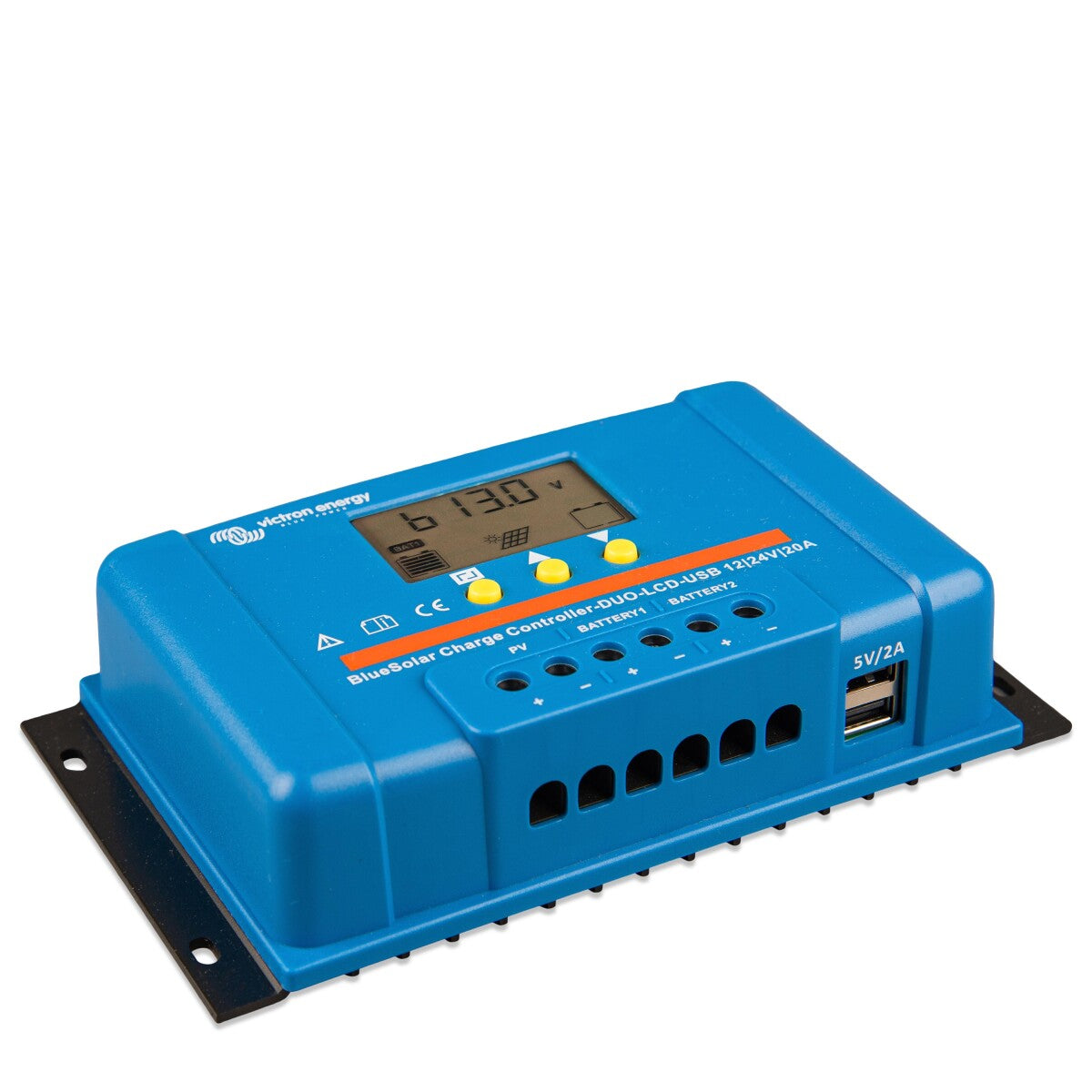

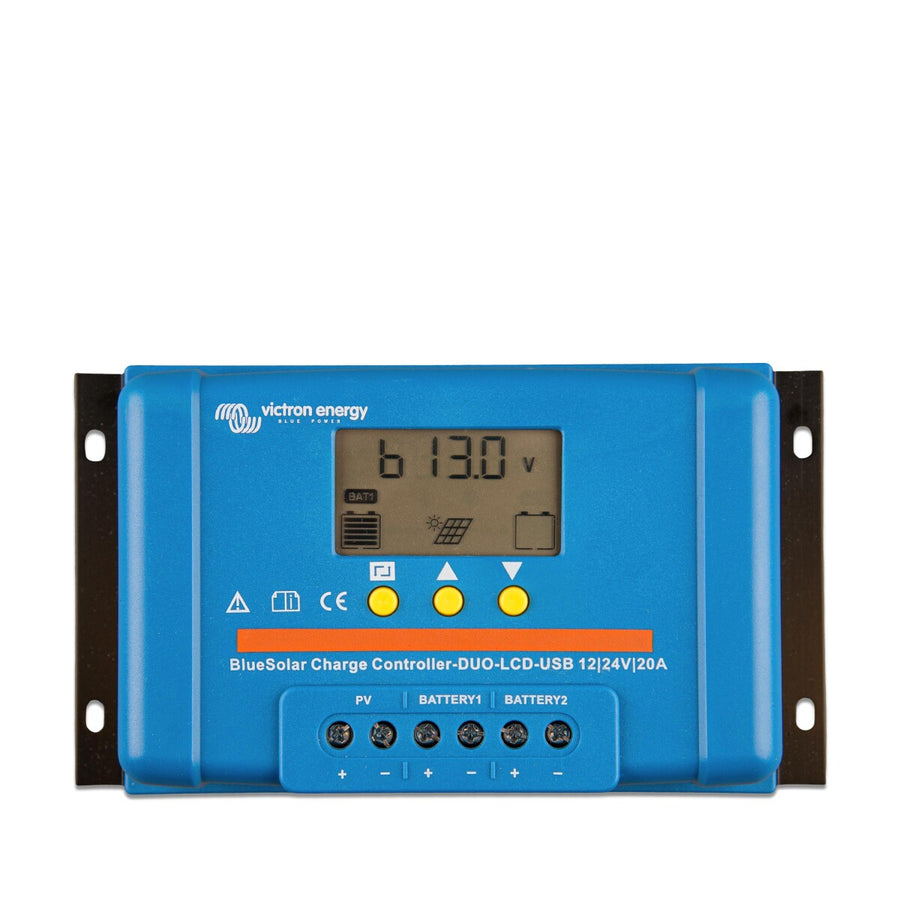

Victron BlueSolar PWM DUO-LCD&USB 12/24V-20A

Victron BlueSolar PWM DUO-LCD&USB 12/24V-20A: Optimize Your Solar Charge Management

The Victron BlueSolar PWM DUO-LCD&USB 12/24V-20A charge controller is an innovative solution for the efficient management of your solar charging processes, ideal for simultaneously charging two separate batteries. With its advanced features and user-friendly interface, this charge controller offers optimal performance for your solar panel system.

Key Features and Benefits

• Liquid Crystal Display: Provides a clear overview of the operating status and allows for easy configuration directly on the device.
• External Temperature Sensor: Included, to adjust charging parameters based on the actual battery temperature, which improves battery efficiency and lifespan.
• 2 separate battery outputs: Allows simultaneous charging of two different batteries, for example, the starter battery and the service battery in boats or caravans.
• Protection: Offers comprehensive protection against reverse polarity of solar modules or batteries to prevent damage to the system.
• Programmable battery charging algorithm: Supports various battery types, including AGM, GEL, lead-acid batteries, and LiFePO4 batteries (with internal BMS), to ensure optimal charging.
• Two 5 Volt USB outputs: Ideal for charging mobile devices, with a maximum combined current of 2A.

The Victron BlueSolar PWM DUO-LCD&USB 12/24V-20A is the perfect choice for anyone looking for a flexible and efficient solution for solar charge management, especially when multiple batteries are involved. With its combination of advanced technology and user-friendliness, this charge controller ensures optimal charging and extends the lifespan of your batteries.

Documents & Downloads

• Manual BlueSolar PWM
