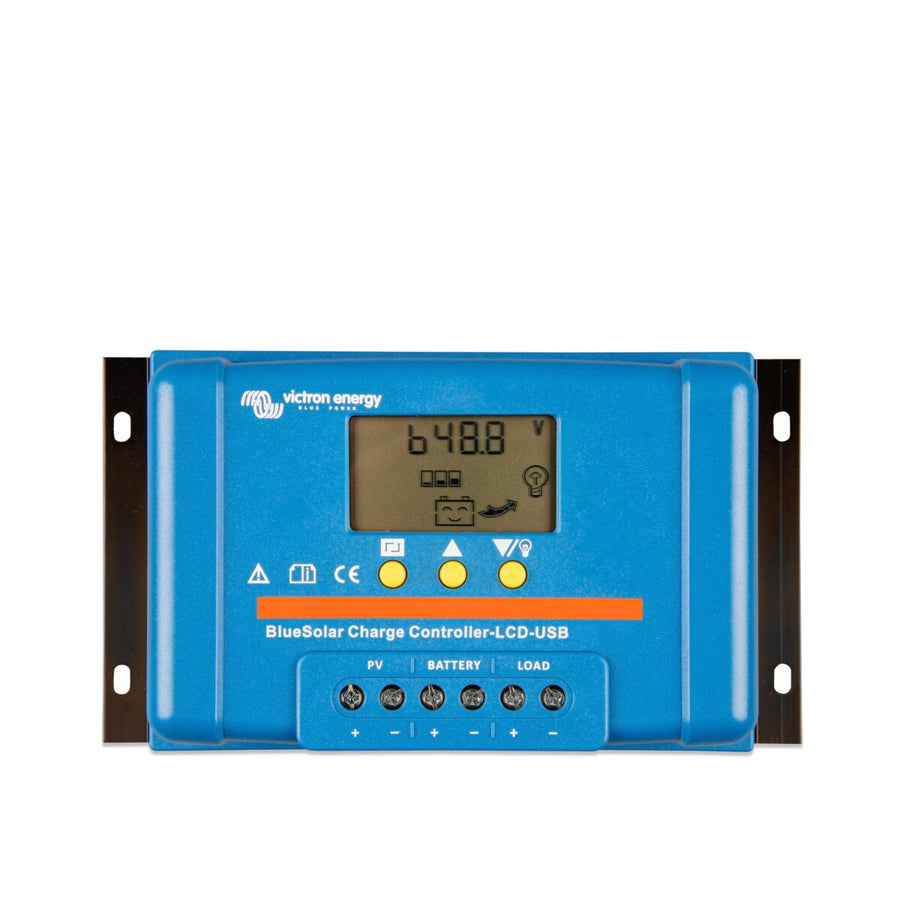

Victron BlueSolar PWM-LCD&USB 48V-20A

Victron BlueSolar PWM-LCD&USB 48V-20A: A Comprehensive Charge Controller with Practical Features

LCD Display for Status Monitoring and Configuration
With the integrated liquid crystal display (LCD), the Victron BlueSolar PWM-LCD&USB 48V-20A offers a user-friendly interface for monitoring and settings. You get direct access to important information and can effortlessly configure the device.

Intelligent Load Management
Prevent overcharging of your battery by connecting all loads to the dedicated load output. This automatically disconnects loads if the battery voltage drops below a critical level, preventing deep discharge. For certain applications, such as inverters that require a direct connection to the battery, the load output offers flexible control options, although a specific interface cable may be required.

Adjustable Voltage Values and Day/Night Settings
The voltage values for connecting and disconnecting loads are freely configurable. In addition, a day/night time setting allows for the definition of a specific ON time after sunset, which is particularly useful for lighting systems.

Versatile Charging Algorithms
The charge controller supports pre-programmed charging algorithms for various battery types such as AGM, GEL, flooded, and LiFePO4 (only models with integrated battery management system), allowing you to optimally adapt charging processes to your battery's specific requirements.

USB Outputs for Additional Charging
Equipped with two 5V USB outputs, the Victron BlueSolar PWM-LCD&USB 48V-20A allows you to charge devices like smartphones or tablets directly from the charge controller, with a maximum current of 2A for both outputs combined.

This charge controller is not only an efficient solution for the energy management of your solar system but also offers a range of customization options and additional convenience features to meet your needs.

Documents & Downloads

• Datasheet BlueSolar PWM LCD USB
• Manual BlueSolar PWM LCD USB
