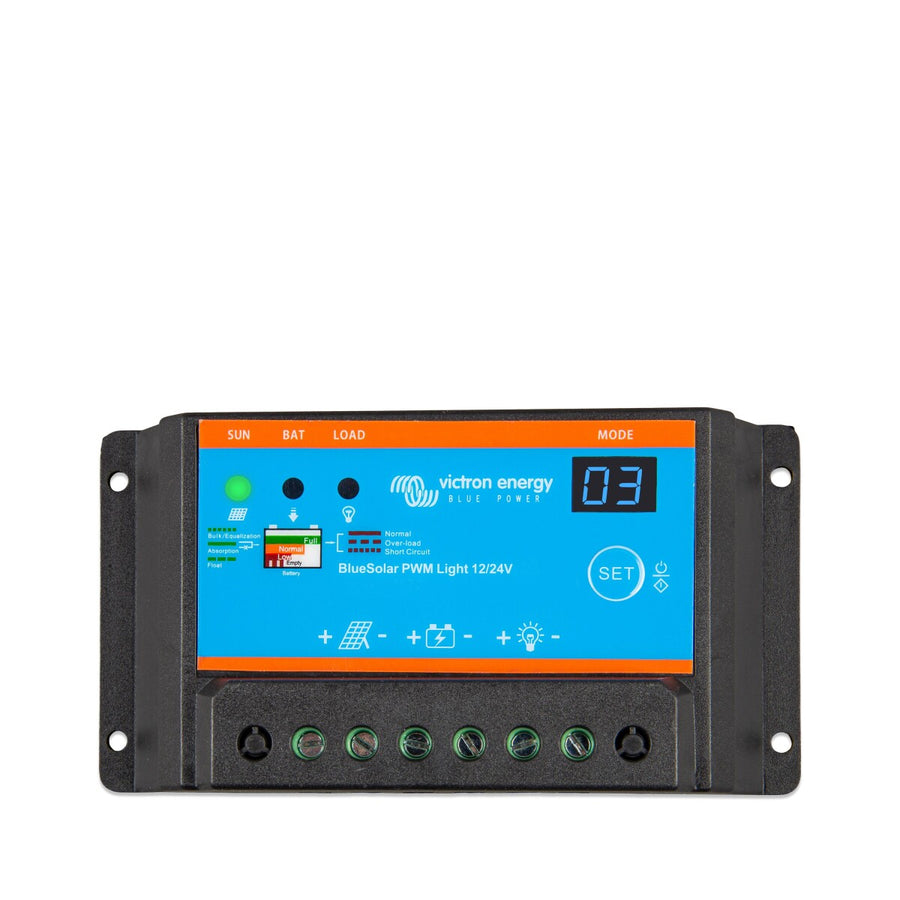

Victron BlueSolar PWM-Light Charge Controller 12/24V-5A

Victron BlueSolar PWM-Light Charge Controller 12/24V-5A: Feature Overview

The Victron BlueSolar PWM-Light Charge Controller 12/24V-5A offers you a reliable and user-friendly solution for controlling your solar charging processes.

Reliable Battery Charging and Protection

• Three-stage charging: Your battery is efficiently charged using a non-programmable, three-stage charging process (bulk, absorption, float).
• Load output with protection function: The charge controller has a load output that automatically disconnects connected loads when the battery voltage becomes too low, to protect the battery from deep discharge.

User-friendly Operation

• Light control and timer: A light-controlled function with an easy-to-set timer allows you to precisely control the load output function.
• Intuitive display: A two-digit seven-segment display makes setting the load output and timer straightforward.

Safety Features

• Overload and short-circuit protection: The load output is safely protected against overload and short circuits to protect your system.
• Reverse polarity protection: Both the solar system and the battery are protected against reverse polarity, further increasing safety.

Adaptability

• Day and night mode: Various setting options for day and night operation can be adapted to your needs. More detailed information can be found in the manual.

With its comprehensive functions, the Victron BlueSolar PWM-Light Charge Controller 12/24V-5A is an effective solution for controlling and monitoring your solar charging processes, bringing both efficiency and safety to your solar system.

Documents & Downloads

• Datasheet Blue Solar PWM-Light 12-24V
• Manual Blue Solar PWM-Light 12-24V
