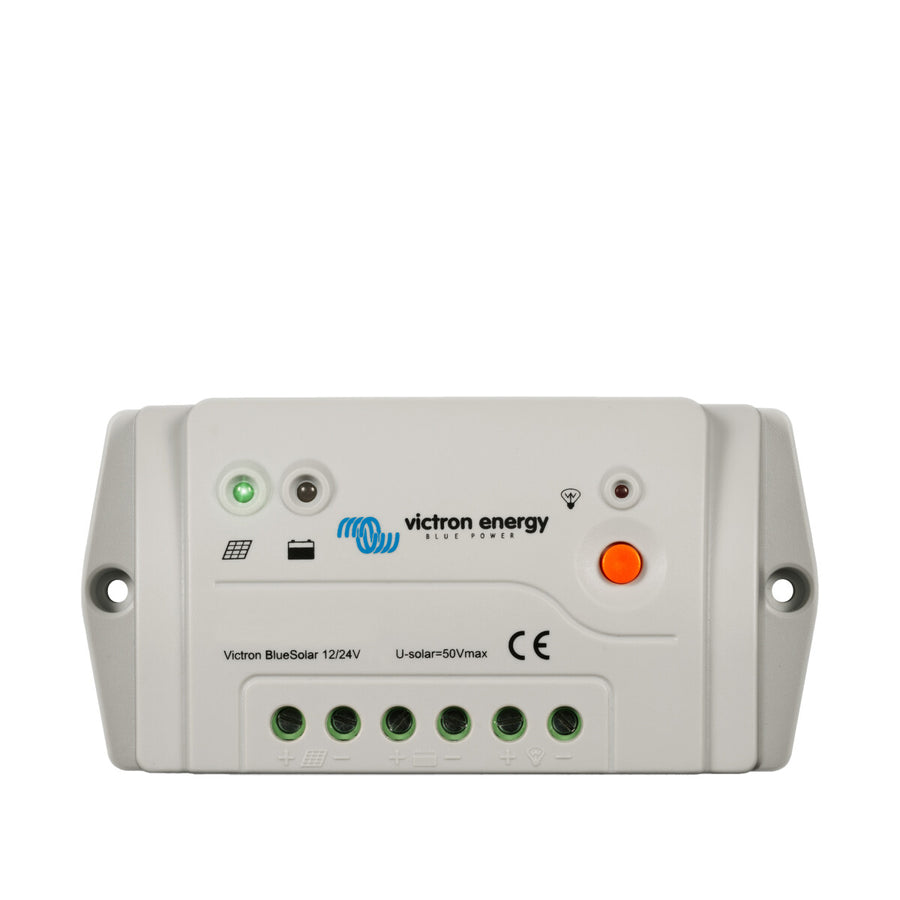

Victron BlueSolar PWM-Pro Charge Controller 12/24V-20A
Victron BlueSolar PWM-Pro Charge Controller 12/24V-20A
SKU:WS300-3711
Couldn't load pickup availability
Victron BlueSolar PWM-Pro Charge Controller 12/24V-20A: Full Customizability
Ready to use out of the box and fully customizable
The Victron BlueSolar PWM-Pro Charge Controller is ready to use right out of the box but also offers the flexibility of full customizability. Whether via a computer with the free software from the Victron website or the special BlueSolar Pro remote control panel – you have control.
Advanced features for optimal performance
- Individual lighting control: Fully adaptable to your needs.
- Three-stage charging: Bulk, absorption, and float charging – fully configurable for optimal battery care.
- Battery monitoring: Keep an eye on the state of charge with the remote control panel.
- Load output: Equipped with a low voltage disconnect function and manual control for added safety.
- Protective measures: Overload, short circuit, and reverse polarity are no problem – your system and batteries are safe.
- External temperature sensor: Optionally available for precise charge control.
Flexibility through Day and Night Mode
Set the charge controller to day or night operation, depending on your requirements. Detailed information and setting options can be found in the remote control panel's manual.
The Victron BlueSolar PWM-Pro Charge Controller offers you not only the reliability and quality of Victron Energy but also unparalleled adaptability to optimize your solar energy system.
| Technical Data | BlueSmart PWM-Pro 12/24V-20A |
| Battery Voltage | 12 / 24 V |
| Rated Charge Current | 20 A |
| Max. Solar Voltage | 28 / 55 V |
| Self-consumption | < 10 mA |
| Automatic Load Disconnect | yes |
| Temperature Range | - 20 °C to + 50 °C |
| Protection Class | IP30 |
| Dimensions | 160 x 82 x 48 mm |
| Weight | 300 g |
