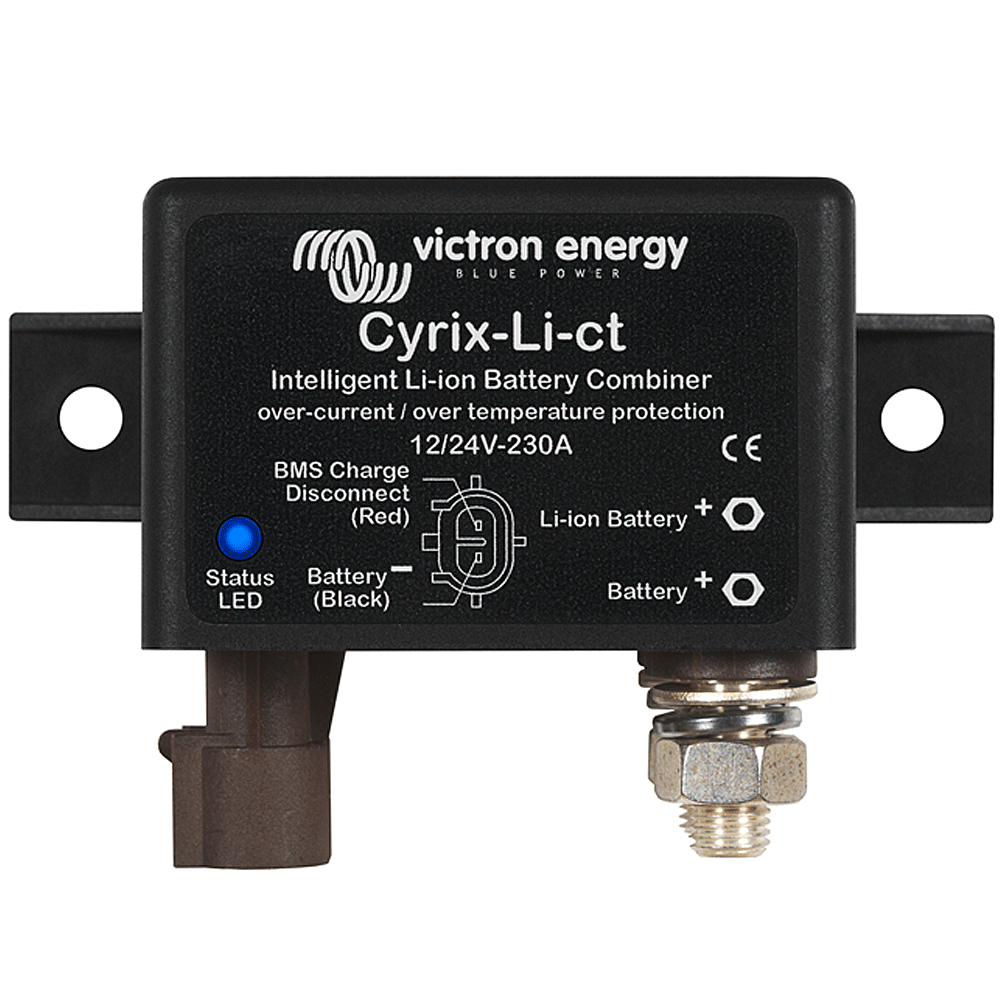

Victron Cyrix-Li-ct 12/24V 230A Battery Combiner Relay
Victron Cyrix-Li-ct 12/24V 230A Battery Combiner Relay
SKU:WS300-3004
Regular price
€233,66 EUR
Regular price
Sale price
€233,66 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Smart Battery Combiner Cyrix-Li-ct
The Cyrix-Li-ct functions in the same way as the Cyrix-ct.
The Cyrix-Li-ct connects a lead-acid starter battery and a LiFePO4 battery:
- when the VE.Bus BMS "Charge Disconnect" output is high and
- when it senses 13.4V (or 26.8V) or more on one of its power terminals.
The Cyrix immediately disconnects: - when its control output becomes "free floating" (open circuit), indicating a cell overvoltage or cell overtemperature and/or - when the battery voltage drops below 13.2V
Start Assist Function:
a short positive pulse closes the relay for 30 seconds (see figure on page 2)
An integrated TVS diode limits the voltage spike that can occur when the Cyrix suddenly disconnects due to cell overvoltage or overtemperature.
The Cyrix-Li-ct functions in the same way as the Cyrix-ct.
The Cyrix-Li-ct connects a lead-acid starter battery and a LiFePO4 battery:
- when the VE.Bus BMS "Charge Disconnect" output is high and
- when it senses 13.4V (or 26.8V) or more on one of its power terminals.
The Cyrix immediately disconnects: - when its control output becomes "free floating" (open circuit), indicating a cell overvoltage or cell overtemperature and/or - when the battery voltage drops below 13.2V
Start Assist Function:
a short positive pulse closes the relay for 30 seconds (see figure on page 2)
An integrated TVS diode limits the voltage spike that can occur when the Cyrix suddenly disconnects due to cell overvoltage or overtemperature.
