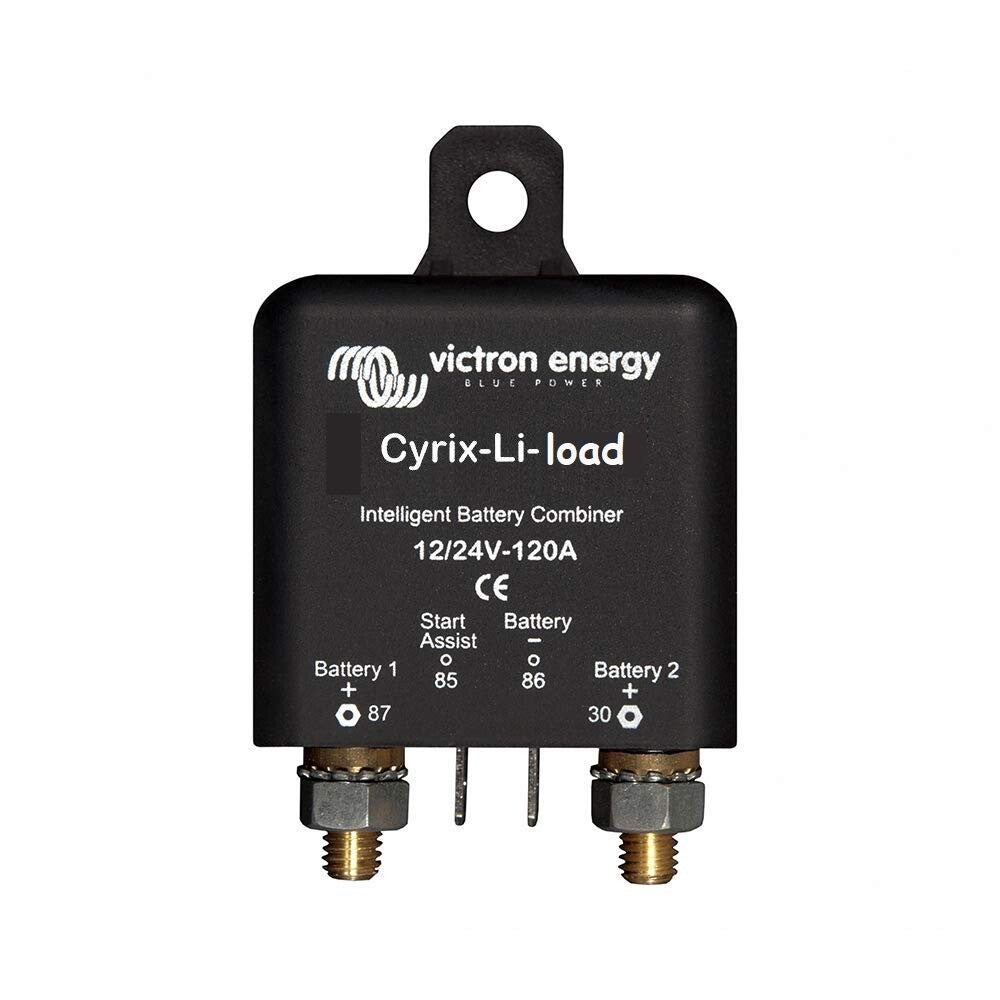

Victron Cyrix Li-load 12/24V 120A Battery Coupler Disconnect Relay Battery Protector

Cyrix Battery Combiner Li-ion Series: Li-Load

How the Cyrix-Li-Load works

The Cyrix battery combiner protects the battery from excessive discharge by loads.
The Cyrix-Li-Load disconnects when its control input reaches the "free floating" state (open circuit).
If the battery voltage recovers after disconnection (which happens if no other loads are connected to the battery), the BMS output goes high and the Cyrix reconnects after 30 seconds. After 3 reconnection attempts, the Cyrix remains disconnected until the voltage has risen to over 13 V (or 26 V) for at least 30 seconds (this indicates that the battery is being recharged).

Product features

• Protects the battery from excessive discharge by loads
• Continuous current: 120 A
• Suitable for 12V and 24V systems, automatic detection
• Intelligent control by microprocessor

Documents & Downloads

• Datasheet
