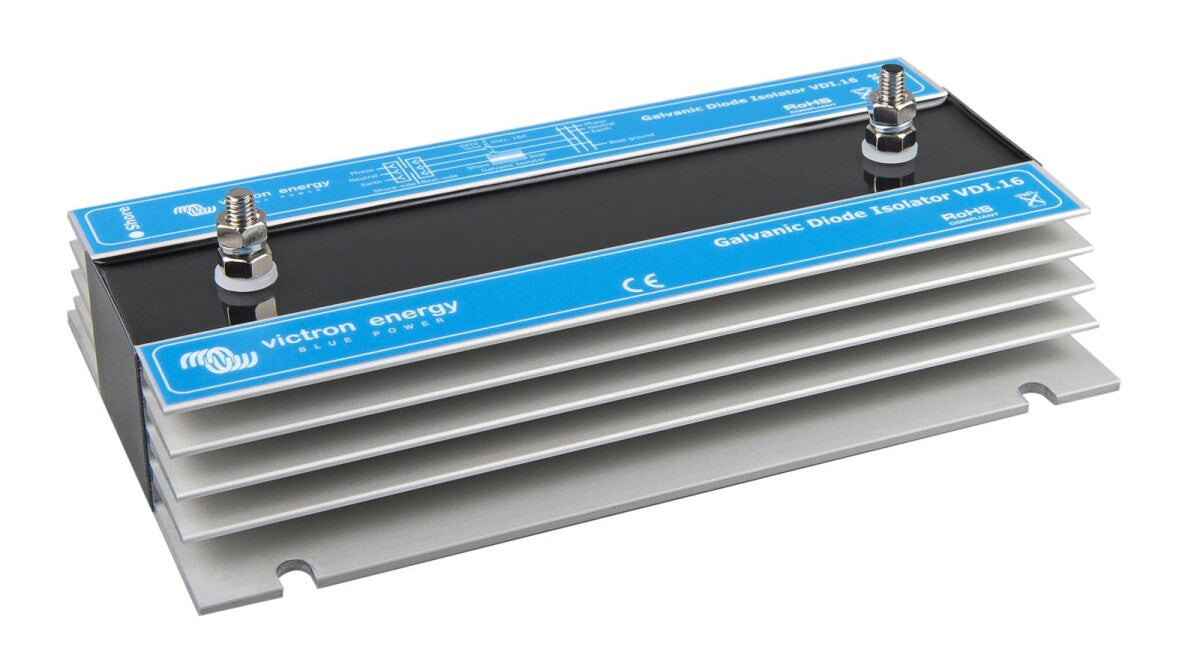

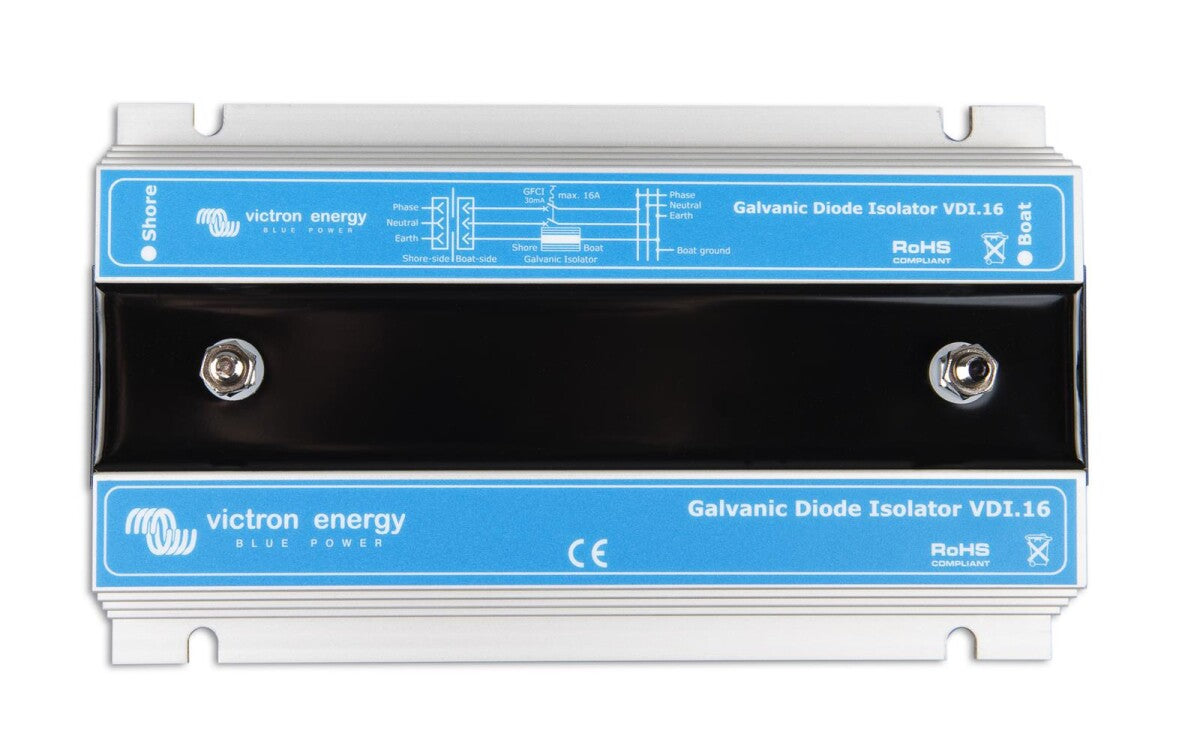

Victron Galvanic Isolator VDI-16 A

Victron energy Galvanic Isolator VDI-16

The galvanic isolator consists internally of two diodes connected in an anti-parallel manner. This connection method allows the diodes to conduct current in both directions, but only when a certain voltage threshold is exceeded. The voltage at which the diodes conduct is 1.4 Vdc.

The isolator is installed directly behind the 230 V connection of your boat. The forward voltage of the galvanic isolator is higher than the potential difference between metals. This means the voltage does not allow conduction, and the galvanic isolator thus prevents any electrolytic current. However, if a (higher) fault current occurs in the AC circuit, the diodes will allow current to pass, and the residual current device will interrupt the circuit.


Specifications:

- Maximum current 16 A
- Peak current (20 ms) 1600 A
- Connection 2 studs M6
- Material anodized aluminum
- Protection class IP 67
- Weight 1 kg
- Dimensions (HxWxD) VDI-16 60 x 120 x 200 mm
