Victron GX Tank140 - Tank level sensor interface

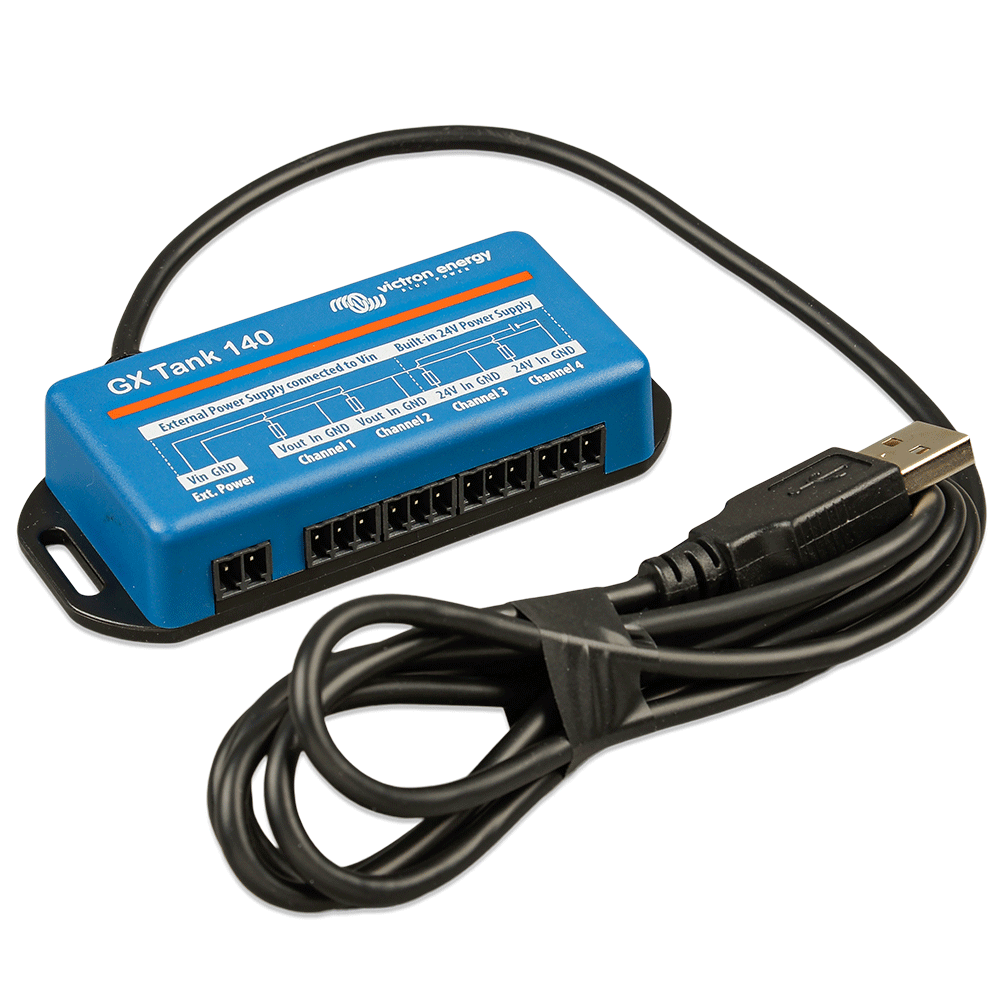

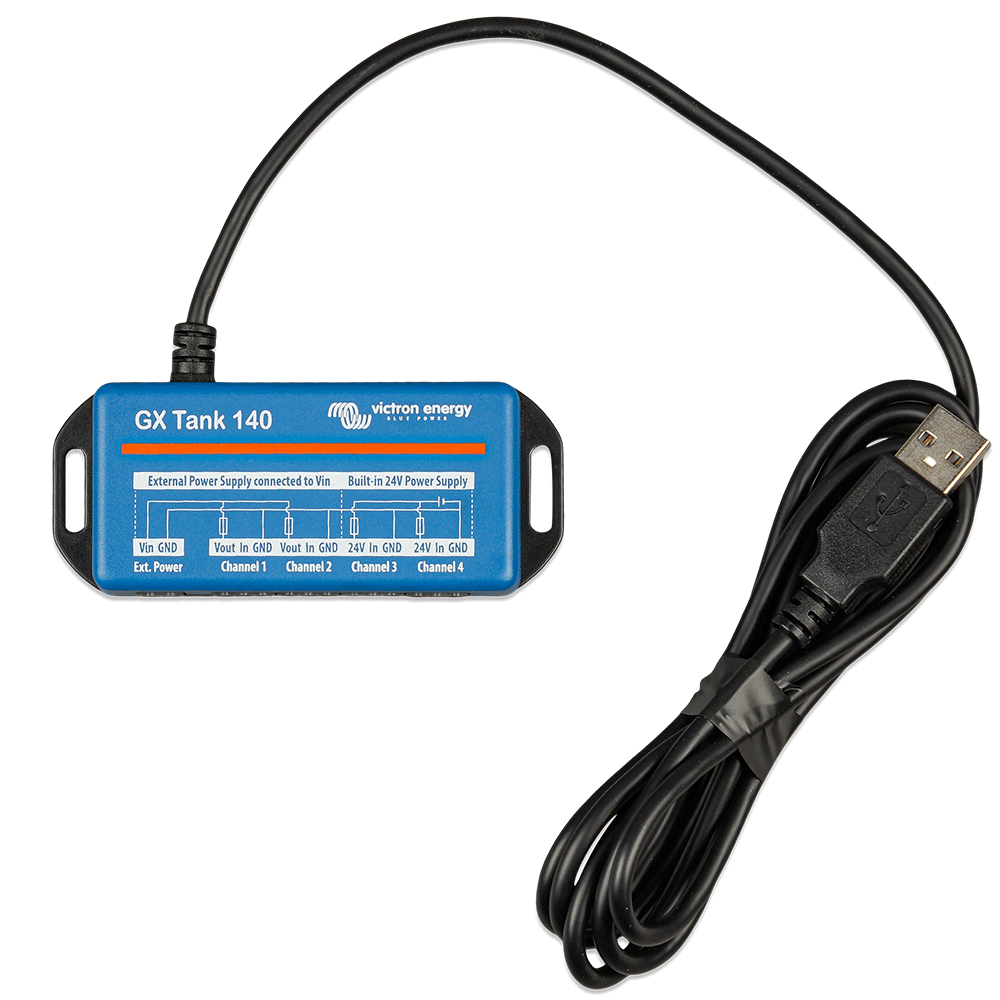

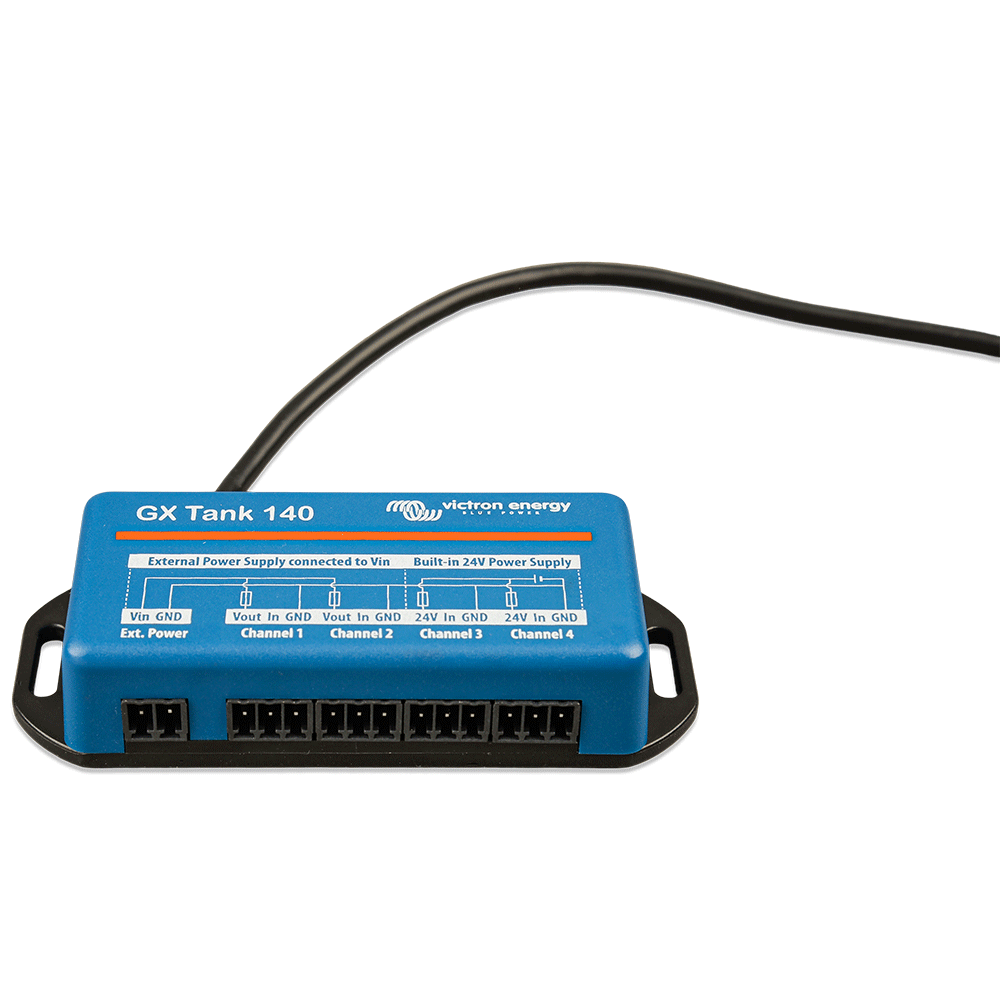

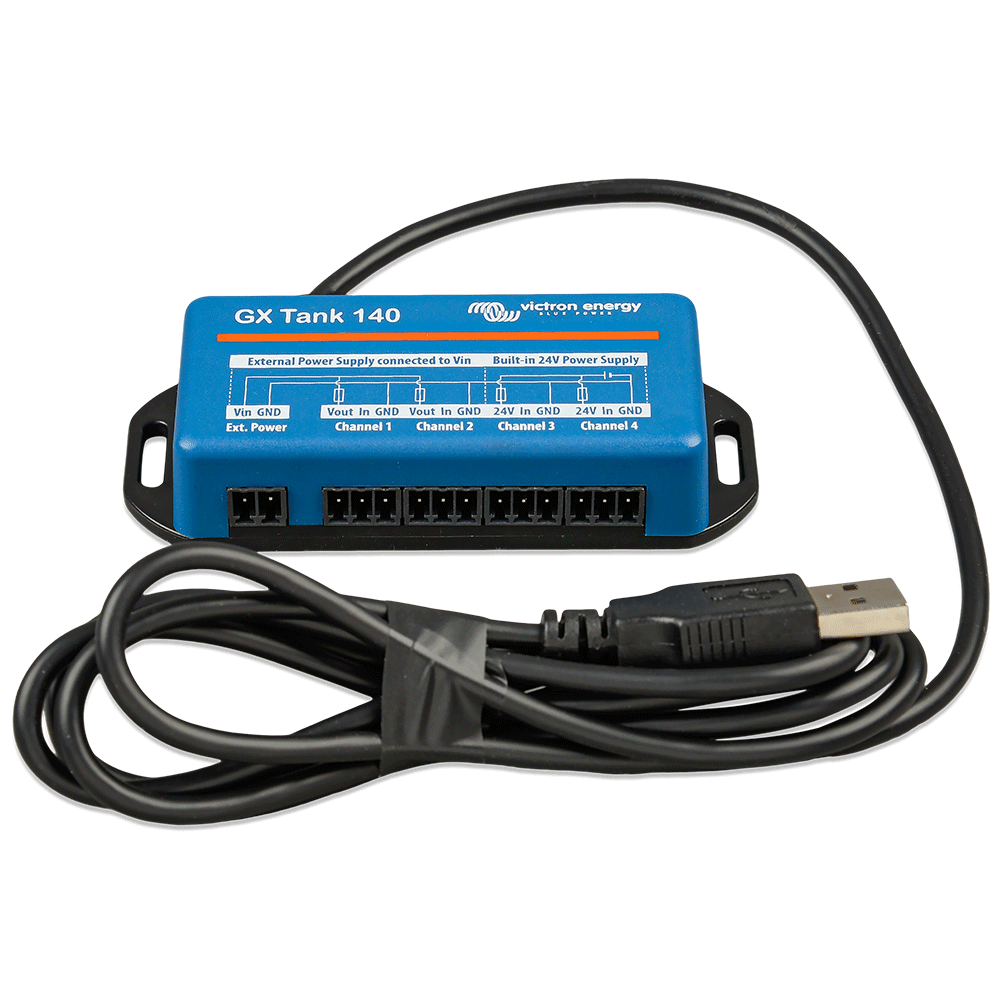

GX Tank 140

The GX Tank 140 reads levels from up to four tank level sensors. It is an accessory for our range of GX System Monitoring products, of which the Cerbo GX is the most used model.

Tank levels can be read out in the system locally, see screenshot, as well as remotely via our VRM Portal.

The GX Tank is compatible with both current senders (4 to 20 mA) and voltage senders (0 to 10 V). The GX device is connected via USB, which also powers the GX Tank. No additional power cables are required.

Tank sender wiring is made as simple as possible: two of the four inputs provide a 24V power supply for the sender. The other two channels require an external power supply, for which a mains connection with fused outputs is provided.

The upper and lower limits are configurable to allow the use of senders that only provide part of the scale, e.g. 0 to 5 V.

To obtain a stable reading, the readings are damped with averaging. Damping can be configured between 1 and 60 seconds.

Defective sensors and wiring problems are detected. An alarm is triggered if the values are outside the permitted range.

In marine applications, the GX device can transmit these tank levels to other displays, such as an MFD, via the NMEA 2000 network.
