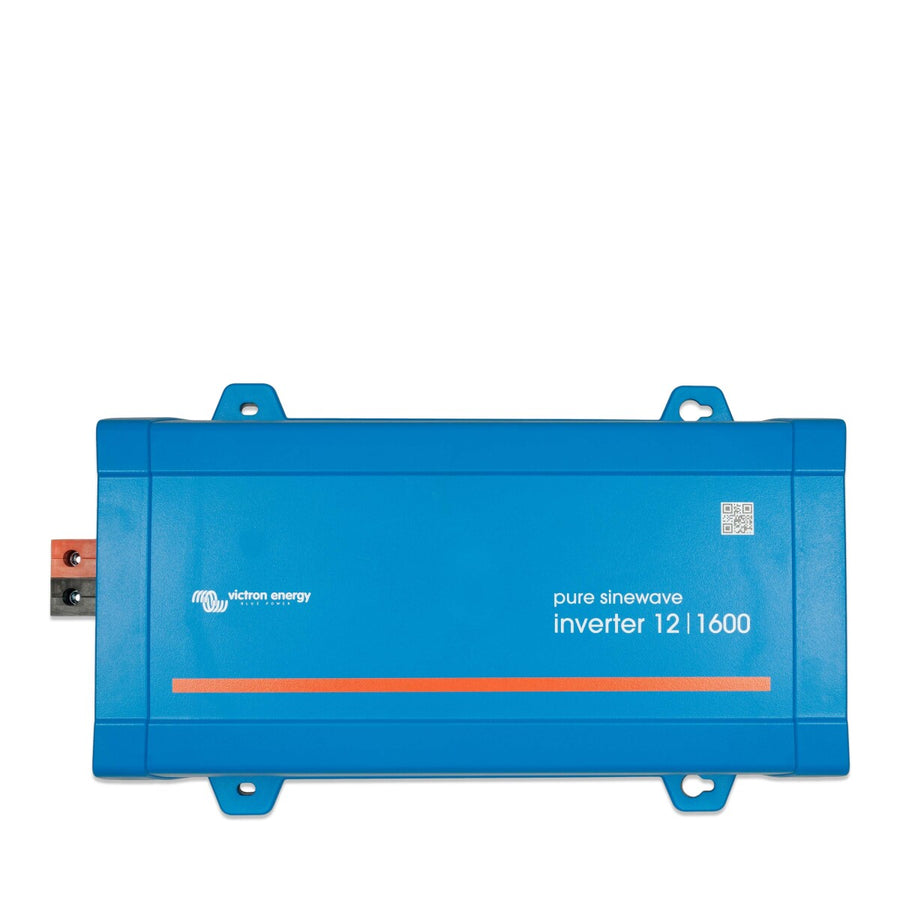

Victron Inverter 12/1600 VE.Direct Schuko

Victron Inverter 12/1600 VE.Direct Schuko – Powerful, efficient & smartly connected

The Victron Inverter 12/1600 VE.Direct Schuko is a compact, efficient inverter that reliably converts direct current (DC) from your 12V battery into clean 230V alternating current. This allows you to safely and efficiently operate your household appliances even when on the go or in off-grid operation – with the renowned quality of Victron Energy.

Stable performance & high efficiency

With 1600 VA (approx. 1200 W) continuous power, the inverter offers enough power for most consumers in motorhomes, boats, or in autonomous systems. Thanks to the high peak factor of 3:1, even devices with high inrush current (e.g., refrigerator or pump) can be operated without problems. The efficiency is up to 93%, while the integrated ECO mode significantly reduces self-consumption in idle mode.

Smart control & monitoring

The inverter can be connected to a computer, smartphone, or tablet via the VE.Direct communication port. This allows you to monitor all relevant parameters in real time – for example, input voltage, output power, frequency, temperature, or alarms. With the free VictronConnect App (available for Android, iOS, Windows & macOS), you have full control over settings, ECO mode, and system diagnostics – wirelessly via Bluetooth (with optional Smart Dongle).

Sophisticated protection functions

• Reverse polarity protection (DC input)
• Over-temperature & overload protection
• Automatic shutdown at low voltage
• Audible warning alarm

Flexible application & installation

With its robust screw terminals (M8) and the Schuko output socket, the inverter can be installed easily and securely – without special tools. It is ideal for mobile applications, stationary energy systems, and emergency power solutions. The inverter operates reliably in a temperature range of –40 °C to +65 °C and is designed for continuous operation.

Technical data (excerpt)

• Continuous power: 1600 VA / 1200 W
• Peak power: approx. 3000 W
• Input voltage: 12 V DC
• Output voltage: 230 V AC ± 2 %
• Frequency: 50 Hz ± 0.1 %
• Max. efficiency: 93 %
• ECO mode: activatable / adjustable
• Output: Schuko socket (CEE 7/3)
• Dimensions: approx. 375 × 214 × 110 mm
• Weight: approx. 10 kg
• Protection class: IP21
• Certificates: EN 60335-1, EN 62109-1, ECE R10-4

Your advantages at a glance

• 1600 VA / 1200 W continuous power
• Compact & robust design
• High efficiency up to 93 %
• ECO mode for minimal self-consumption
• Bluetooth connectivity via VE.Direct
• Protection against overload, overheating & reverse polarity
• Schuko output & easy installation
• Suitable for campers, boats & off-grid systems

Reliable energy – everywhere

The Victron Inverter 12/1600 VE.Direct Schuko offers you mobile power supply at the highest level. Efficient, safe, and smartly networkable – the ideal companion for anyone who values quality, durability, and absolute reliability.

Documents & Downloads

• Inverter 12/1600 Datasheet
• Inverter 12/1600 Manual
