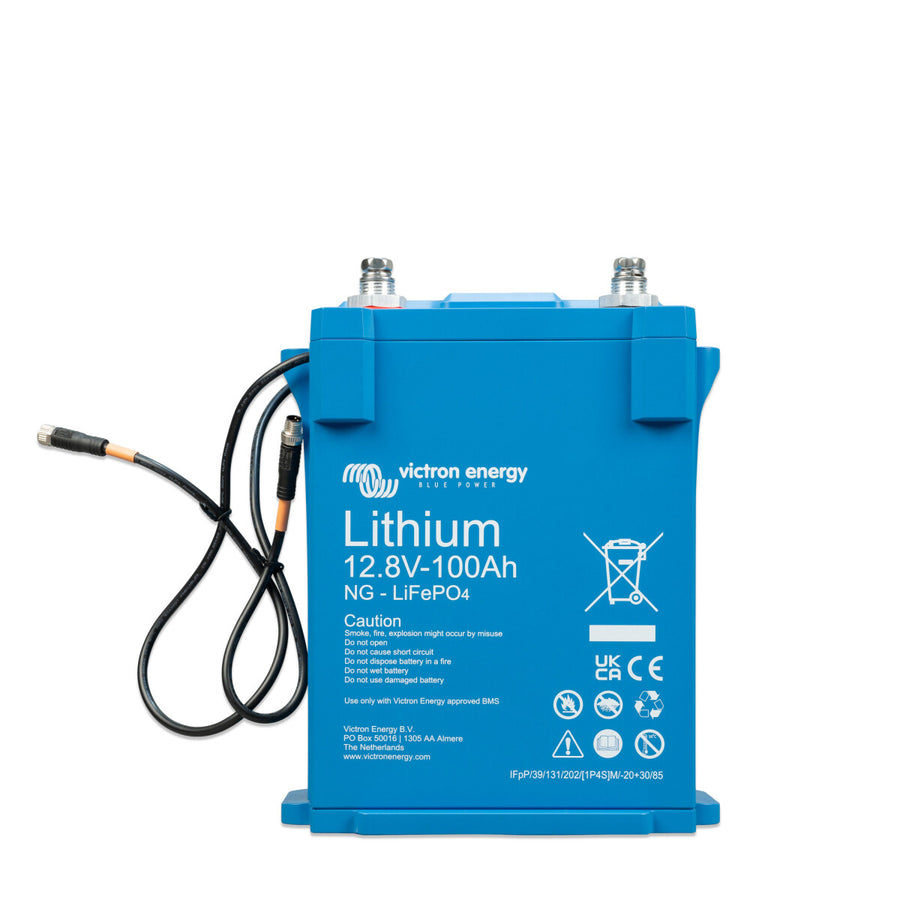

Victron LiFePO4 Battery 12.8V/100Ah NG
Victron LiFePO4 Battery 12.8 V / 100 Ah Smart NG – Reliable Energy You Can Monitor
With the Victron LiFePO4 Battery 12.8 V / 100 Ah Smart NG, you get 12.8 V nominal voltage, 100 Ah capacity, and an integrated Battery Management System (BMS) that monitors cell voltage and temperature. Via Bluetooth, you can conveniently view important values in the VictronConnect App – ideal for mobile setups (e.g., motorhomes, boats, vans) as well as for stationary applications (e.g., solar storage).
Intelligent Safety Thanks to Integrated BMS
To ensure you can rely on your power supply in everyday life, the integrated BMS handles the protection work in the background. It continuously monitors central battery parameters and protects against overcharging, undercharging, and overheating, among other things. If critical values are reached, the system can – depending on the situation – stop charging or disconnect loads to prevent damage.
Bluetooth Monitoring: Real-time Values via VictronConnect
With the integrated Bluetooth connectivity, you can connect the battery directly to your smartphone or tablet. In the VictronConnect App, you can view important data such as cell voltage and temperature in real time. This significantly simplifies troubleshooting, system checks, and ongoing monitoring – especially for more complex on-board or solar systems.
Lifespan & Cycles: Designed for Long-term Operation
The Smart NG is designed for long periods of use. Depending on usage and depth of discharge, up to 5,000 discharge cycles are possible. At a depth of discharge of 80%, up to 2,000 cycles are stated. This is particularly worthwhile if you use your battery regularly and want a system that doesn't "tire out" after a short time.
Temperature Range: Robust for Many Locations
A range of -20 °C to +60 °C is provided for discharging. In combination with the safety functions of the BMS, the battery can therefore be used well even in more demanding environments – provided your overall system (chargers, wiring, fusing) is appropriately designed.
Areas of Application
Whether on the road or at home: The Victron LiFePO4 Battery 12.8 V / 100 Ah Smart NG is particularly well suited for setups where reliability, low weight, and transparency about battery status are important.
- Motorhomes, campervans, expedition vehicles
- Boats, yachts, marine electrical systems
- Off-grid and backup systems
- Solar installations with storage
Your Advantages at a Glance
- Long-lasting LiFePO4 technology for many charge/discharge cycles
- Integrated BMS with cell voltage and temperature monitoring
- Protection against overcharging, undercharging, and overheating
- Cell balancing for even cell load
- Bluetooth monitoring via VictronConnect App
- 12.8 V nominal voltage and 100 Ah capacity for solid power supply
- Suitable for mobile and stationary applications
| Technical Data | Victron LiFePO4 12.8 V 100Ah NG |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Max. Discharge Current | 100 A |
| Max. Pulse Discharge Current | 200 A |
| Discharge Cut-off Voltage | 11.2 V |
| Max. Continuous Charge Current | 100 A |
| Max. Pulse Charge Current | 200 A |
| Weight | 9 kg |
| Dimensions (open) | 235 x 197 x 160 mm |
