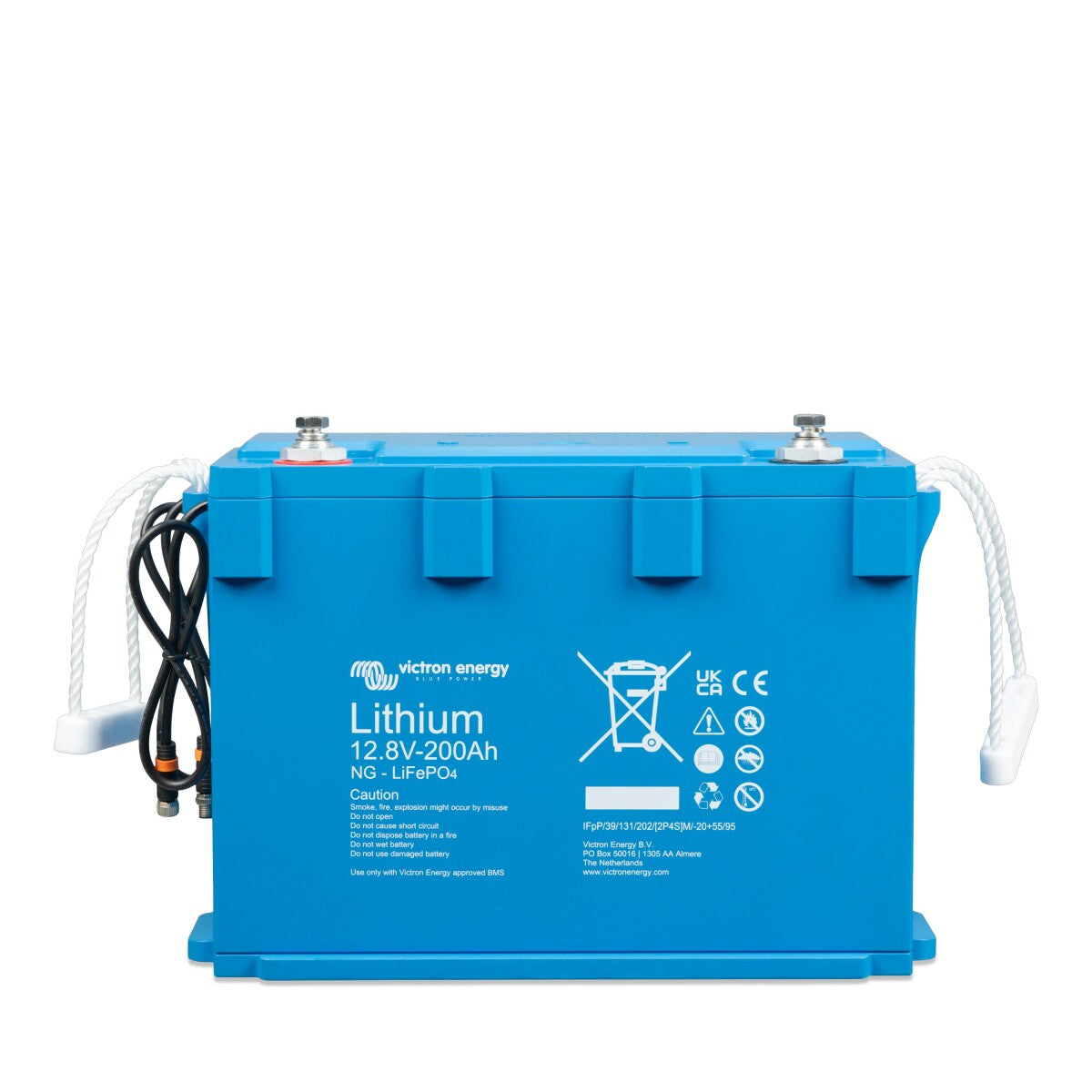

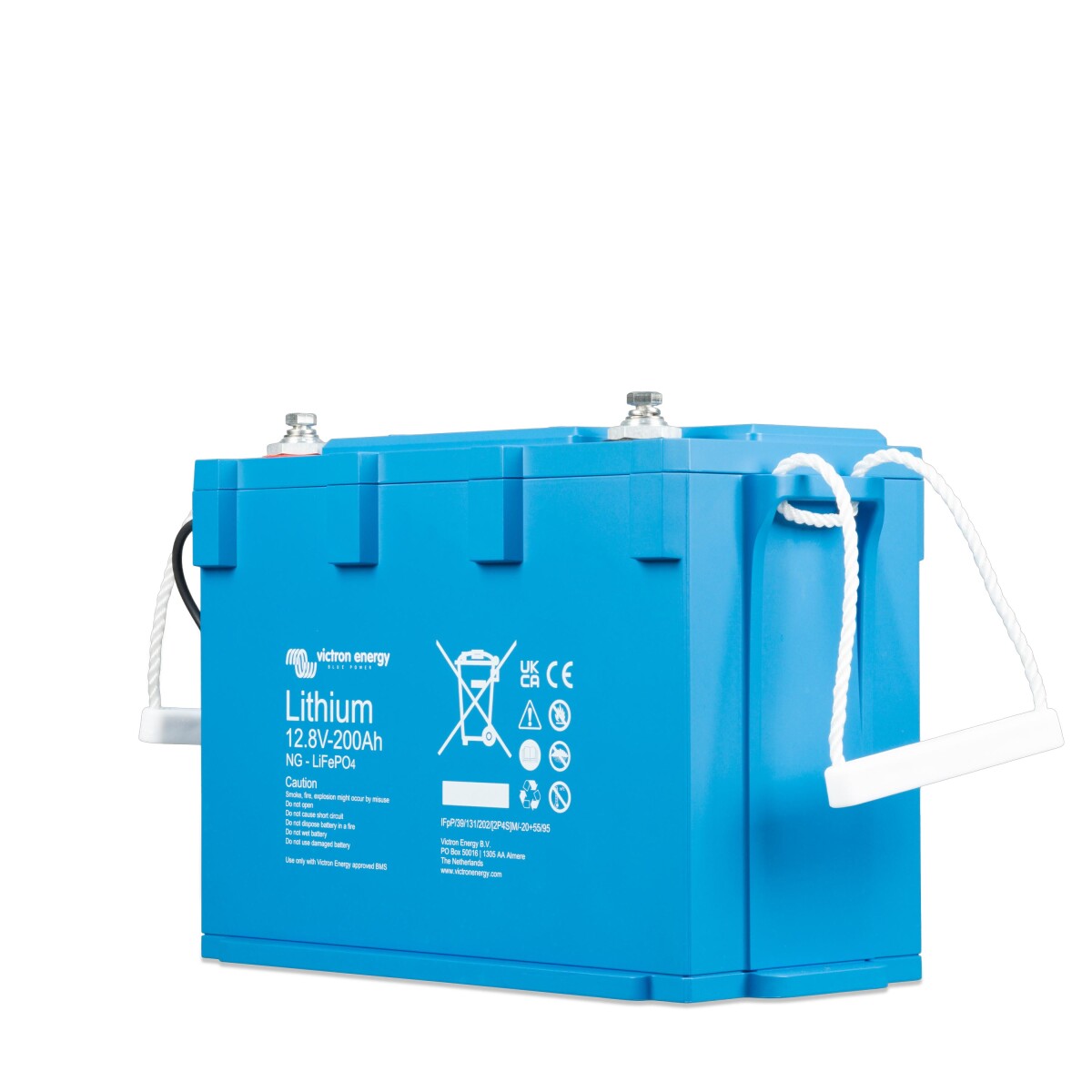

Victron Lithium-NG Battery 200 Ah 12.8 V BMS Integrated Shunt Next Generation

Victron Lithium-NG Battery 200 Ah 12.8 V – Next Generation with Integrated Shunt

The Victron Lithium-NG Battery 200 Ah 12.8 V belongs to the latest generation of LiFePO4 batteries, combining high efficiency, safety, and flexibility. Thanks to the integrated shunt, you receive precise information on the state of charge and benefit from a long service life – even with intensive use.

Technical Key Data at a Glance

• Nominal voltage: 12.8 V
• Capacity: 200 Ah / 2,560 Wh
• Round-trip efficiency: 92 %
• Max. continuous charge current: 200 A
• Protection class: IP65
• Dimensions: 235 × 341 × 160 mm
• Weight: 19 kg
• Life cycles: up to 5000 at 50% depth of discharge

Your Advantages with the NG Series

• Integrated shunt for precise state-of-charge calculation
• Increased IP protection class – dust-tight & water-jet protected
• High energy density with compact design
• Long service life due to advanced cell technology
• Temperature stability for reliable operation even under extreme conditions
• Low self-discharge of max. 2% per month

Intelligent Battery Management for Maximum Safety

The battery features an integrated BTV system that monitors each individual cell, balances voltages, and transmits data to external Victron BMS (Lynx Smart BMS NG 500 A / 1000 A). The BMS automatically detects the system voltage and the number of connected batteries, optimizing energy management.

Flexible Integration into Your Energy System

Whether in a motorhome, on a boat, or in off-grid systems – the Lithium-NG battery can be used flexibly. You can use it in series or parallel connection, or combine both. The maximum size of a single bank is up to 385 kWh – a crucial advantage for larger systems.

Easy Control & Full Management

Setup is straightforward via the VictronConnect app, a GX device, or the VRM portal. All battery parameters such as cell status, voltage, current, and temperature can be monitored in real-time. In addition, firmware updates are automatically rolled out via the BMS – so your system always remains up to date.

Safety First

• Pre-alarm for cell voltage below 3.0 V
• Load disconnection for cell voltage below 2.8 V
• Charge interruption for overvoltage (from 3.6 V) or critical temperature

Powerful Battery for the Highest Demands

With the Victron Lithium-NG 200Ah battery, you are investing in modern storage technology that offers the highest reliability, safety, and flexibility. Ideal for anyone who wants to design their energy system efficiently, durably, and future-proof.
