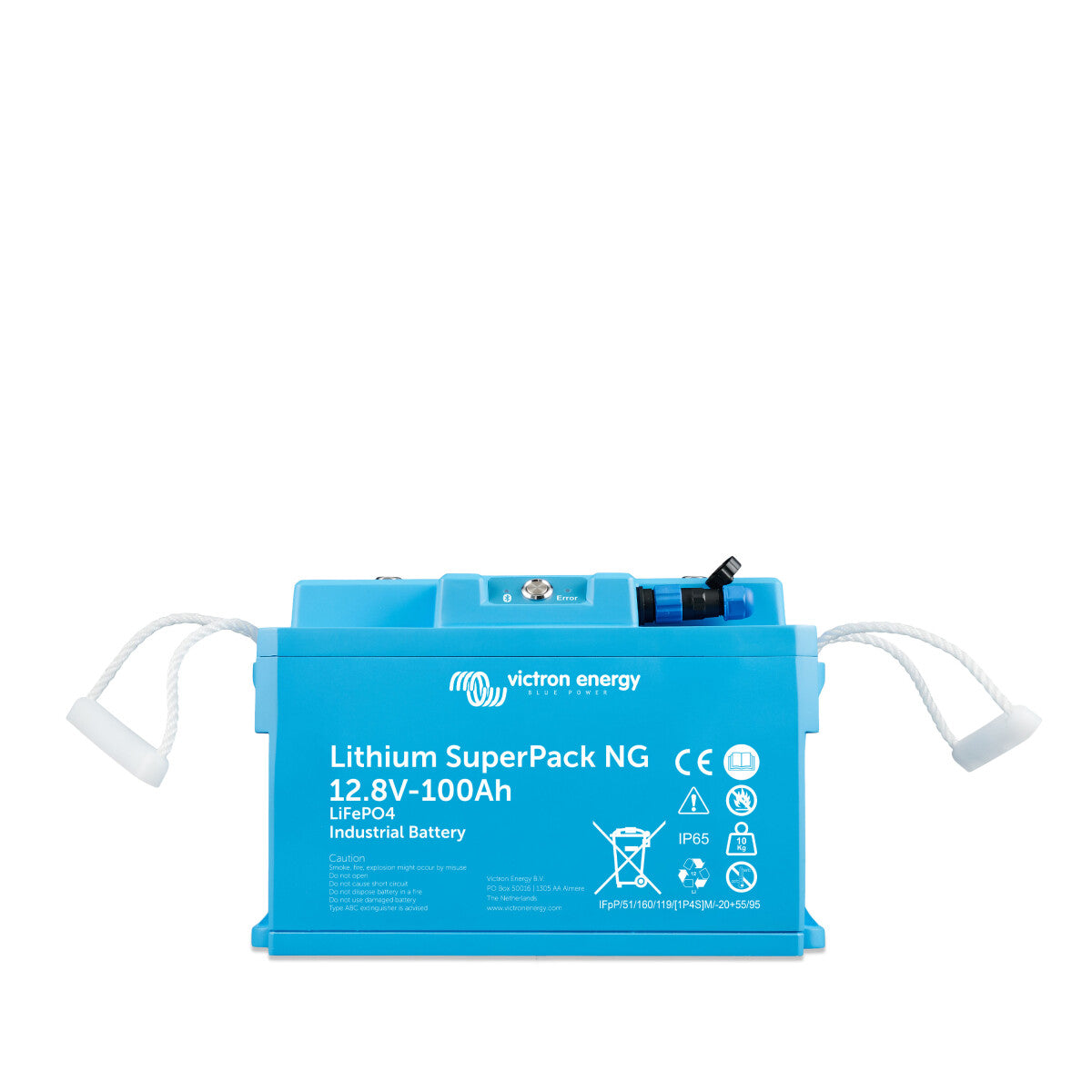

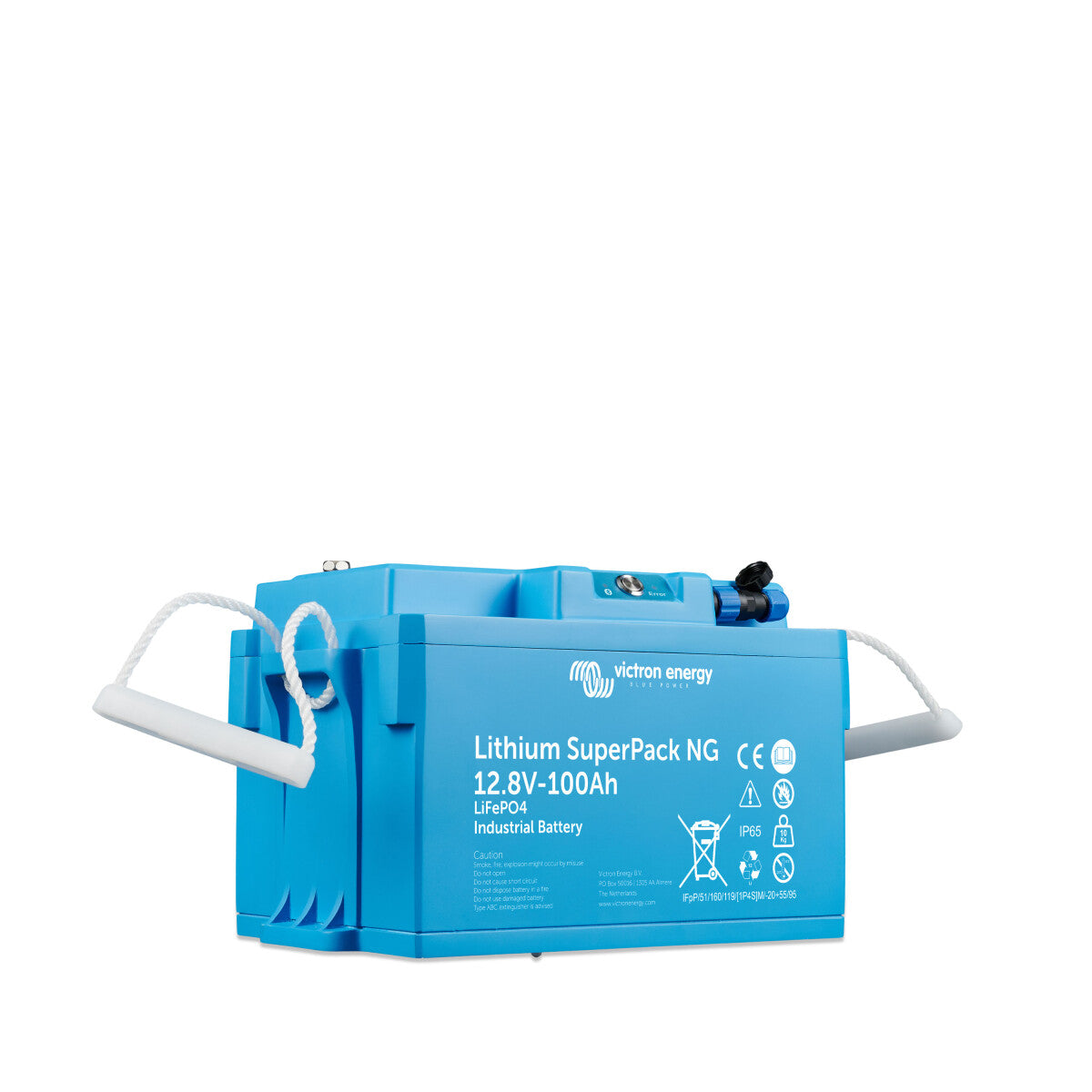

Victron Lithium SuperPack 12.8V/100Ah NG

Victron Lithium SuperPack NG 12.8 V / 100 Ah – Plug-&-Play LiFePO₄ with Heating, Bluetooth, and High Inverter Capability

The Victron Lithium SuperPack NG 12.8 V / 100 Ah is a new generation LiFePO₄ battery that makes the switch from lead to lithium particularly easy: BMS is integrated (no external BMS needed), you get 1280 Wh of usable energy, and you can monitor the status via Bluetooth in the VictronConnect App. Additionally, it offers strong practical features such as integrated self-heating for reliable charging in cold weather (down to -30 °C), 100 A continuous discharge (1C), and up to 200 A for short peak loads – ideal when an inverter briefly draws a lot of power at startup.

From "Install, Connect, Done" to the NG Version with Winter and Smart Extras

The SuperPack series stands for an uncomplicated drop-in solution. The NG version now includes technology that significantly simplifies everyday use: you not only get lithium performance but also functions that avoid a lot of trouble, especially in mobile systems – particularly during winter operation, downtime, and fluctuating loads.

Integrated Self-Heating: Charging at Sub-Zero Temperatures, Without DIY Solutions

A typical lithium issue is charging in freezing conditions. The SuperPack NG solves this with an integrated heating function that brings and keeps the cells within a safe temperature range.

• Charger Mode (Standard): The heating is powered via the charger connection and automatically activates if the cell temperature drops below 0 °C during charging.
• Automatic Mode: The battery can power the heating from its own energy. If the State of Charge (SoC) falls below a threshold, the heating is switched off to prevent deep discharge.

High Power Output: 1C Continuous Current for Real-World Loads

The SuperPack NG 12.8/100 provides 100 A continuously (1C) and can deliver up to 200 A as a peak load. This makes it an excellent base for consumers that require high currents for a short time when switched on.

Physical On/Off Switch: Clean Shutdown, Without Disconnection

For extended periods of inactivity (e.g., winter storage), the mechanical on/off switch is particularly practical: you can physically deactivate the battery without disconnecting terminals. This reduces unwanted quiescent currents; self-discharge remains low (specified under 3% per month).

EFS Interface (External Feedback Signal): Useful for Alarms and Load Shedding

Via an M12 connector, the battery provides an EFS signal. You can use this to, for example, activate a warning light or an audible alarm, or shed non-essential loads via a relay.

Integrated BMS: Protection Runs in the Background

The internal BMS continuously monitors the battery and automatically protects against, among other things, deep discharge, cell imbalance (balancing), and short circuit/overcurrent.

Your Advantages at a Glance

• 12.8 V / 100 Ah (1,280 Wh) usable LiFePO₄ energy
• Plug & Play thanks to integrated BMS – no external BMS required
• Self-heating for charging in cold weather, usable down to -30 °C
• Bluetooth + VictronConnect App: Monitoring (SoC) and configuration
• 100 A continuous discharge (1C), up to 200 A for peak loads
• BCI Group 49 height dimension: facilitates replacement in standard battery compartments
• Mechanical On/Off switch: ideal for downtime/winter storage
• EFS interface: alarm, status display, or load shedding possible
• Multi-stage protection functions including balancing and short-circuit protection

If you are looking for a 12V lithium battery that significantly simplifies the switch from lead and combines winter suitability, app monitoring, and high load capacity in one compact package, the Victron Lithium SuperPack NG 12.8 V / 100 Ah is a very well-rounded solution.

Documents & Downloads

• Datasheet Victron SuperPack NG
• Manual Victron SuperPack NG
