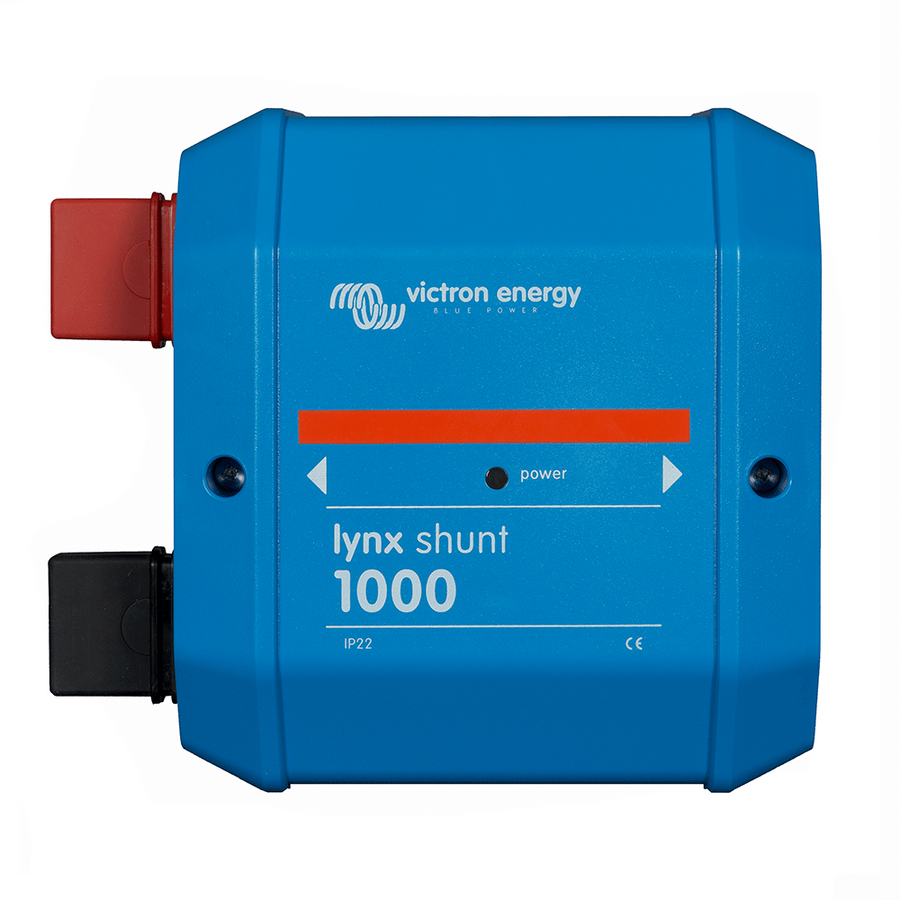

Victron Lynx Shunt VE.Can (M10)

Victron Lynx Shunt VE.Can (M10) – Precise Battery Control for Your Energy System

The Victron Lynx Shunt VE.Can helps you to monitor your battery's state of charge with absolute reliability. The intelligent 1,000 A shunt is part of the modular Lynx distribution system and offers integrated battery monitoring, a provision for a CNN fuse, and easy integration into your GX system, such as the Cerbo GX.

Technical Key Data at a Glance

• 1000 A Shunt
• CNN fuse 325 A / 80 V
• integrated battery monitor
• VE.Can interface
• Part of the modular Lynx distribution system

Structure & Functionality

The Victron Lynx Shunt VE.Can combines mechanical distribution and intelligent electronics. The positive busbar provides space for a CNN fuse, while the precise shunt is located on the negative busbar. The integrated battery monitor continuously measures charge and discharge currents, SOC, remaining capacity, and historical consumption data.

Communication via VE.Can

The shunt transmits all data to GX devices such as Cerbo GX, CCGX, or VGX. NMEA2000 systems are also supported. The devices serve as a display and configuration unit for the integrated monitoring electronics.

Integration into the Lynx Distribution System

The Lynx Shunt VE.Can is fully compatible with the modules of the Victron Lynx Series, including Lynx Power In, Lynx Distributor, and Lynx Smart BMS. The modular structure facilitates expansion and maintenance.

Your Advantages

• exact real-time battery monitoring
• modularly expandable
• easy setup via GX devices
• fast diagnosis thanks to clear measurement data
• compact & perfectly integrable into Lynx systems

Ideal for Your Reliable Energy Management

The Victron Lynx Shunt VE.Can is a powerful and flexible solution for battery monitoring. In off-grid, marine, or vehicle installations, it ensures maximum transparency and safety.

Documents & Downloads

• Datasheet Lynx Shunt VE.Can
• Manual Lynx Shunt VE.Can
