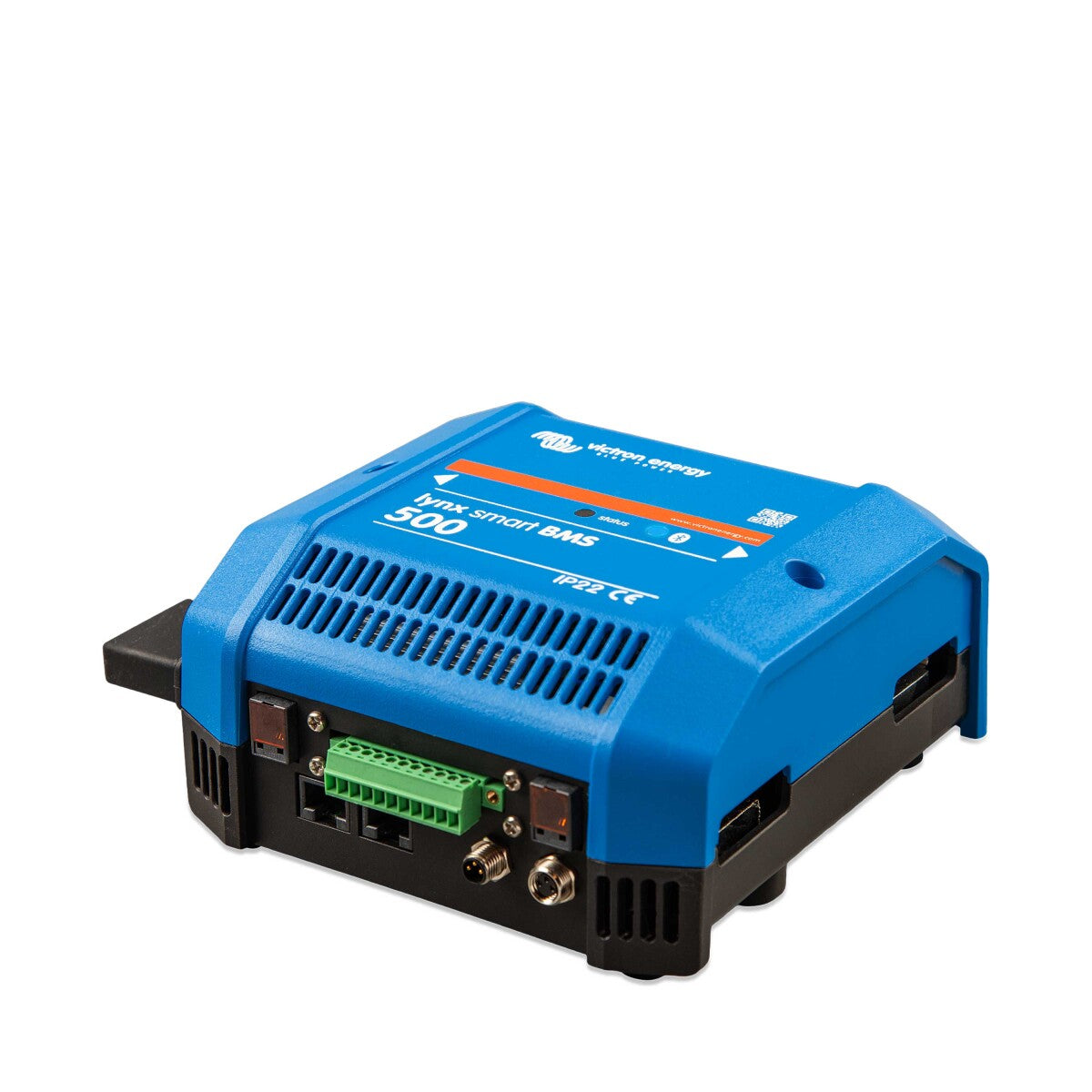

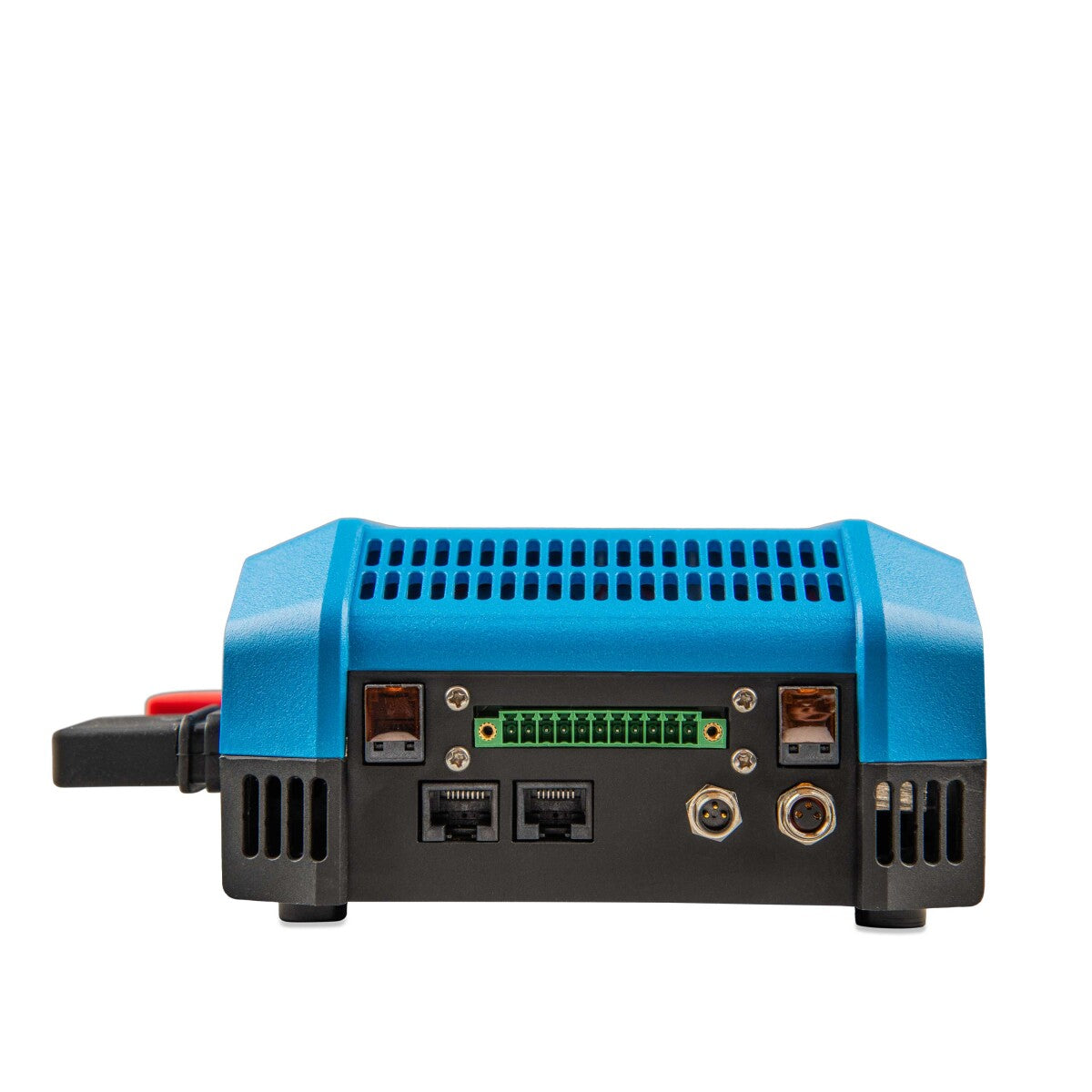

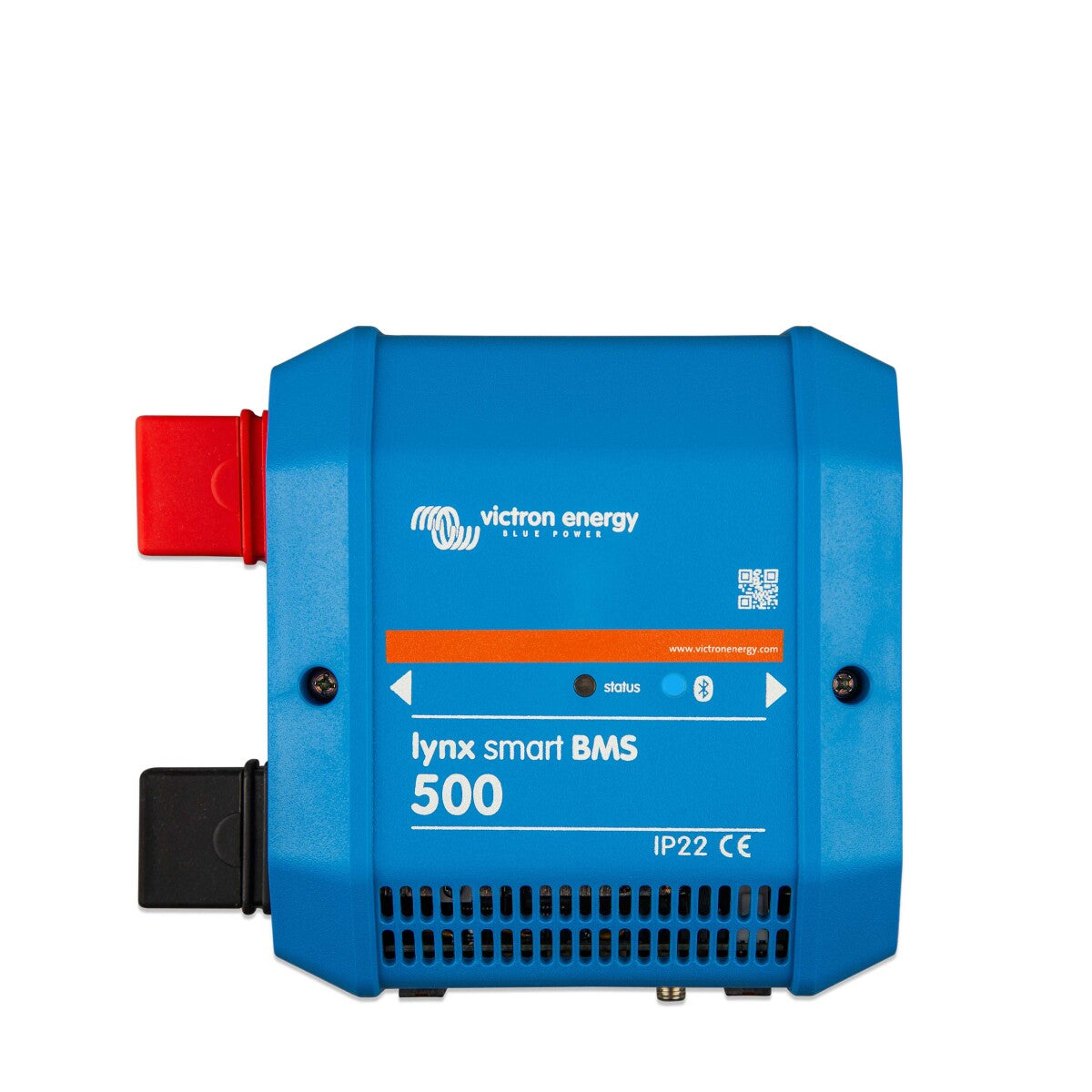

Victron Lynx Smart BMS 500 (M10)

Victron Lynx Smart BMS 500 (M10) – Intelligent Battery Management for Lithium NG Systems

The Victron Lynx Smart BMS 500 (M10) is a highly advanced battery management system for Victron Lithium NG batteries, supporting up to 50 batteries simultaneously. It ensures reliable operation through comprehensive protection and monitoring functions – ideal for demanding applications in RVs, boats, and off-grid systems.

Maximum Control with Highest Safety

• Continuous current: 500 A | Peak current: 600 A (5 min)
• System voltage: 12 V, 24 V, 48 V | Voltage range: 9–58 V
• Integrated 500 A contactor – as a remote-controlled main switch
• Pre-charge circuit – protects capacitive loads from inrush current peaks
• Bluetooth, VE.Can, NMEA 2000 – for comprehensive communication and integration
• Programmable relay – e.g., for controlling an alternator
• AUX output for critical loads
• Monitoring of Lynx Distributor fuses with app alerts

Efficient and Networkable

With an efficiency of over 87% and low self-consumption, the system operates particularly efficiently. The remote-controlled on/off connection replaces a high-current switch and can be used, for example, with an engine run/stop switch. The DVCC regulation ensures coordinated charging and discharging processes within the system.

Parallel Connection Possible

Up to five units can be paralleled – for more power and capacity in large lithium systems.

Technical Data at a Glance:

• System voltage: 12/24/48 V
• Voltage range: 9–58 V DC
• Continuous/peak current: 500 A / 600 A (5 min)
• Efficiency: >87%
• Self-consumption: 0.8 mA (standby), approx. 2.6 W (active)
• Protection class: IP22 | Temperature range: –40 to +60 °C
• Communication: Bluetooth, VE.Can, NMEA 2000
• Monitoring: Cell voltage, temperature, fuses

Areas of Application:

• RVs & Caravans
• Boat systems & Yachts
• Off-Grid & autonomous systems
• Hybrid systems with solar & generator

The Victron Lynx Smart BMS 500 (M10) is an indispensable, scalable, and fully integrable system for the safe and efficient management of modern lithium batteries in various application areas.

Documents & Downloads

• Data Sheet Lynx Smart BMS 500
• Manual Lynx Smart BMS 500
