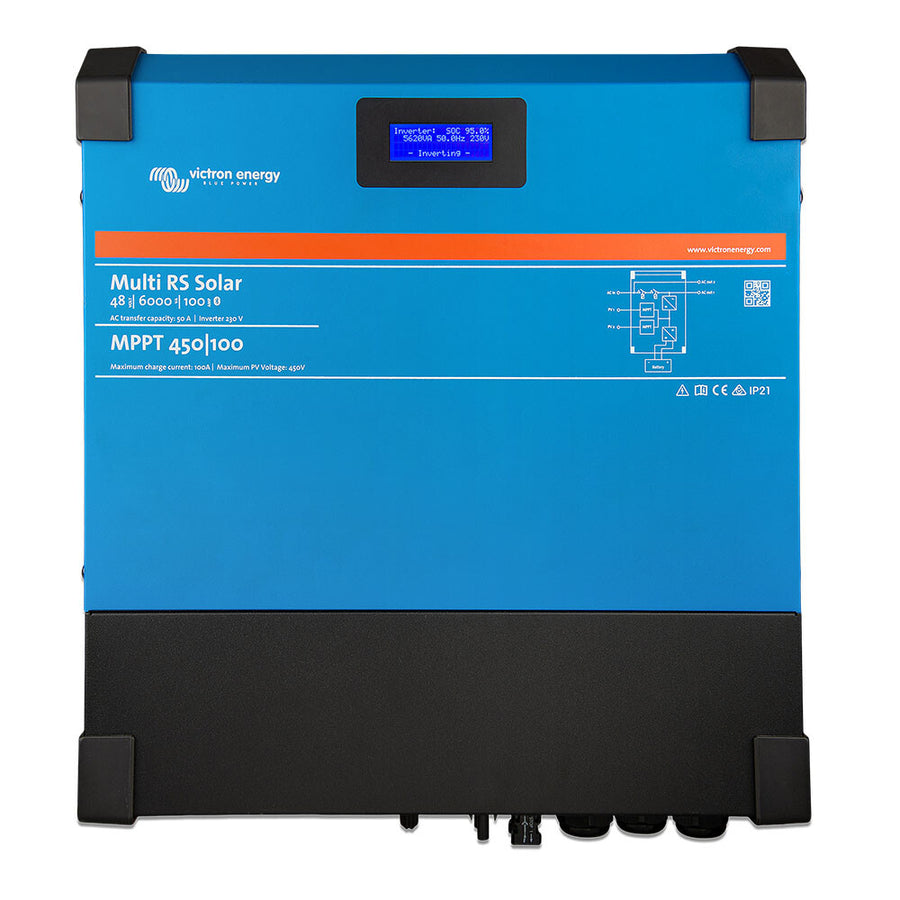

Victron Multi RS Solar 48/6000/100-450/100

Victron Multi RS Solar 48/6000/100-450/810 230V

Hybrid Inverter/Charger
The Multi RS Solar 48/6000 is a 48 V & 6 kVA inverter/charger with a 450 VDC 4 kWp PV input.

Combination of Inverter, AC Charger, and Solar MPPT
The inverter produces a perfect sine wave capable of powering high-power equipment. It also works bidirectionally, meaning it charges the battery or converts excess solar power or AC power when needed.

Wide MPPT Voltage Range
80 - 450 VDC, with a PV startup voltage of 120 VDC.

Lightweight, Efficient, and Quiet
Thanks to high-frequency technology and a new design, this powerful inverter weighs only 11 kg. Furthermore, it has excellent efficiency, low standby power, and very quiet operation.

Display, Bluetooth, and VictronConnect App
The display reads battery, inverter, and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device via the VictronConnect app.

Expandable PV Capacity, both AC and DC coupled
The integrated 4 kWp PV capacity can be expanded by adding solar chargers to the system, for example, our Smart Solar chargers, including the Smart Solar RS models. When connected to a VE.Can network, all battery charging is done simultaneously and in a coordinated manner.
Alternatively, the PV capacity can be expanded by installing PV inverters whose output power is automatically controlled by the integrated frequency shift control.

Interfaces
Ve.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O Connections
Programmable relay, temperature sensor, and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

Documents & Downloads

• Datasheet
• Manual
