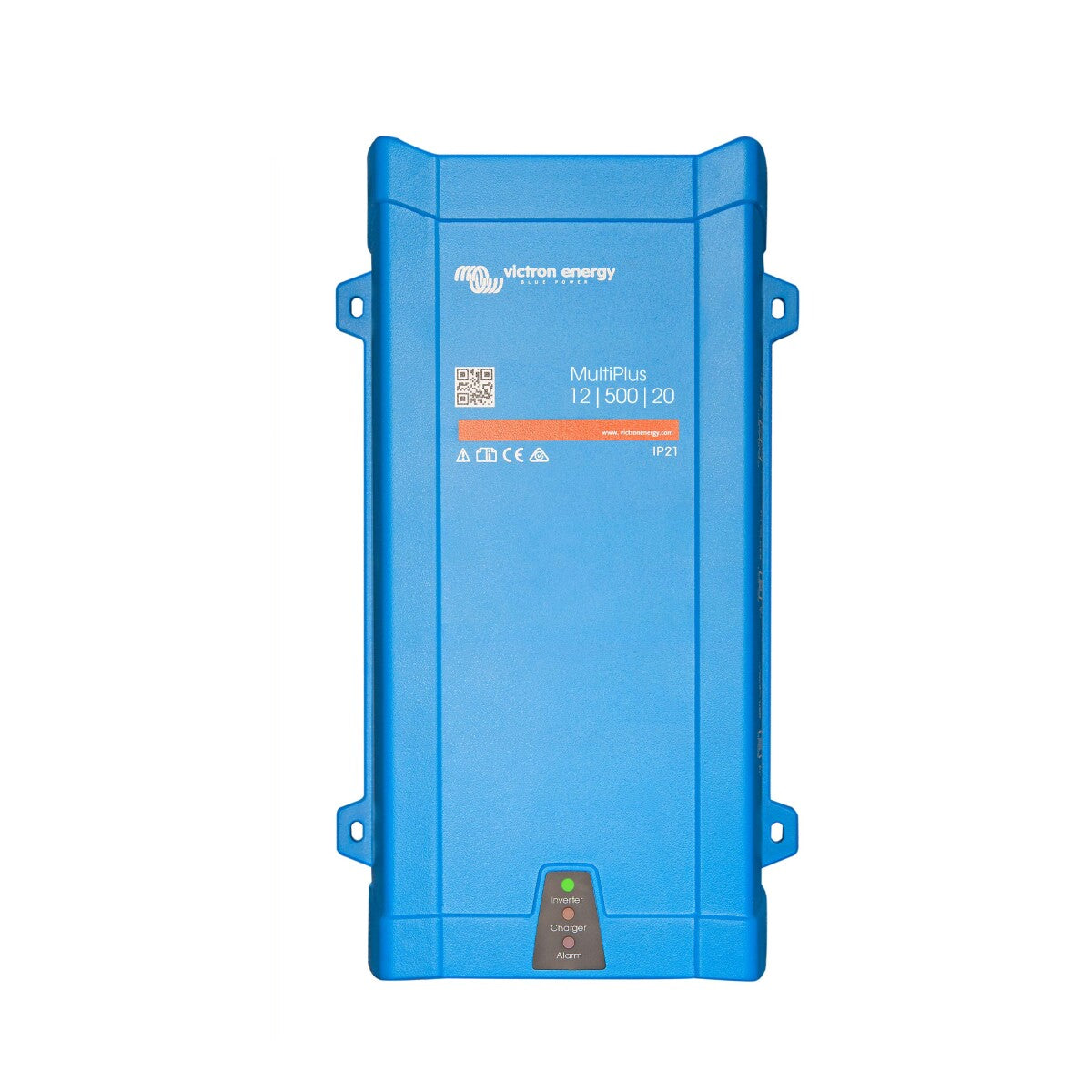

Victron MultiPlus 12/500/20-16 120V VE.Bus

Victron MultiPlus 12/500/20-16 120V VE.Bus – Compact Power for Reliable Energy Supply

Compact Power with Versatile Applications

With a continuous power of 500W and a peak power of 900W, the MultiPlus 12/500/20-16 provides the necessary energy to safely and efficiently operate a variety of devices. Whether in mobile applications, stationary systems, or as an uninterruptible power supply (UPS) – this inverter is the perfect choice for diverse areas of application.

Perfect Sine Wave Voltage for Sensitive Devices

The integrated sine wave inverter ensures that your 12V DC battery delivers a clean and stable 230V AC 50Hz sine wave voltage. This makes the Multi 500 also ideal for operating sensitive electronic devices, such as computers, power supplies, or measurement technology.

Seamless Switching Thanks to Transfer Switch

In the event of a power outage or when a generator is shut down, the MultiPlus automatically takes over the power supply. This switchover occurs in less than 20 milliseconds, so your connected devices can continue to operate without interruption.

Intelligent Battery Management with 4-Stage Charger

The integrated 20A charger uses an adaptive, microprocessor-controlled 4-stage charging characteristic. It dynamically adapts to the needs of your battery and ensures optimal charging, which extends its lifespan. With functions such as temperature compensation and a battery-saving mode, battery aging is minimized.

Programmable Relay for Maximum Flexibility

The MultiPlus 12/500/20-16 features a programmable relay, which is configured as an alarm relay by default. However, it can be flexibly adapted for a variety of functions, such as starting a generator when needed.

Easy Control and Remote Operation

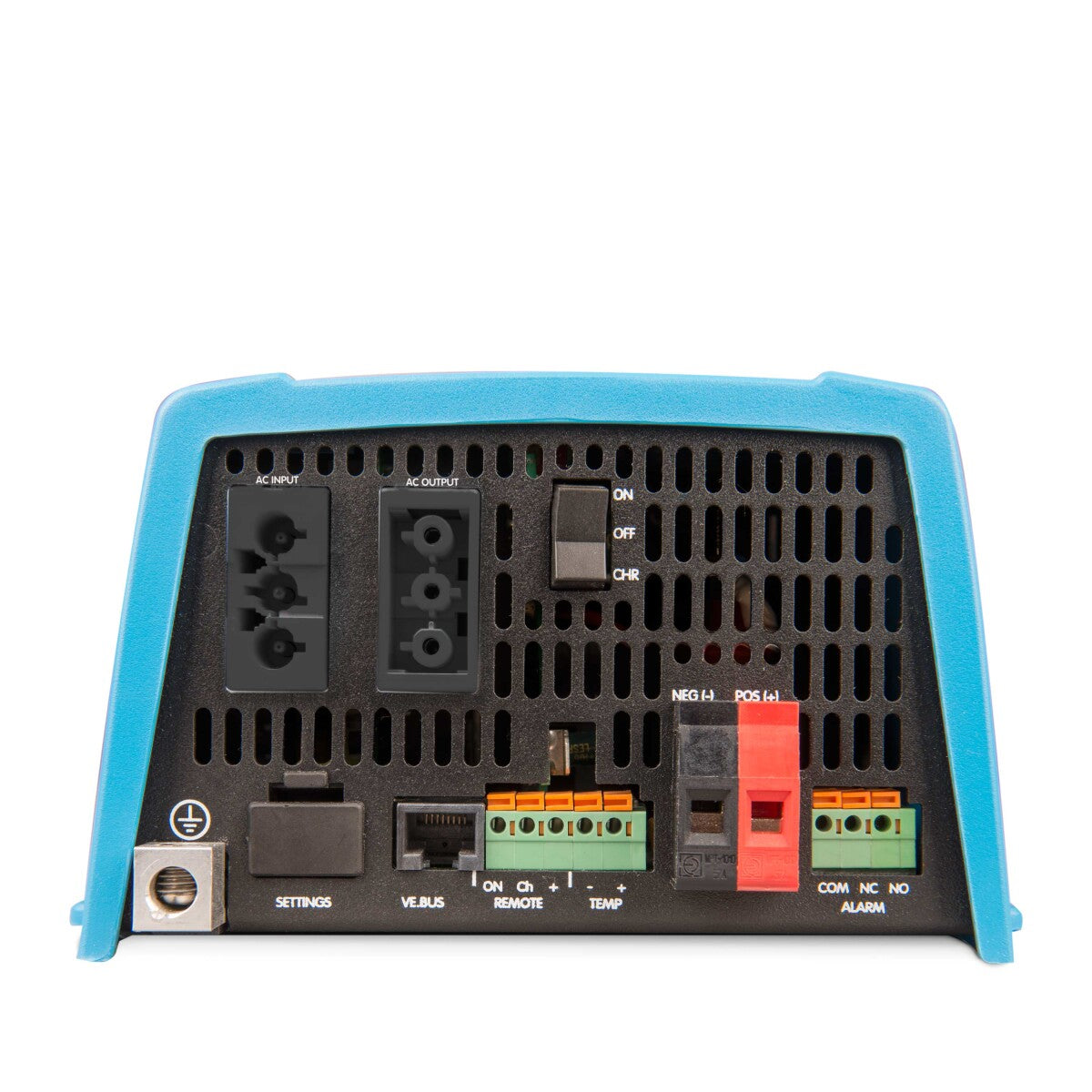

The device is configured via a 3-position switch directly on the unit, which allows you to set the maximum charging current, among other things. Integration into a remote monitoring system is also possible via the VE.Bus connection.

Backup System for Maximum Safety

The Multi 500 is suitable for both grid-connected and independent energy systems. In combination with special software for grid failure detection, it offers a reliable solution for continuous power supply, even in the event of grid failures.

Documents & Downloads

• Datasheet MultiPlus 12/500 20-16 120
• Manual MultiPlus 12/500 20-16 120
