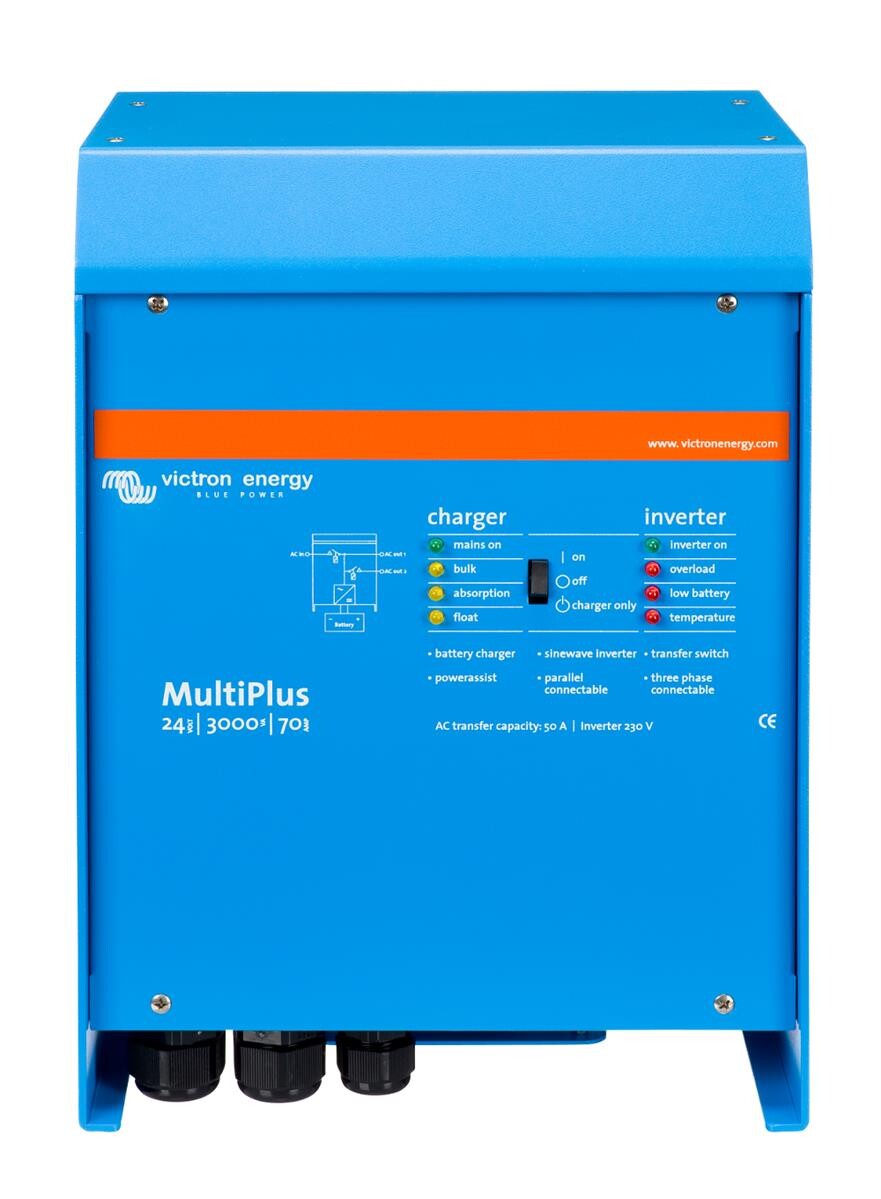

Victron MultiPlus 24/3000/70-16 Inverter 2400W and Charger 70A

Innovative Combination Device from Victron: Sinus Inverter and 24 V Battery Charger in One!

The Multiplus 24/3000/70 from Victron is a combination device consisting of a 2400 W sinus inverter and a battery charger with 24 V. The smartly integrated battery charger provides an impressive 70A, allowing batteries to be charged extremely quickly when shore/grid power is available. The sinus voltage converter integrated into the Multiplus transforms the 24V DC current from the battery into a 230 V AC voltage. Thanks to the true sine wave, the quality of the voltage is perfectly suited even for sensitive electronic devices.

Versatile Use

The MultiPlus is a powerful true sine wave inverter, an advanced battery charger that uses adaptive charging technology, and a high-speed AC transfer switch in a single compact enclosure. Models are available for the range of 800 VA to 5000 VA per module.

Unique PowerAssist Feature

The MultiPlus prevents the overloading of a limited AC source. First, the battery charging process is automatically reduced to protect against overload. Next, the power of a generator or shore power supply is boosted with energy from the battery.

Uninterruptible AC Power (UPS Function)

In the event of a grid failure or an interruption of shore power or the onboard generator, the Multi's inverter automatically switches on and supplies power to the connected consumers. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.

Virtually Unlimited Power Through Parallel Operation

Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our datasheets for which models are suitable for parallel operation, three-phase, and split-phase operation.

Local Monitoring and ControlRemote Monitoring and ControlRemote Configuration:
Technical Data

Item Number	300-3045
AC Continuous Power (W)	2400W
Voltage Regulation	24V DC / 230V AC
No-Load Self-Consumption	20W
No-Load Self-Consumption in Eco Mode	10W
Operating Ambient Temperature Range	-40°C to 65°C
Number of Battery Outputs	2
Battery Voltage	24V
IP Protection Rating	IP21
Output Voltage (V)	230V AC / Alternating Current
Current Quality	True Sine Wave
AC Output Frequency Range (Hz)	50Hz / +-0.1Hz
Manufacturer Part Number	PMP243020001
Product Type	Powerful true sine wave inverter and battery charger with adaptive charging technology in one device. In addition, MultiPlus devices have a transfer switch.
Transfer Switch	1
Manufacturer	Victron Energy
Weight	18 kg
Dimensions	362x258x218
Warranty	5 Years Manufacturer's Warranty
Transfer Switch Switching Capacity (A)	16A

Documents & Downloads

• Datasheet
• Manual
