• Victron MultiPlus 24/500/10-16 230V VE.Bus
1 1

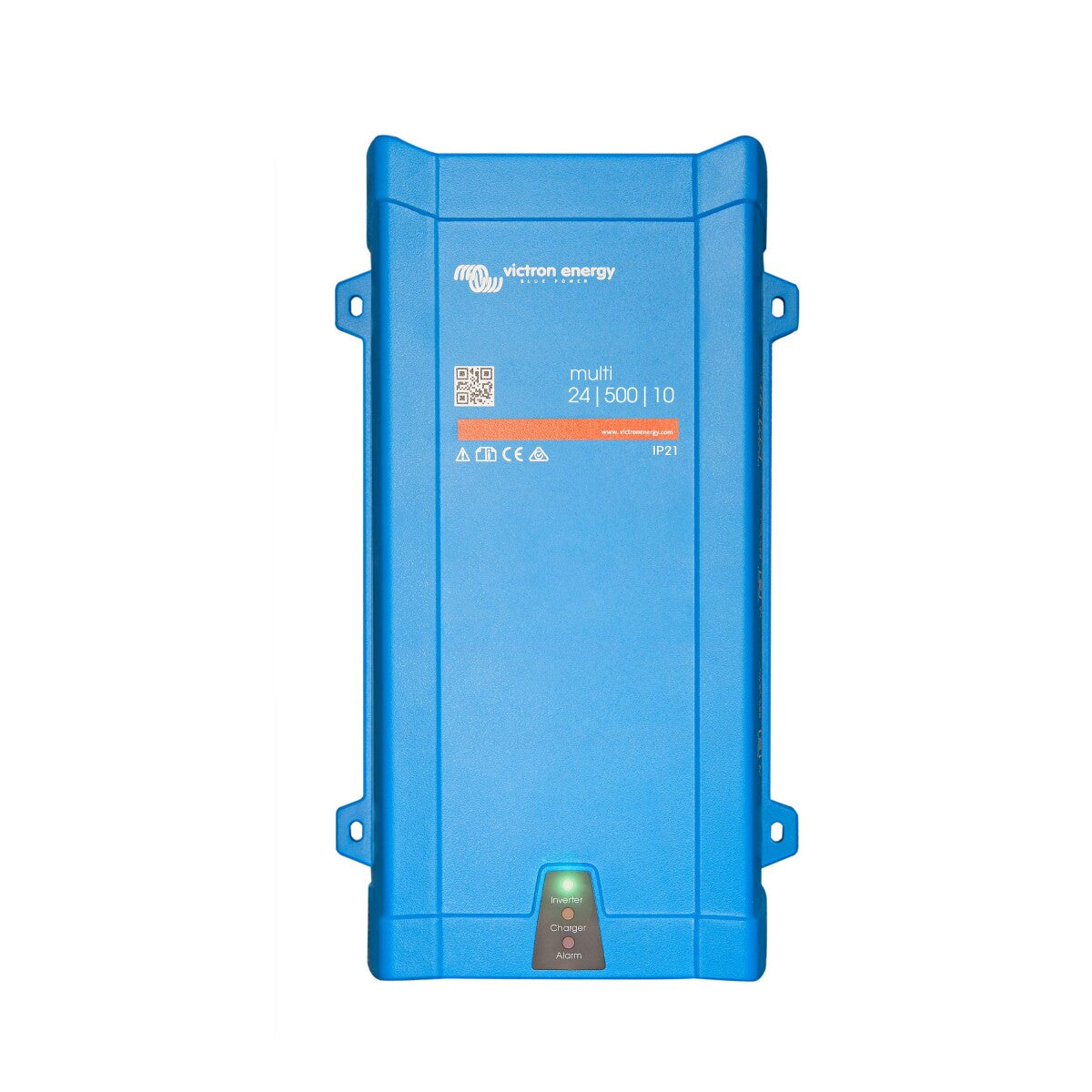

Victron MultiPlus 24/500/10-16 230V VE.Bus

Victron MultiPlus 24/500/10-16 230V VE.Bus

WS300-3350

€447,49 EUR
€447,49 EUR
Sale Bald verfügbar
Taxes included. Shipping calculated at checkout.

Victron MultiPlus 24/500/10-16 230V VE.Bus: A Multi-Talented Device for Your Energy Management

The Victron MultiPlus combines the functions of a high-quality inverter, an advanced battery charger, and a high-speed AC transfer switch in one compact device. This intelligent energy manager is equipped with numerous features that will take your energy system to the next level.

Multifunctionality and Intelligent Control

  • Pure Sine Wave: The inverter ensures a clean and stable power supply.
  • Adaptive Charge Technology: Optimizes battery charging and extends battery life.
  • High-Speed AC Transfer Switch: Guarantees an uninterrupted power flow.

Extended Configuration Options

  • Parallel and 3-Phase Operation: Allows for the connection of up to six MultiPlus devices for increased power demand or the configuration of a three-phase system.
  • PowerControl: Prevents overloading of generators or shore power connections through intelligent power control.
  • PowerAssist: Supports weak power sources with additional power from the battery when needed.

Efficient and Adaptive Charging

  • Four-Stage Adaptive Charging Process: Dynamically adjusts the charging process to the battery's condition.
  • Second Battery Charging: Features an independent float charge output for the starter battery.

Energy Efficiency and Control

  • High Inrush Power: Ideal for starting loads with high inrush currents.
  • Search Mode: Reduces standby power consumption by approximately 70% by temporarily switching off the inverter during low loads.
  • Programmable Relay: Can be configured for various control and alarm tasks.

Easy Handling and Configuration

  • Remote On/Off: Allows for simple operation via a three-pole plug.
  • Local and Remote Configuration: Use the DIP switches for basic settings or VEConfig and the VE.Bus Smart Dongle for advanced configurations.
  • Cerbo GX or other GX Products: Offers the possibility for remote monitoring and control via Victron Remote Management (VRM).





Technical Data Victron Multiplus 24/500/10-16 230V
Power 430 W
Peak Power 900 W
Output Voltage 230 V
Input Voltage Range 19 - 33 V
Efficiency 91 %
Protection Class IP21
Weight 4.4 kg
Dimensions 311 x 182 x 100 mm
