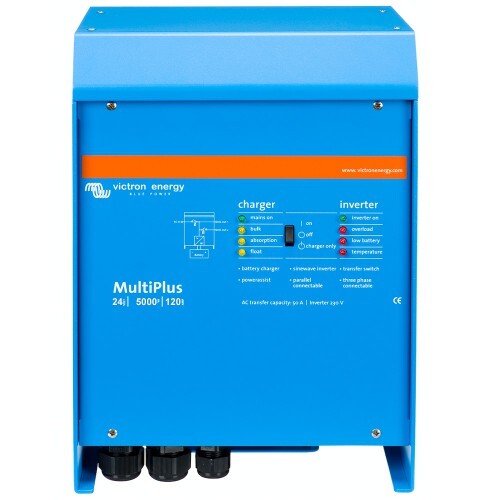

Victron MultiPlus 24/5000/120-100 Inverter 4000W and Charger 120A

Innovative Combination Device from Victron: Sine Wave Inverter and 24 V Battery Charger in One!

The Multiplus Compact 24/5000/120 from Victron is a combination device consisting of a 4000 W sine wave inverter and a battery charger. The smartly integrated battery charger delivers an impressive 120A, allowing batteries to be charged extremely quickly when shore/grid power is available. The sine wave inverter integrated into the Multiplus transforms the 24V DC from the battery into 230 V AC. Thanks to the true sine wave, the quality of the voltage is perfectly suited for sensitive electronic devices.

Versatile Use

The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger that utilizes adaptive charging technology, and a high-speed AC transfer switch in a single compact enclosure. Models are available in the range of 800 VA to 5000 VA per module.

Unique PowerAssist Feature

The MultiPlus prevents overloading of a limited AC source. First, the battery charging process is automatically reduced to protect against overload. Next, the power of a generator or shore power supply is boosted with energy from the battery.

Uninterruptible AC (UPS Function)

In the event of a grid failure or interruption of shore power or the onboard generator, the Multi's inverter automatically switches on and takes over the supply of connected loads. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed.

Practically Unlimited Power Through Parallel Connection

Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our datasheets to see which models are suitable for parallel operation, three-phase, and split-phase operation.

Local Monitoring and Control

Several options are available: Battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and Control

If systems with a Color Control Panel are connected to Ethernet, they can be accessed and settings can be changed remotely.

Remote Configuration:

Victron Ethernet Remote, Venus GX and the Color Control Panel. Data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.

Technical Data

Article number	300-3047
AC Continuous Power (W)	4000W
Voltage Regulation	24V DC / 230V AC
No-Load Self-Consumption	30W
No-Load Self-Consumption in Power Saving Mode	10W
Operating Ambient Temperature Range	-40°C to 65°C
Number of Battery Outputs	2
Battery Voltage	24V
Protection Class IP	IP21
Output Voltage (V)	230V AC / Alternating Current
Current Quality	True Sine Wave
AC Output Frequency Range (Hz)	50Hz / +-0.1Hz
Manufacturer Part Number	PMP245021010
Product Type	Powerful pure sine wave inverter and battery charger with adaptive charging technology in one device. In addition, MultiPlus devices have a transfer switch.
Transfer Switch	1
Manufacturer	Victron Energy
Weight	30 kg
Dimensions	375x214x110
Warranty	5 years manufacturer's warranty
Transfer Switch Switching Capacity (A)	100A

Documents & Downloads

• Datasheet
• Manual
