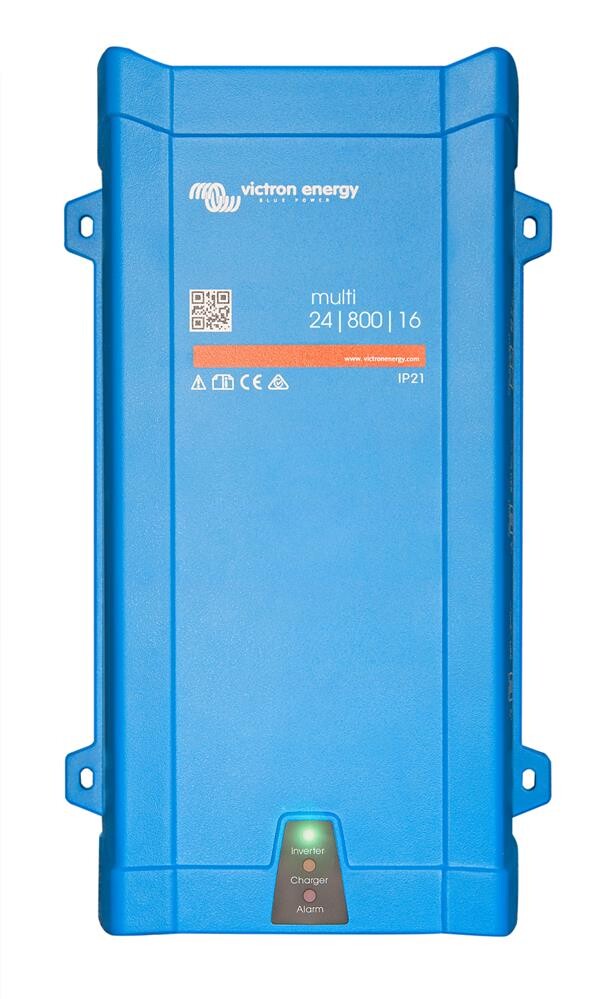

Victron MultiPlus 24/800/16 Inverter 700W and 24V Charger 16A

Innovative Combination Device from Victron: Sine Wave Inverter and 12 V Battery Charger in One!

The Multiplus 24/800/16 from Victron is a combination device consisting of a 700 W sine wave inverter and a battery charger. The smartly integrated battery charger delivers an impressive 16 A, allowing batteries to be charged extremely quickly when shore/grid power is available. The sine wave inverter integrated into the Multiplus transforms the 24V DC from the battery into 230 V AC. Thanks to the true sine wave, the voltage quality is perfectly suitable even for sensitive electronic devices.

Versatile Use

The MultiPlus is a powerful true sine wave inverter, an advanced battery charger that uses adaptive charging technology, and a high-speed AC transfer switch in a single compact enclosure. Models are available for the range from 800 VA to 5000 VA per module.

Unique PowerAssist Function

Peak loads often occur only for a limited period. In such a case, the MultiPlus ensures that insufficient shore or generator power is immediately compensated for by energy from the battery. If the load is reduced, i.e., consumers are switched off, the then sufficiently available energy can be used to charge the batteries.

Uninterruptible AC (UPS Function)

In the event of a grid failure or an interruption of shore power or the onboard generator, the Multi's inverter automatically switches on and takes over the supply of the connected consumers. The transfer happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.

Practically Unlimited Power through Parallel Connection

Up to six Multis can be connected in parallel for high power demand. Three-phase or split-phase operation is also possible. Please refer to our datasheets to see which models are suitable for parallel operation, three-phase, and split-phase operation.

PowerControl – Working with Limited Generator Power, Limited Shore or Grid Power (800VA/1200VA).

With the Multi Control remote panel, the maximum grid or generator current that can be drawn can be set. The MultiPlus then takes into account other connected AC consumers and only uses the remaining power for charging. This prevents the generator or shore power connection from being overloaded.

Local Monitoring and Control

Several options are available: battery monitor, Multi Control panel, Ve.Net Blue Power panel, Color Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and Control

If systems with a Color Control panel are connected to Ethernet, they can be accessed and settings can be changed remotely.

Remote Configuration:

Victron Ethernet Remote, Venus GX and the Color Control panel. Data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.

Technical Data

Documents & Downloads

• Datasheet
• Manual
