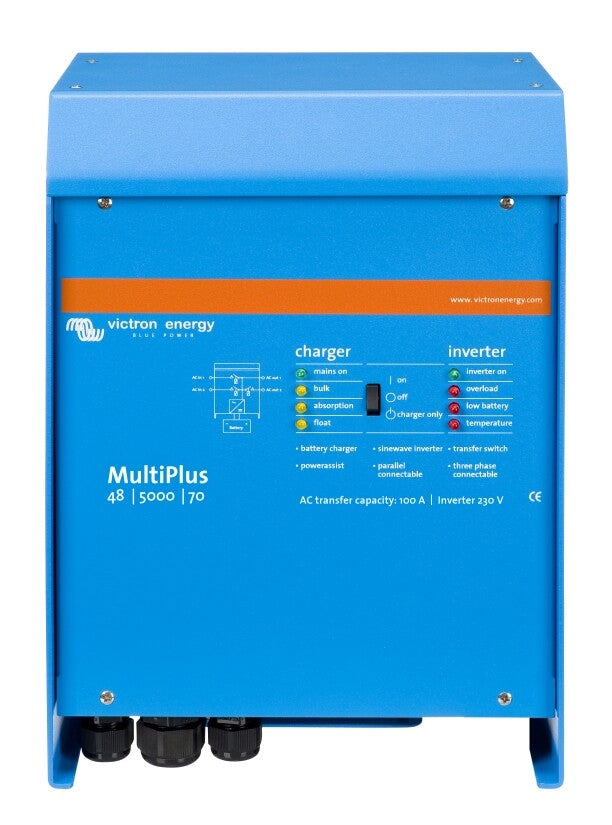

Victron MultiPlus 48/5000/70-100 Inverter 4000W and Charger 48V 70A
Victron MultiPlus 48/5000/70-100 Inverter 4000W and Charger 48V 70A
SKU:WS300-3054
Couldn't load pickup availability
Innovative Combination Device from Victron: Sine Wave Inverter and 48 V Battery Charger in One!
The Multiplus 48/5000/70 from Victron is a combination device consisting of a 4000 W sine wave inverter and a 48 V battery charger. The smartly integrated battery charger provides an impressive 70A, allowing batteries to be charged extremely quickly when shore/grid power is available. The sine wave inverter integrated into the Multiplus transforms the 48V DC from the battery into 230 V AC. Thanks to the true sine wave, the quality of the voltage is perfectly suited for sensitive electronic devices.
Also included: powerful 100 A transfer switch.
Versatile Use
The MultiPlus is a powerful true sine wave inverter, an advanced battery charger using adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Models are available ranging from 800 VA to 5000 VA per module.
Unique PowerAssist Feature
The MultiPlus prevents overloading of a limited AC source. First, the battery charging current is automatically reduced to prevent overload. Next, the power of a generator or shore power supply is boosted with energy from the battery.
Uninterruptible AC Power (UPS Function)
In the event of a grid failure or interruption of shore power or the onboard generator, the Multi's inverter automatically switches on and takes over the supply of connected loads. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.
Virtually Unlimited Power Through Parallel Connection
Up to six Multis can be connected in parallel for high power demand. Three-phase or split-phase operation is also possible. Please refer to our datasheets to see which models are suitable for parallel operation, three-phase, and split-phase operation.
Local Monitoring and Control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).
Remote Monitoring and Control
If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.
Remote Configuration:
Victron Ethernet Remote, Venus GX, and the Color Control Panel. Data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.
Technical Data
| Item Number | 300-3054 |
|---|---|
| AC Continuous Power (W) | 4000W |
| Voltage Regulation | 48V DC / 230V AC |
| No-Load Self-Consumption | 35W |
| No-Load Self-Consumption in Eco Mode | 15W |
| Operating Ambient Temperature Range | -40°C to 65°C |
| Number of Battery Outputs | 1 |
| Battery Voltage | 48V |
| IP Protection Class | IP21 |
| Output Voltage (V) | 230V AC / Alternating Current |
| Current Quality | True Sine Wave |
| AC Output Frequency Range (Hz) | 50Hz / +-0.1Hz |
| Manufacturer Part Number | PMP485021010 |
| Product Type | Powerful true sine wave inverter and battery charger with adaptive charge technology in one device. In addition, MultiPlus devices have a transfer switch. |
| Transfer Switch | 1 |
| Manufacturer | Victron Energy |
| Dimensions | 444x328x240 |
| Weight | 30 kg |
| Warranty | 5 Years Manufacturer's Warranty |
| Transfer Switch Switching Capacity (A) | 100A |
